Vacuum Reservoir HVAC: Service and Repair

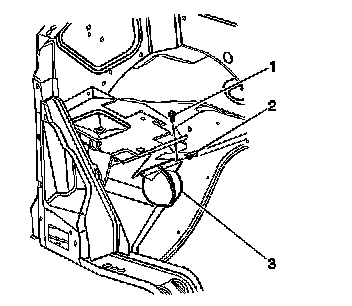

VACUUM TANK REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the vacuum hose from the vacuum tank.
2. Remove the screws (1) from the vacuum tank retainers.
3. Remove the vacuum tank (3).

INSTALLATION PROCEDURE




1. Install the vacuum tank (3).
2. Install the screws (1) to the vacuum tank retainers.

Tighten the screws to 6 N.m (53 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Connect the vacuum hose.
