Interior - Revised Dash Trim Panel Replacement Procedure

Bulletin No.: 06-08-49-006

Date: February 22, 2006

SERVICE MANUAL UPDATE

Subject:

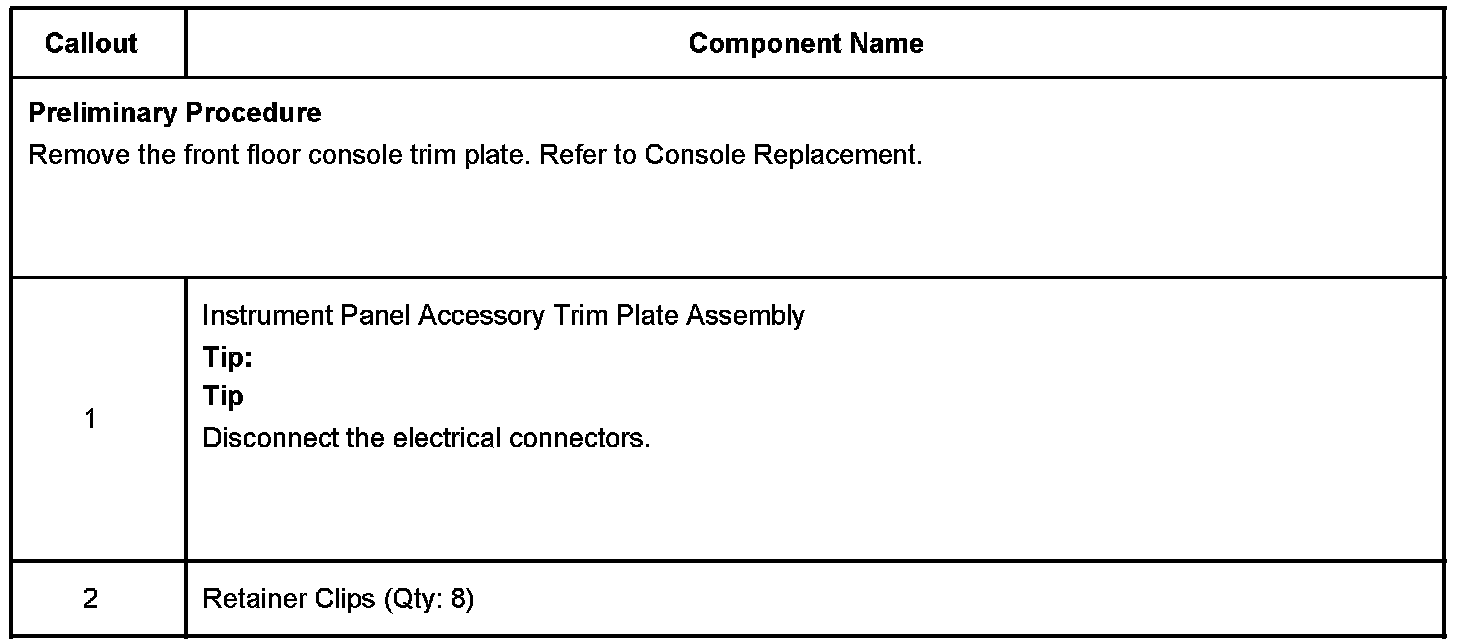

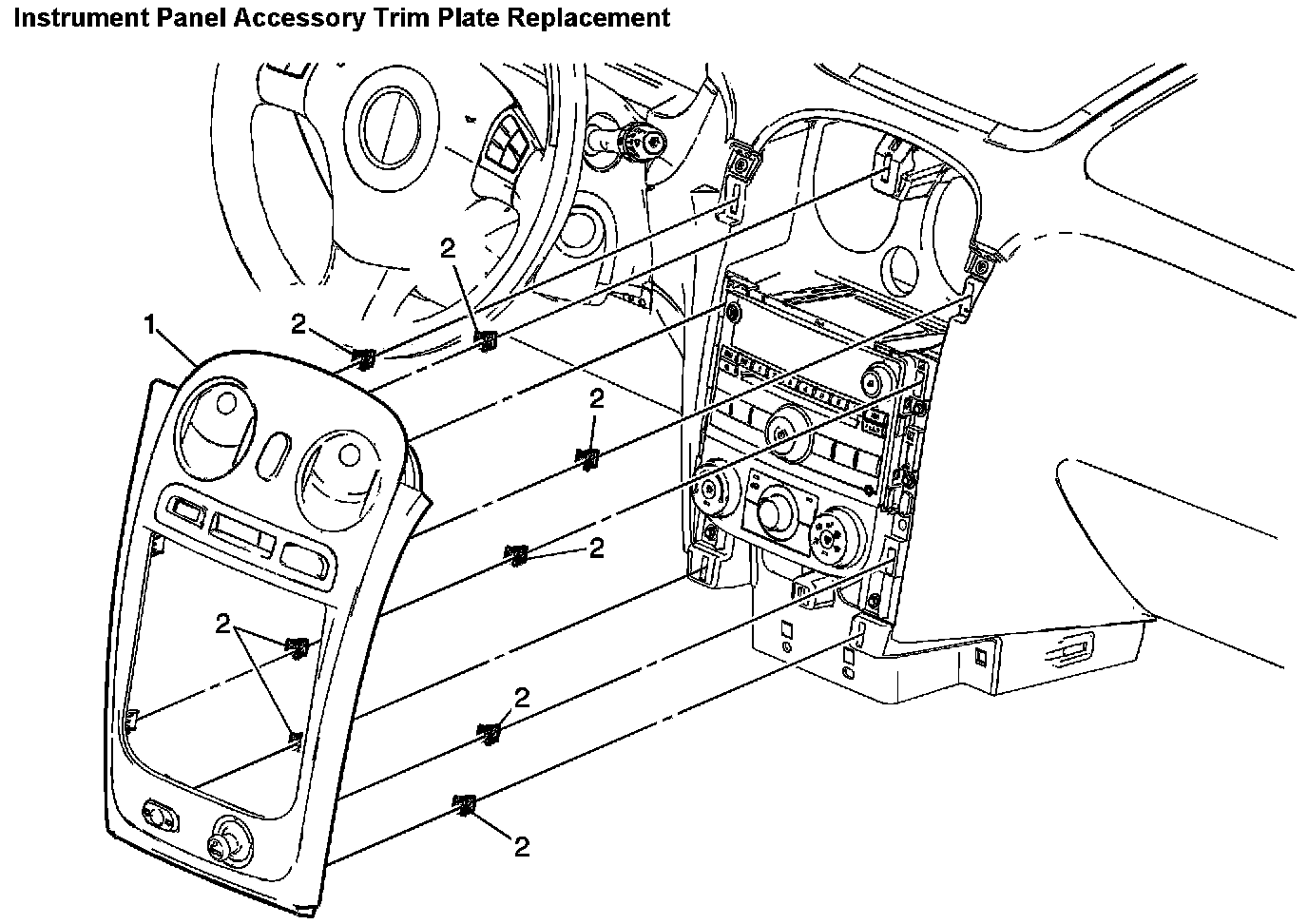

SMU - Revised Instrument Panel Accessory Trim Plate Replacement

Models:
2006 Chevrolet HHR

This bulletin is being issued to revise the Instrument Panel Accessory Trim Plate Replacement procedure in the Instrument Panel, Gages and Console sub-section of the Service Manual. Please replace the current information in the Service Manual with the following information.








The information shown has been updated within SI. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.
