B3683

DTC B3683

CIRCUIT DESCRIPTION
The roof door module (RDM) monitors the folding top outer latch striker position switch at least once every 200 milliseconds. The folding top outer latch striker position switch is a three position switch that the RDM uses to determine roof position in relation to the header. The switch is tripped by the dowel pin on the folding top front panel as the top approaches the header. The switch tells the RDM that the roof is aligned and the latching process can begin.

DTC DESCRIPTOR
This diagnostic procedure supports the following DTC:
DTC B3683 Convertible Top/Moveable Roof Header Ready to Latch Left Sensor Circuit

CONDITIONS FOR RUNNING THE DTC
- The battery voltage is between 9-16 volts.
- Ignition is in the Accessory or Run position or retained accessory power (RAP) is active.
- A request for folding top operation has been received by the RDM, and the RDM attempts to operate the folding top.

CONDITIONS FOR SETTING THE DTC
- If the RDM detects an open or short to voltage in the folding top outer latch striker over center signal circuit, the DTC will set.
- If the RDM detects an open in the ground circuit of the folding top outer latch striker position switch, the DTC will set.
- If the RDM detects that the dowel pin is engaged and the RDM commands the roof down for approximately 30 seconds and the folding top cylinder position sensor is active, the DTC will set.
- If the RDM commands the roof up for approximately 30 seconds and the dowel pin is not engaged and the folding top cylinder position sensor is active, the DTC will set.

ACTION TAKEN WHEN THE DTC SETS
- Stores a current DTC B3683 in the RDM.
- Folding top operation is suspended.

CONDITIONS FOR CLEARING THE DTC
- This DTC will clear on the current status after the condition for setting the fault is corrected.
- A history DTC will clear after 50 consecutive ignition cycles without a fault present.
- History and current DTC can be cleared using the scan tool.

DIAGNOSTIC AIDS
If the DTC does not reset after the code is cleared, then the switch may be the source of an intermittent fault.

TEST

Step 1 - Step 10:

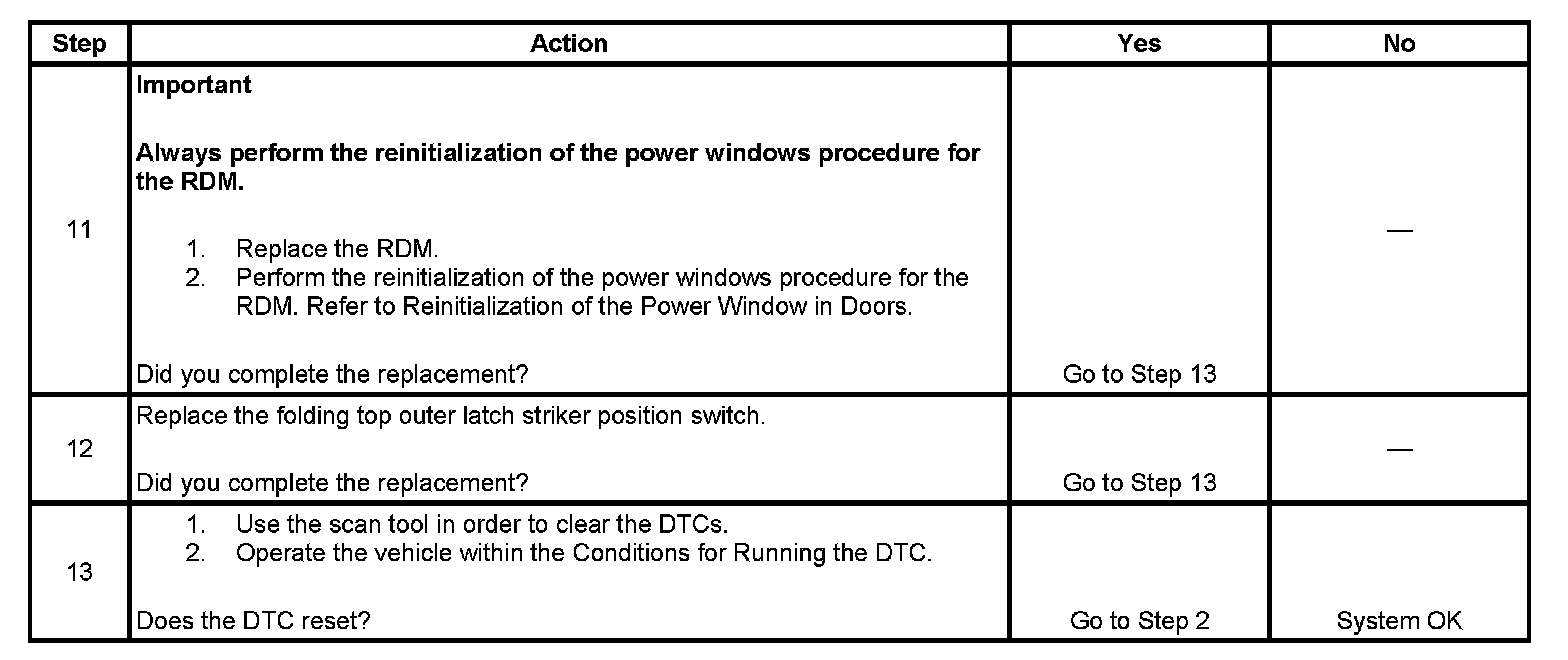

Step 11 - Step 13:
