Antilock Brakes / Traction Control Systems: Locations

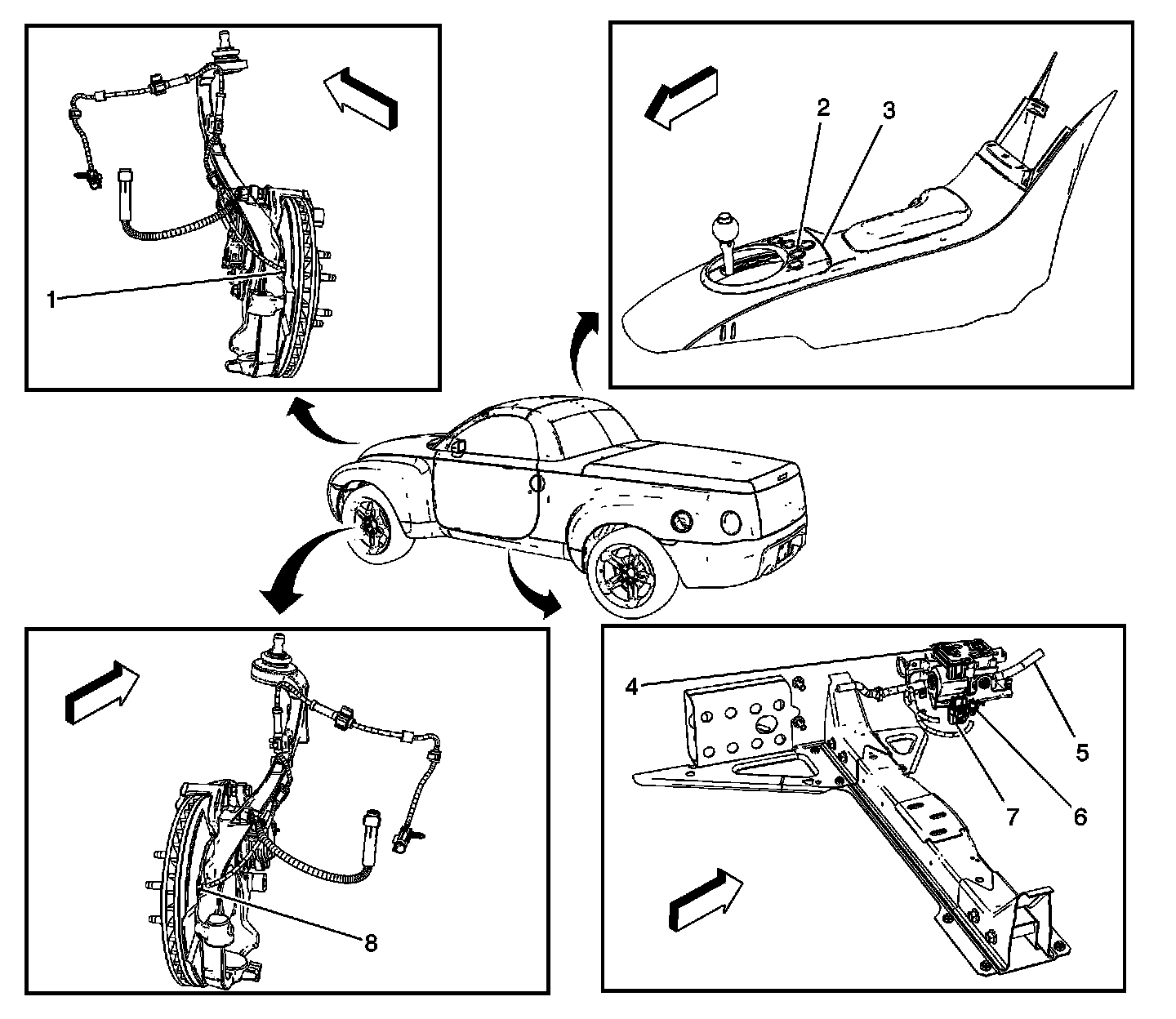

ABS Component Views

ABS Components - Sensors, Module and Switch:

1 - Wheel Speed Sensor (WSS) - RF
2 - Traction ON/OFF Switch
3 - Center Console Switch Assembly
4 - Electronic Brake Control Module (EBCM)
5 - Chassis Harness
6 - Electronic Brake Control Module (EBCM) Connector C1
7 - Electronic Brake Control Module (EBCM) Connector C2
8 - Wheel Speed Sensor (WSS) - LF
