Convertible Top Position Sensor / Switch
Convertible Top Position Sensor / Switch

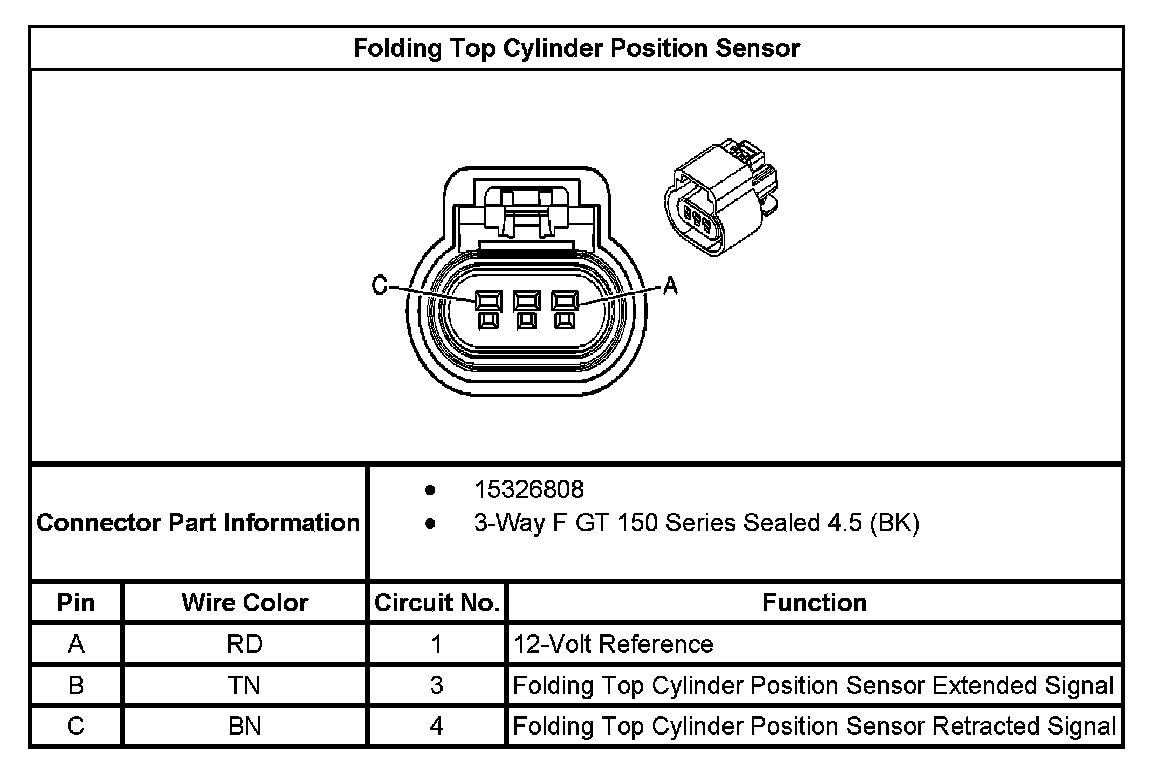

Folding Top Cylinder Position Sensor:
