Power Seat Motor

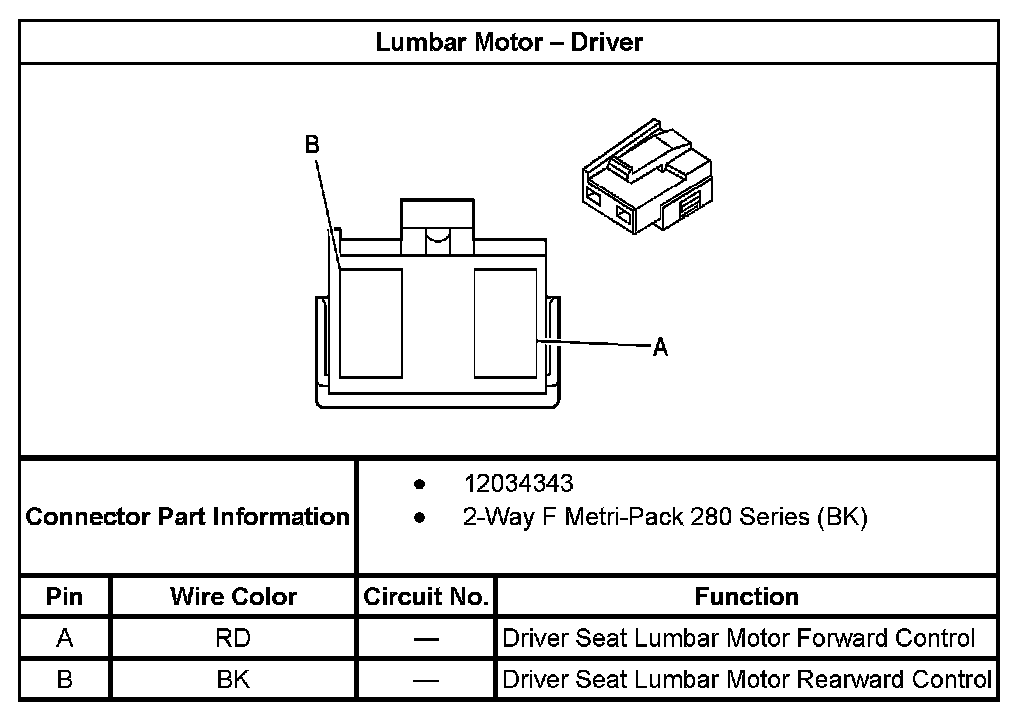

Lumbar Motor - Driver:

Lumbar Motor - Passenger:

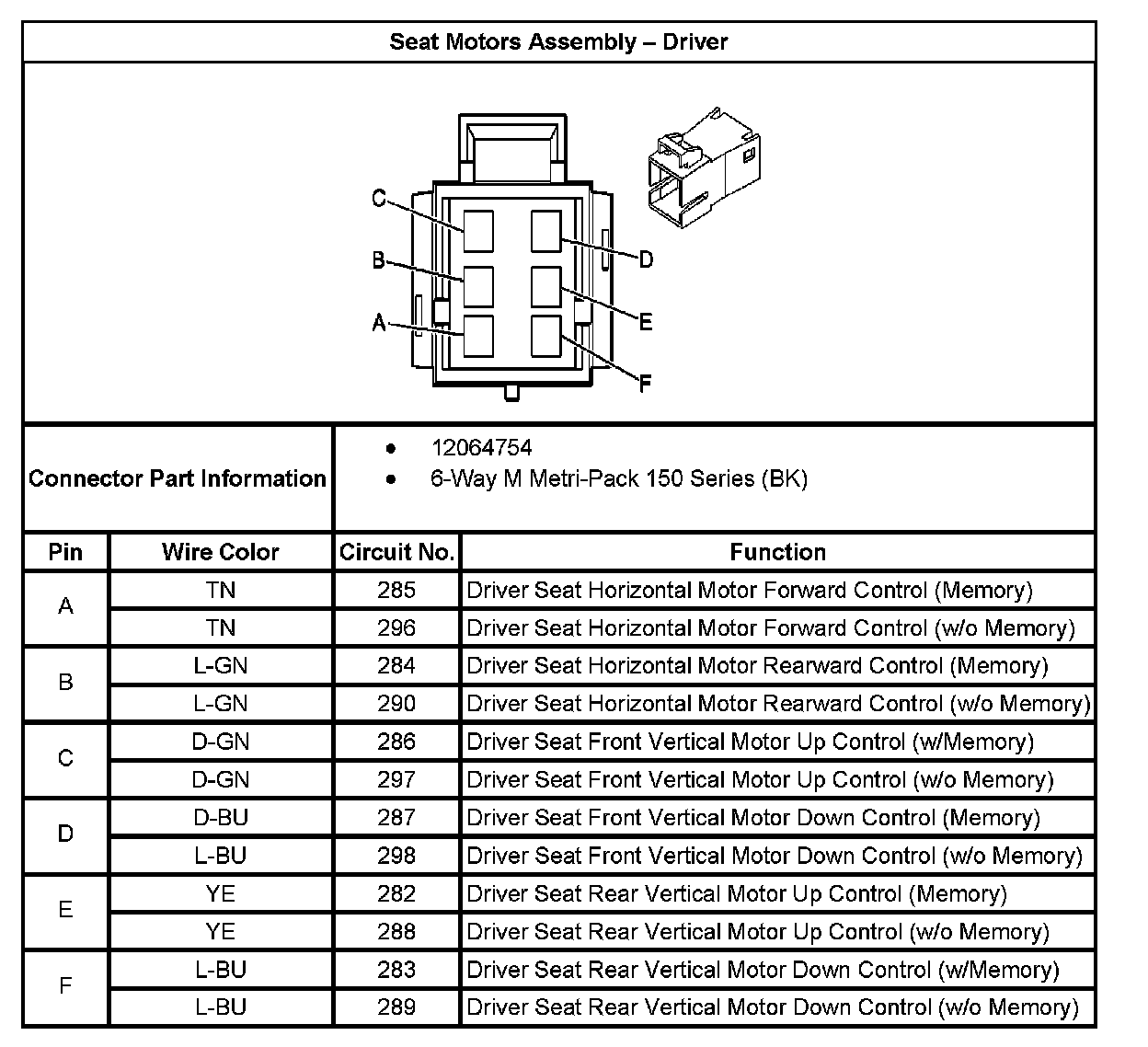

Seat Motors Assembly - Driver:

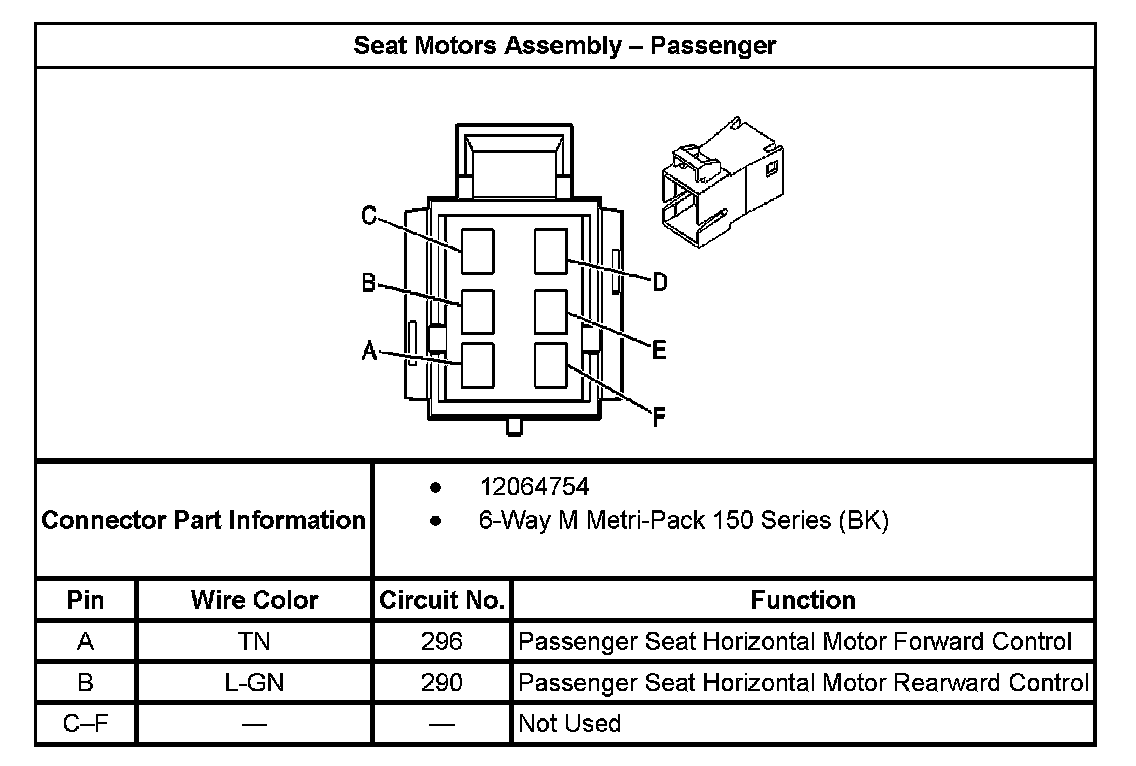

Seat Motors Assembly - Passenger:
