Power Seat Motor Position Sensor

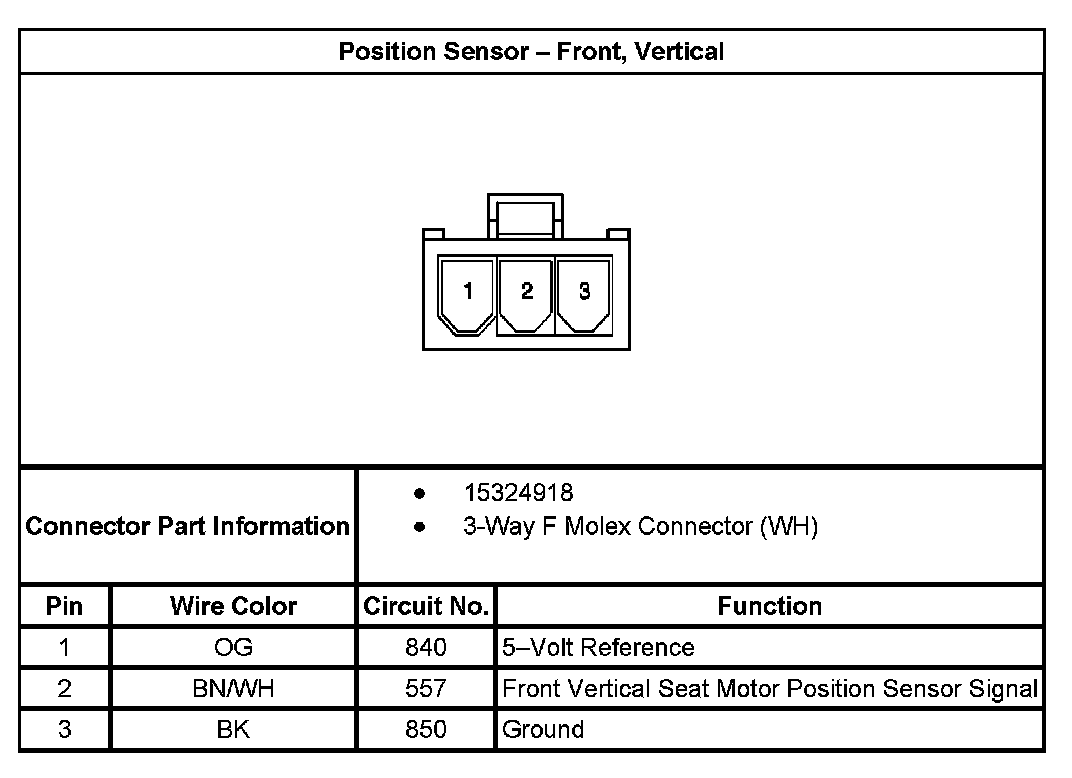

Position Sensor - Front, Vertical:

Position Sensor - Horizontal:

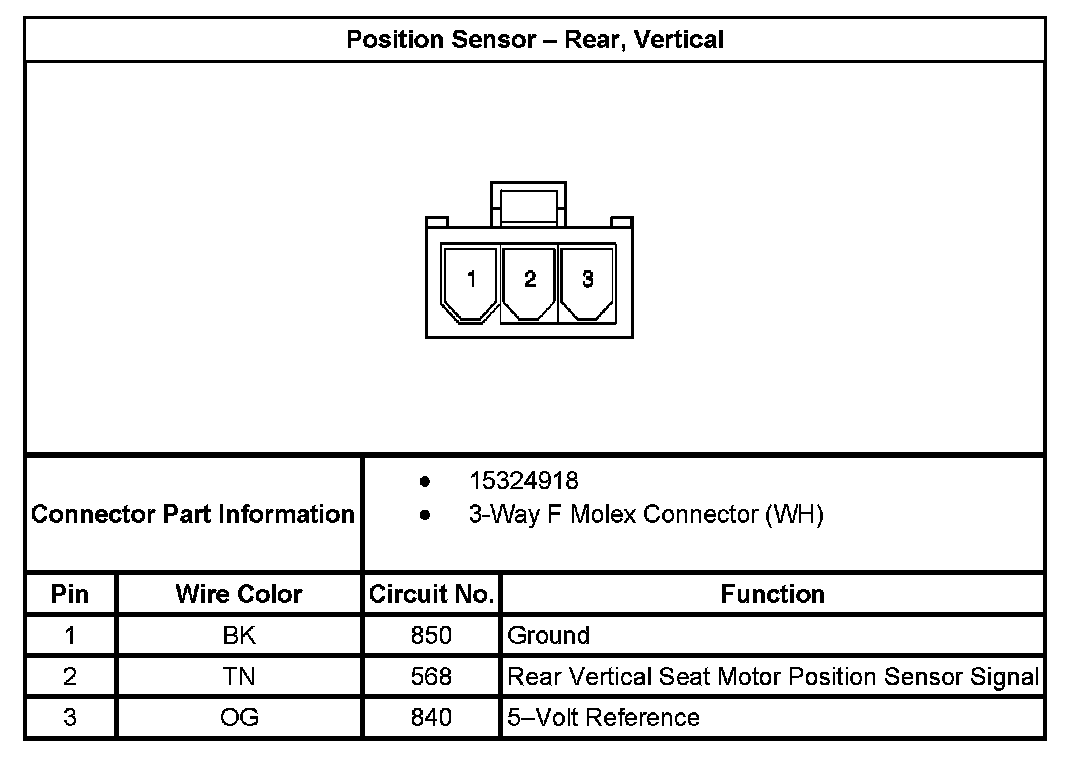

Position Sensor - Rear, Vertical:
