Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

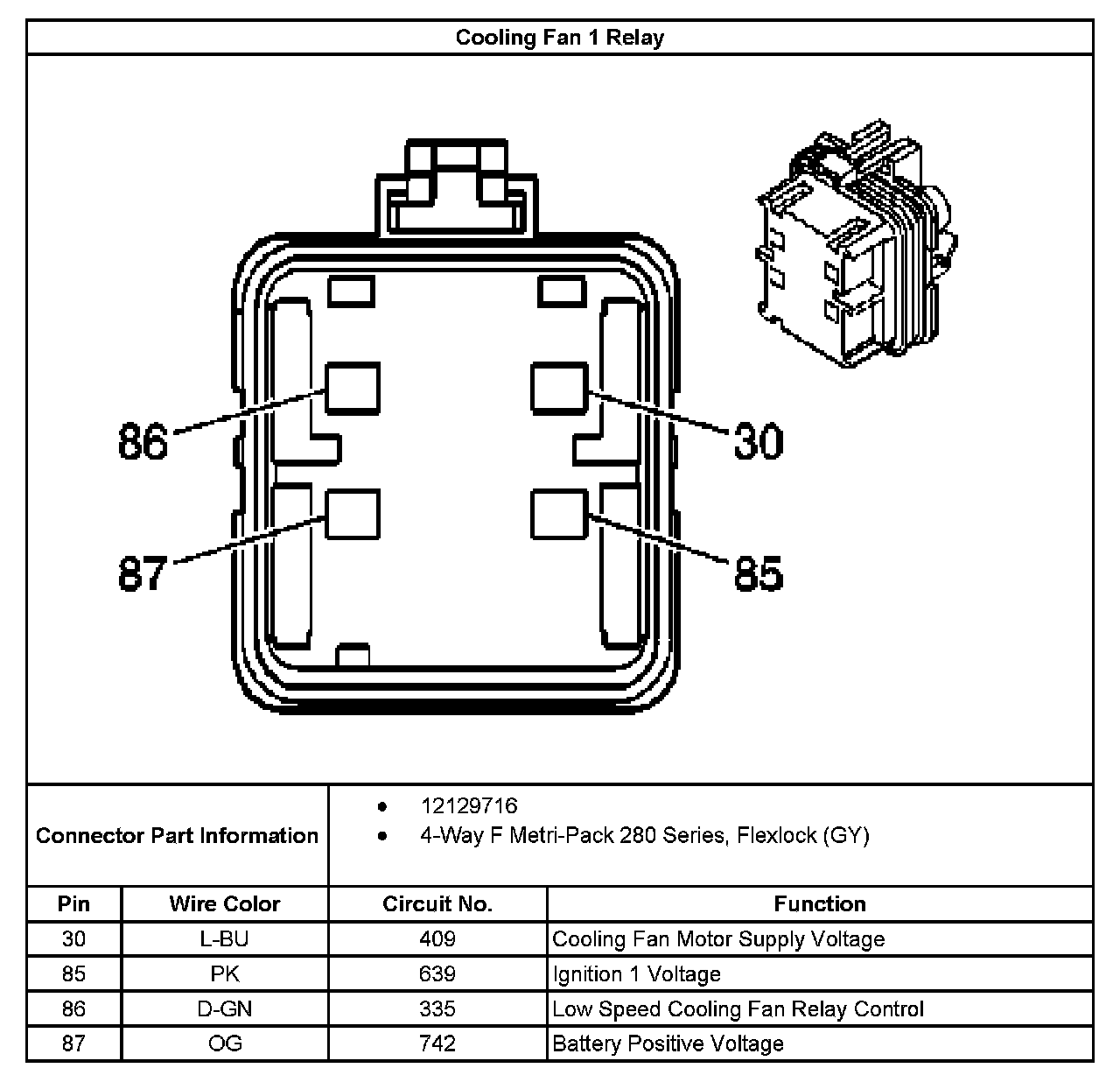

Cooling Fan 1 Relay:
Cooling Fan 2 Relay:
