Turn Signal Lamp
Turn Signal Lamp

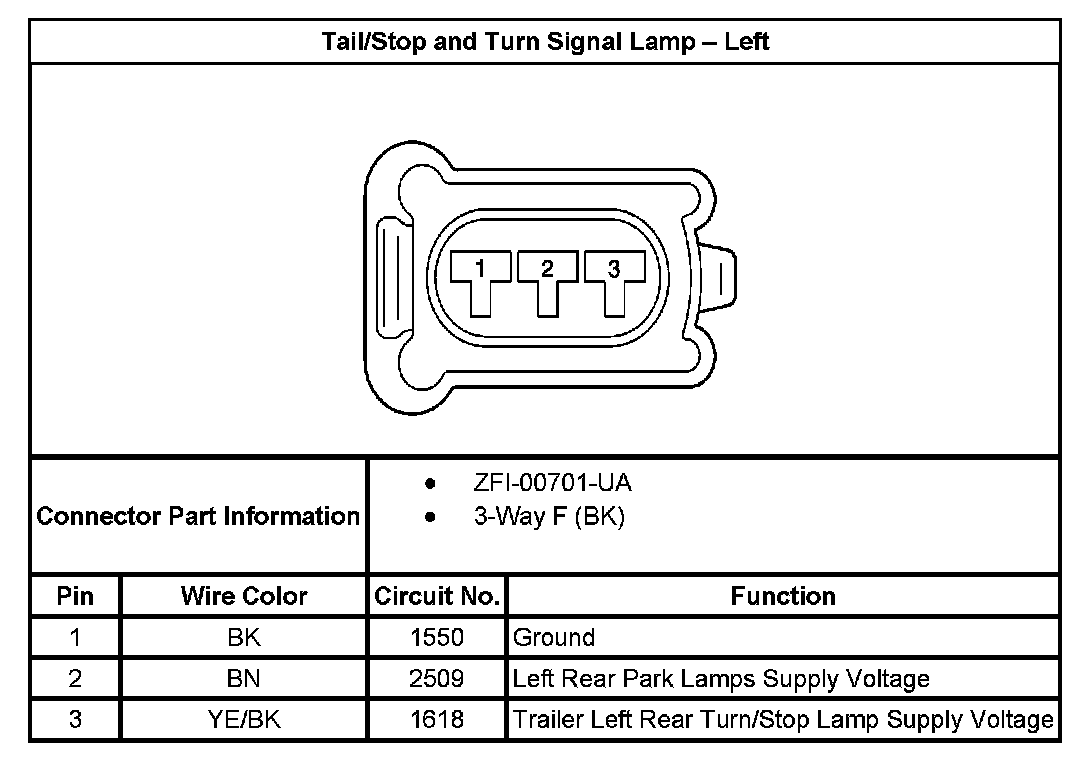

Tail/Stop And Turn Signal Lamp - Left:
Tail/Stop And Turn Signal Lamp - Right:

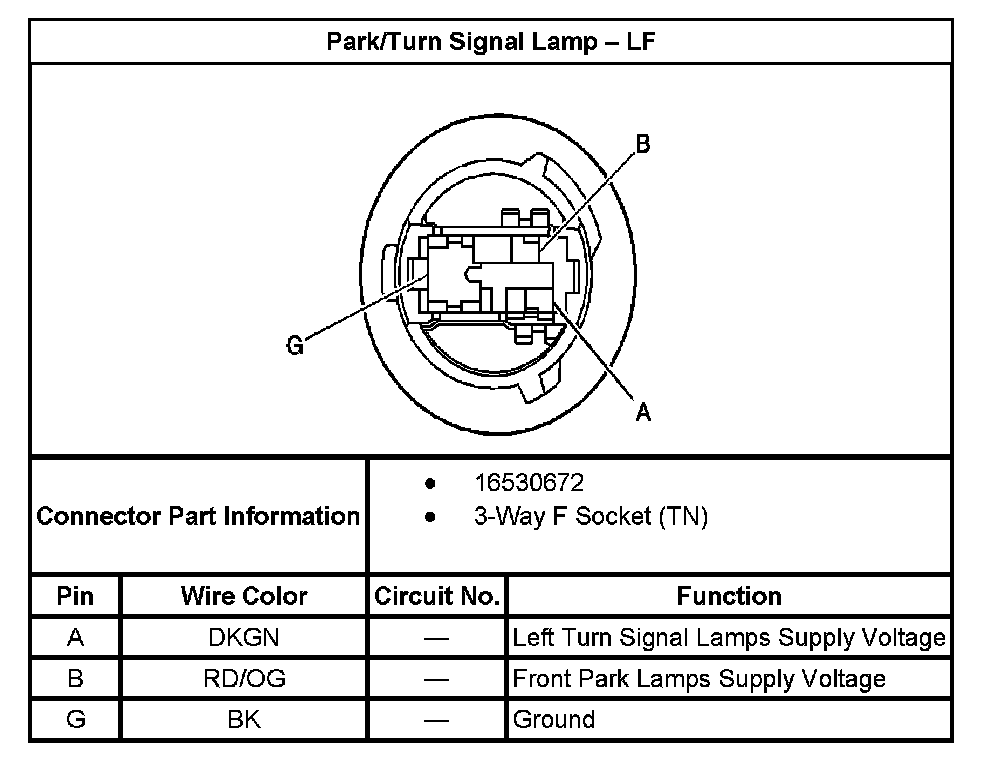

Park/Turn Signal Lamp - LF:
Park/Turn Signal Lamp - RF:
