Engine Compartment Views

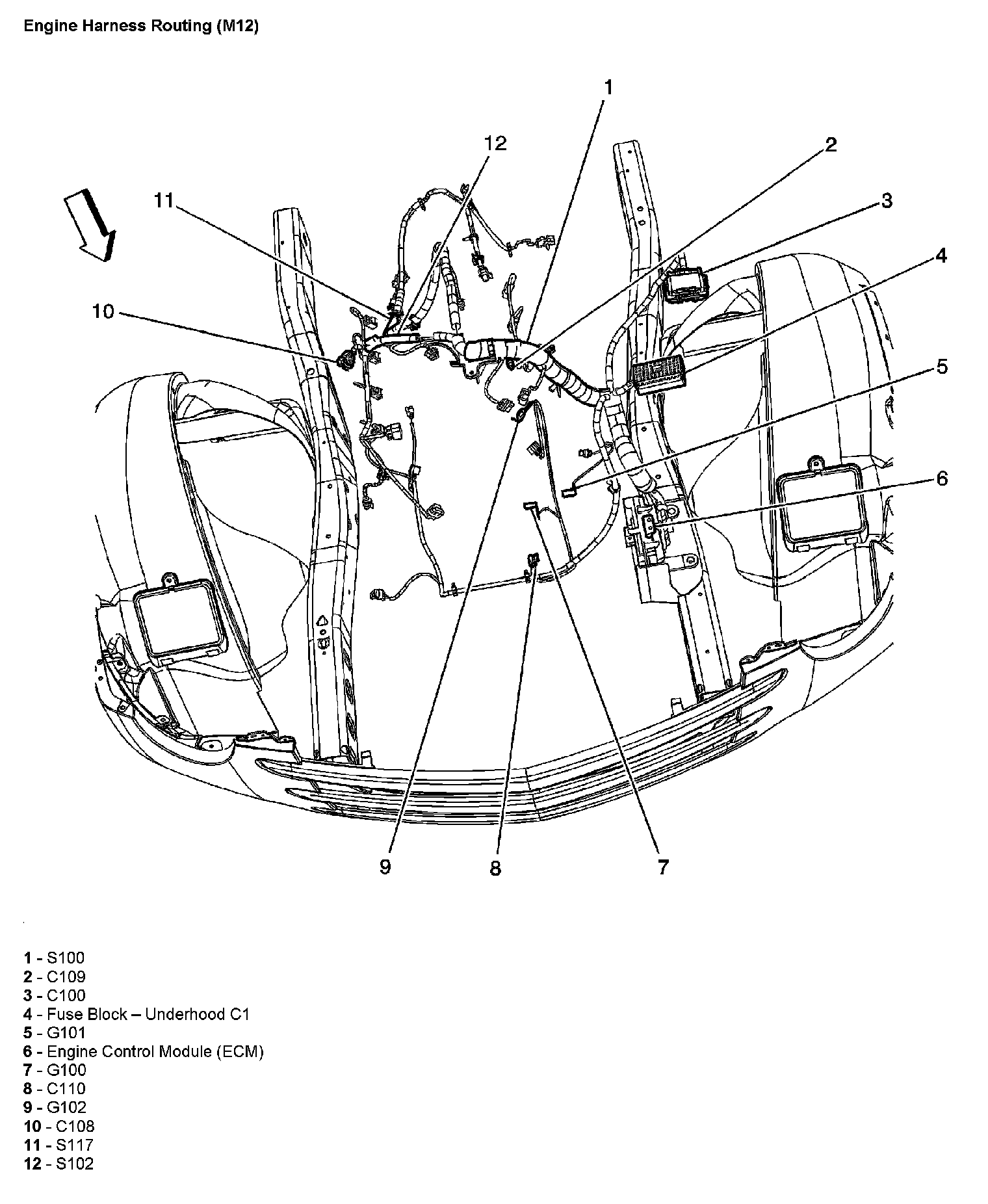

Engine Harness Routing (M12):



Engine Harness Components (With RPO Code M32):
