Instrument Panel Views
Instrument Panel Views

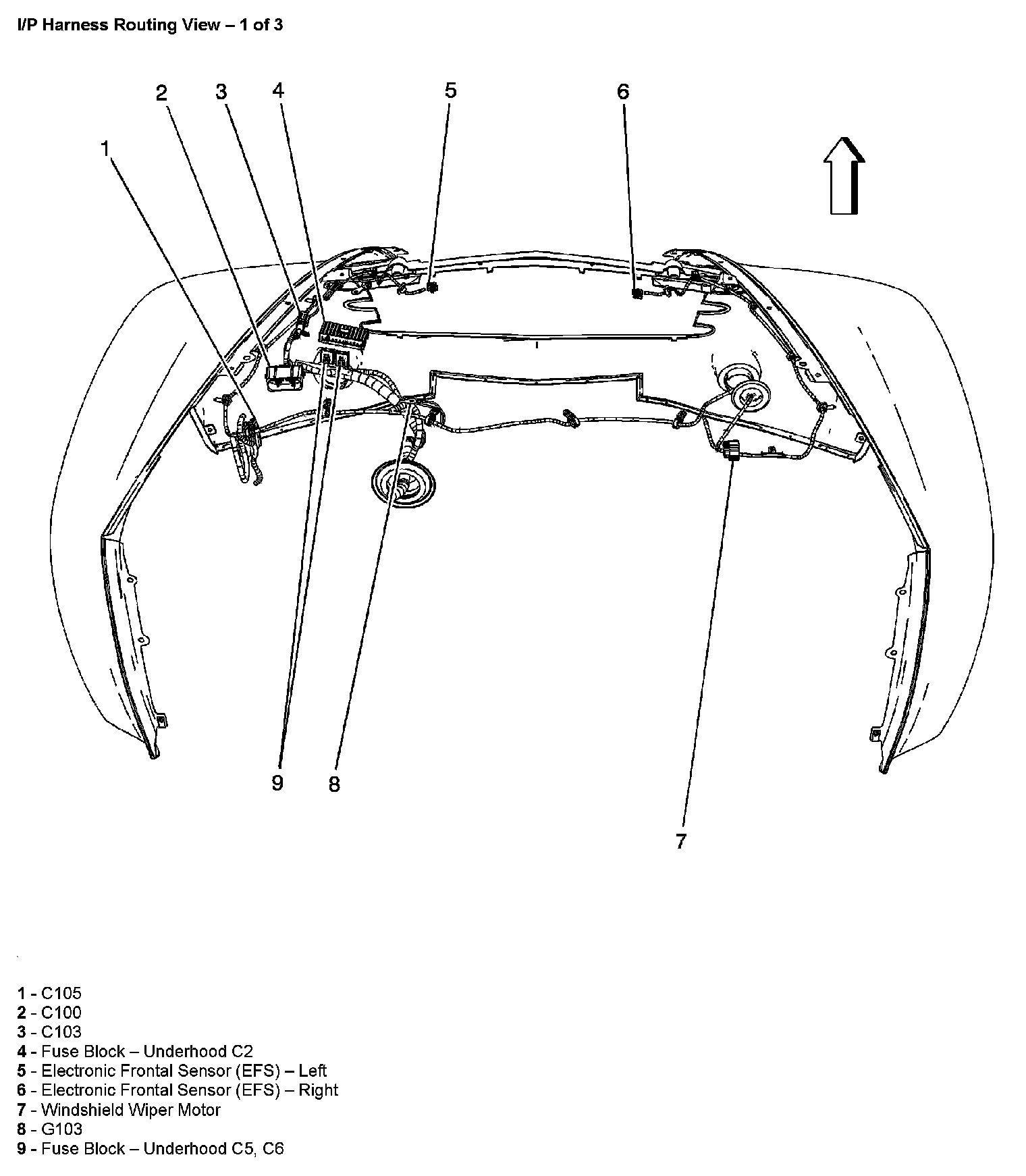

I/P Harness Routing View (Part 1):

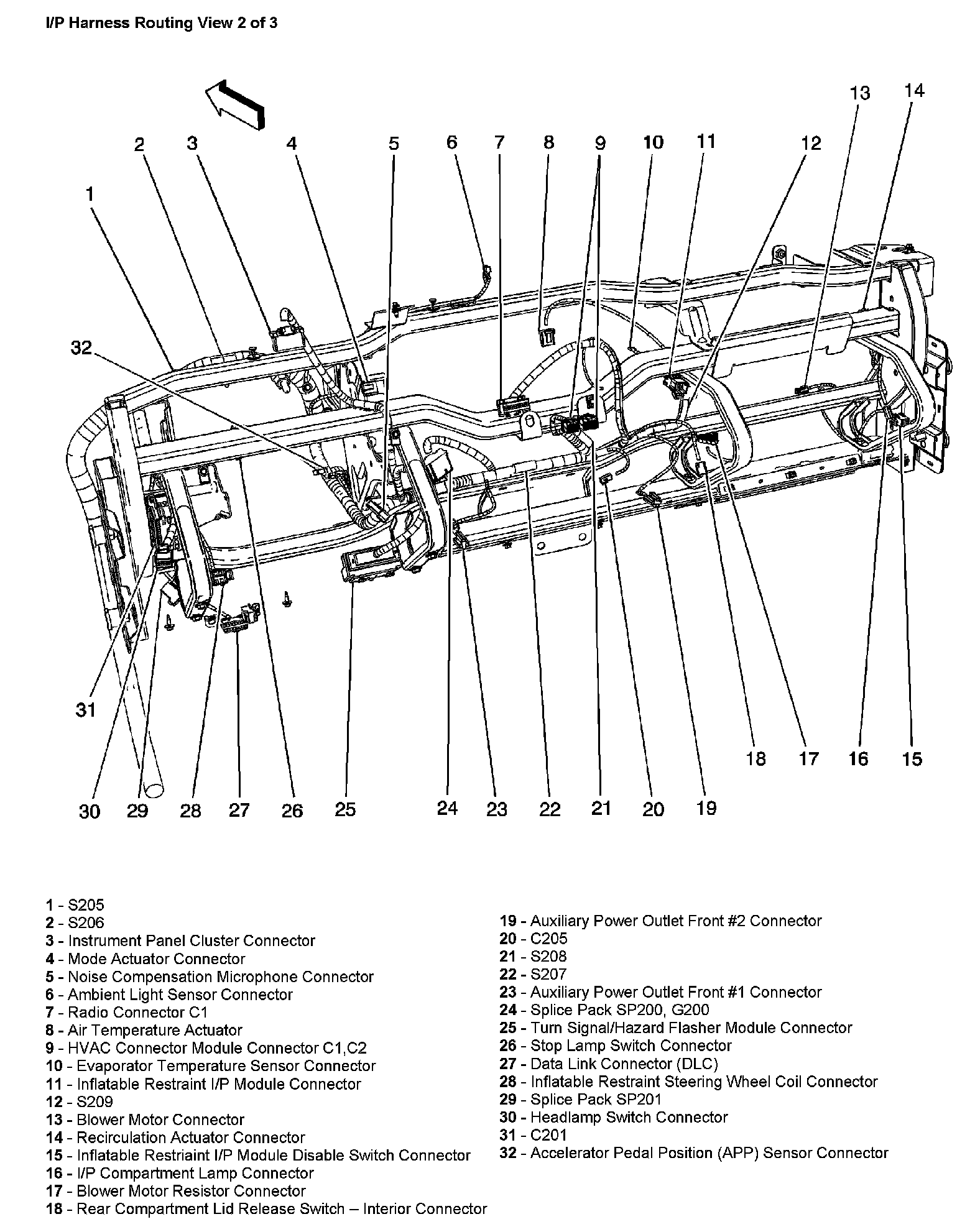

I/P Harness Routing View (Part 2):

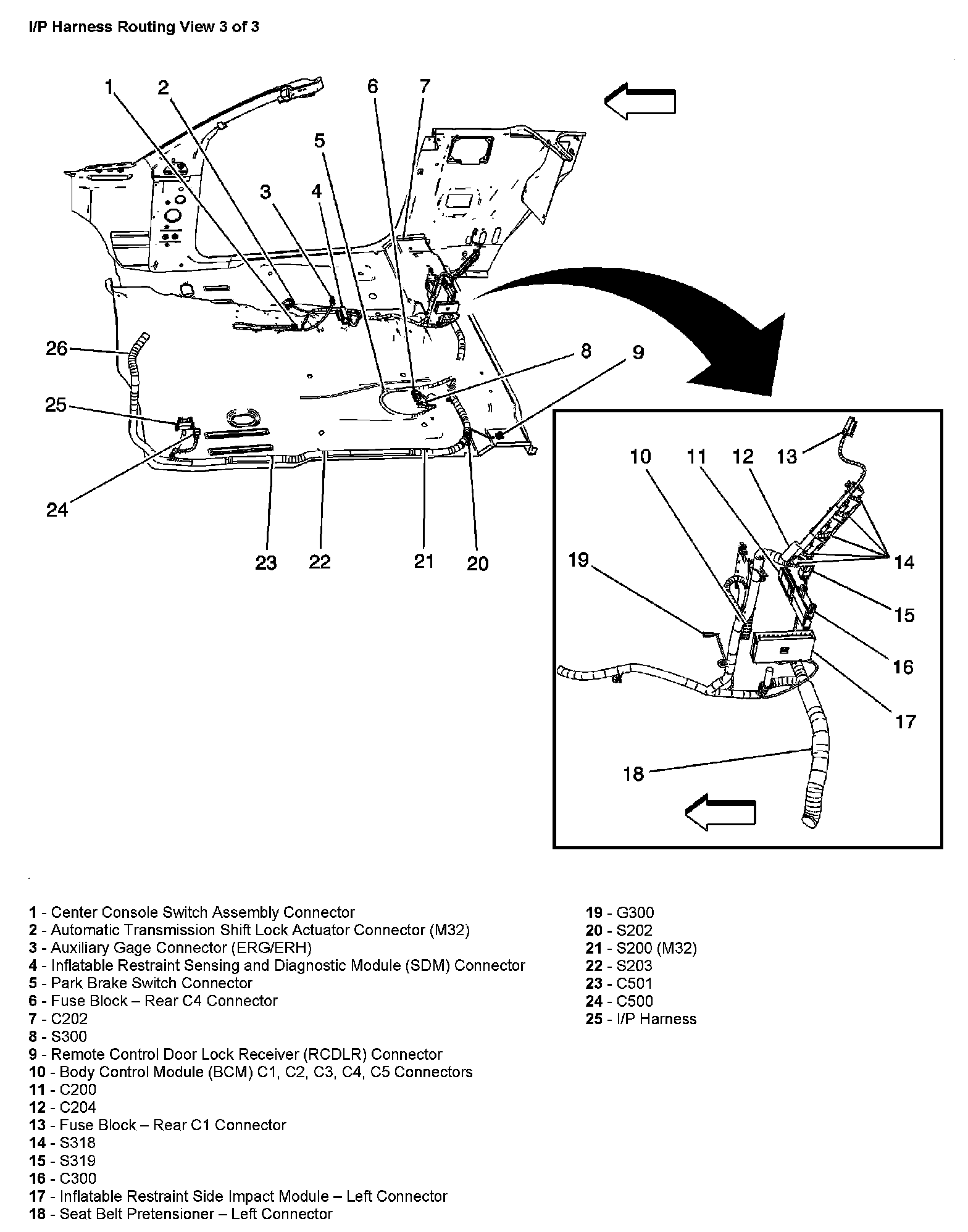

I/P Harness Routing View (Part 3):
