Air Bag Deactivation Indicator: Service and Repair

INFLATABLE RESTRAINT INSTRUMENT PANEL (I/P) MODULE DISABLE SWITCH LED REPLACEMENT

REMOVAL PROCEDURE
1. Remove the windshield garnish molding.
2. Disconnect the electrical connection to the module.

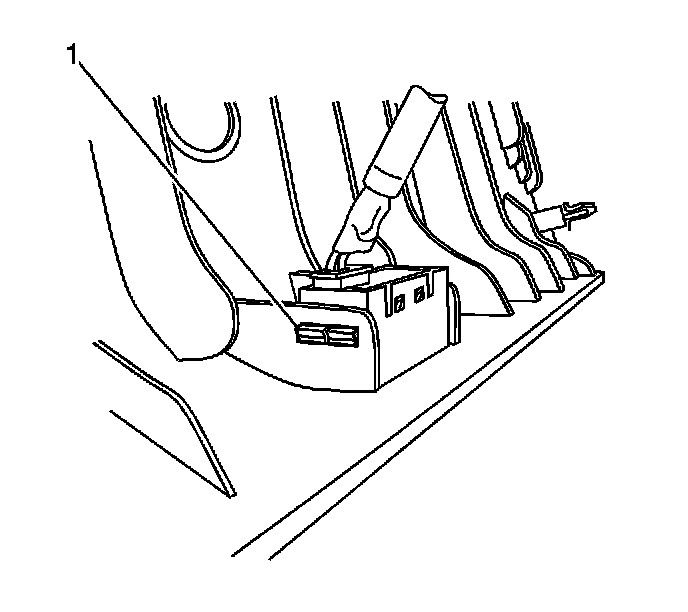

3. Release the module mounting tabs (1) through the windshield garnish molding.
4. Remove the module from the vehicle.

INSTALLATION PROCEDURE
1. Install the module inside the vehicle.




2. Connect the electrical connection to the module.
3. Engage the module mounting tabs (1) through the windshield garnish molding.
4. Install the windshield garnish molding.
