Backup Lamp: Service and Repair

BACKUP LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the rear license frame, if equipped.
2. Remove the rear license plate.

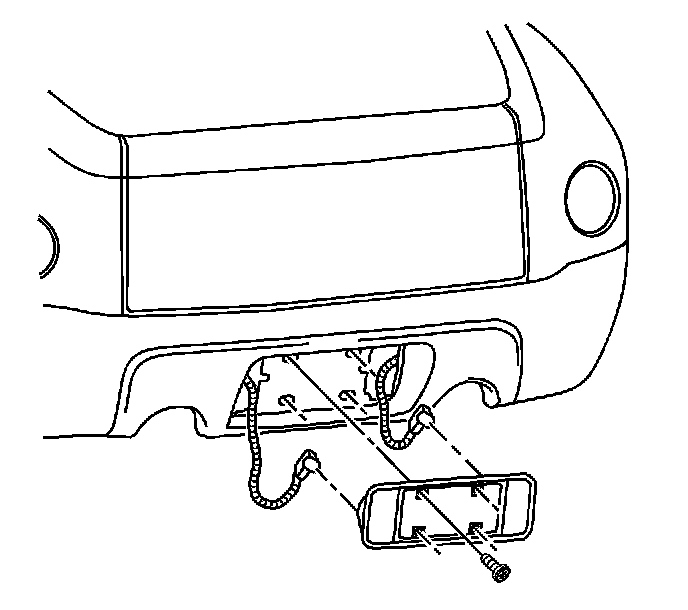

3. Remove the backup lamp assembly retaining screws.
4. Partially remove the backup lamp assembly to expose the backup lamp sockets.
5. Remove the backup lamp sockets from the backup lamp assembly.Rotate the sockets counterclockwise to release the locking tabs.
6. Remove the backup lamp assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the backup lamp sockets to the backup lamp assembly.
2. Rotate the sockets clockwise to engage the locking tabs.
3. Install the backup lamp assembly into position on the vehicle.
4. Install the backup lamp assembly retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the backup lamp and rear license assembly retaining screws to 2 N.m (18 lb in).

5. Install the rear license plate.
6. Install the rear license frame.
