Parking Lamp: Service and Repair

PARK/TURN SIGNAL LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Open the hood.
2. Remove the upper grille applique molding.

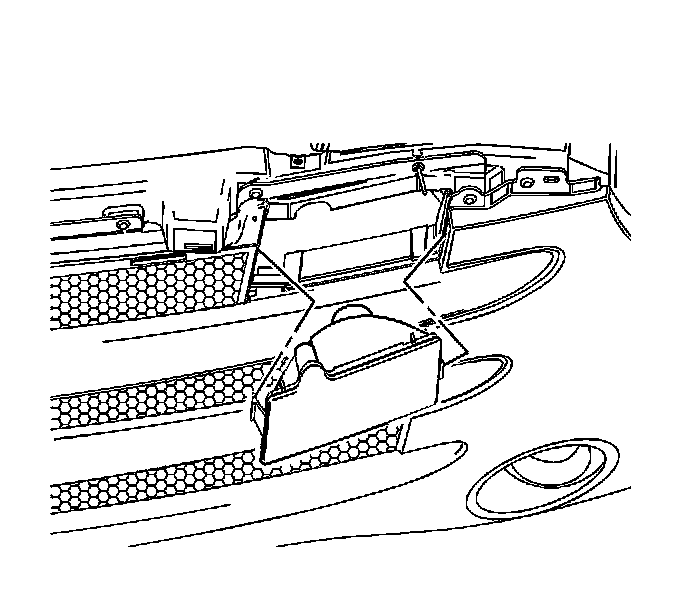

3. Using a thin-bladed tool, release the retaining clip on the inboard side.




4. Turn the socket counterclockwise to remove the socket from the lamp.




5. Remove the lamp from the vehicle.

INSTALLATION PROCEDURE




1. Insert the socket into the lamp and turn the socket clockwise to seat the socket.




2. Align the lamp to the opening.
3. Insert the lamp into the opening and push firmly to seat the lamp.
4. Install the upper grille applique molding.
5. Close the hood.
