Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

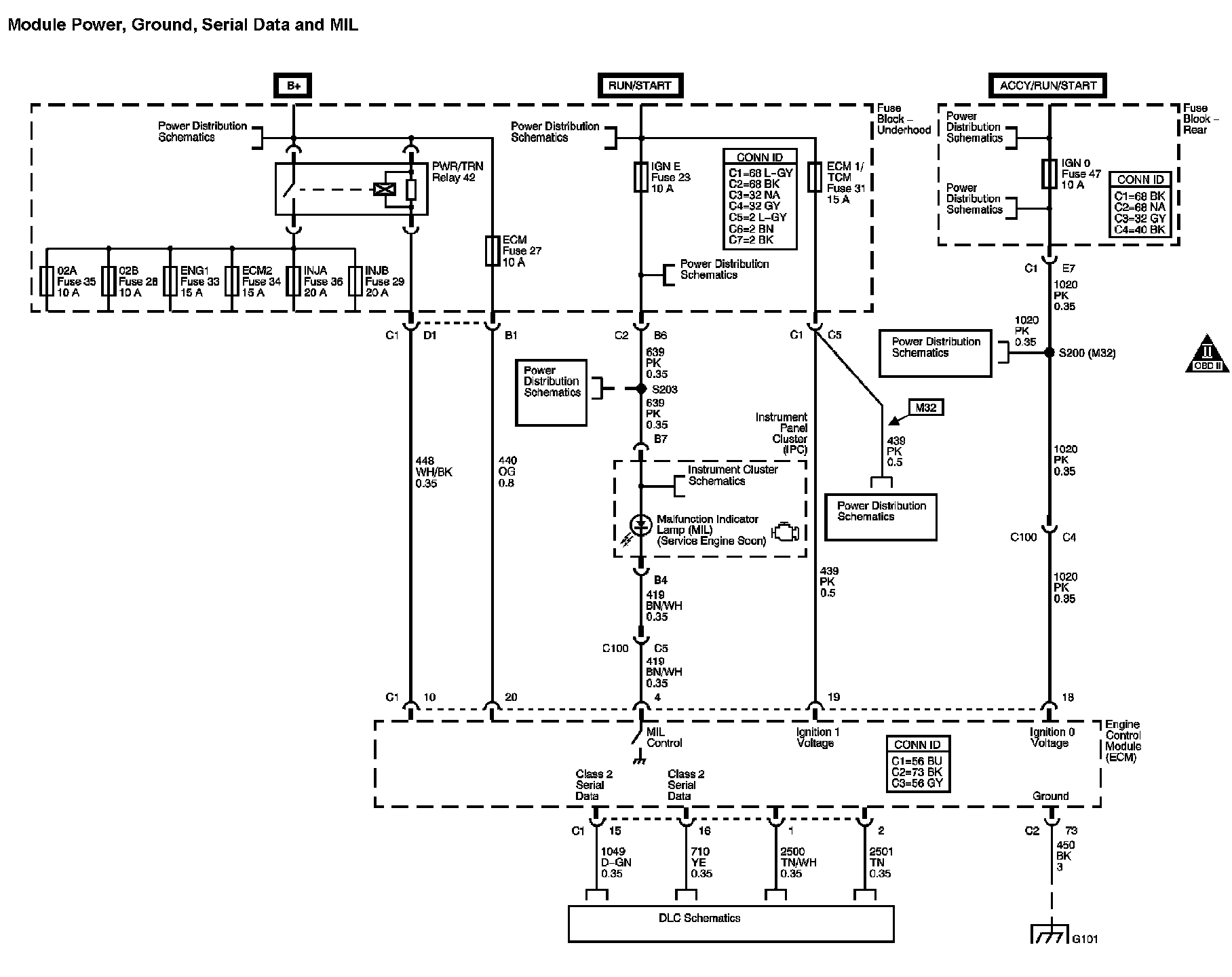

Module Power, Ground, Serial Data and MIL







Engine Data Sensors-5-Volt and Low Reference







Engine Data Sensors - MAF, Pressure, Temperature







Engine Data Sensors - Oxygen Sensors

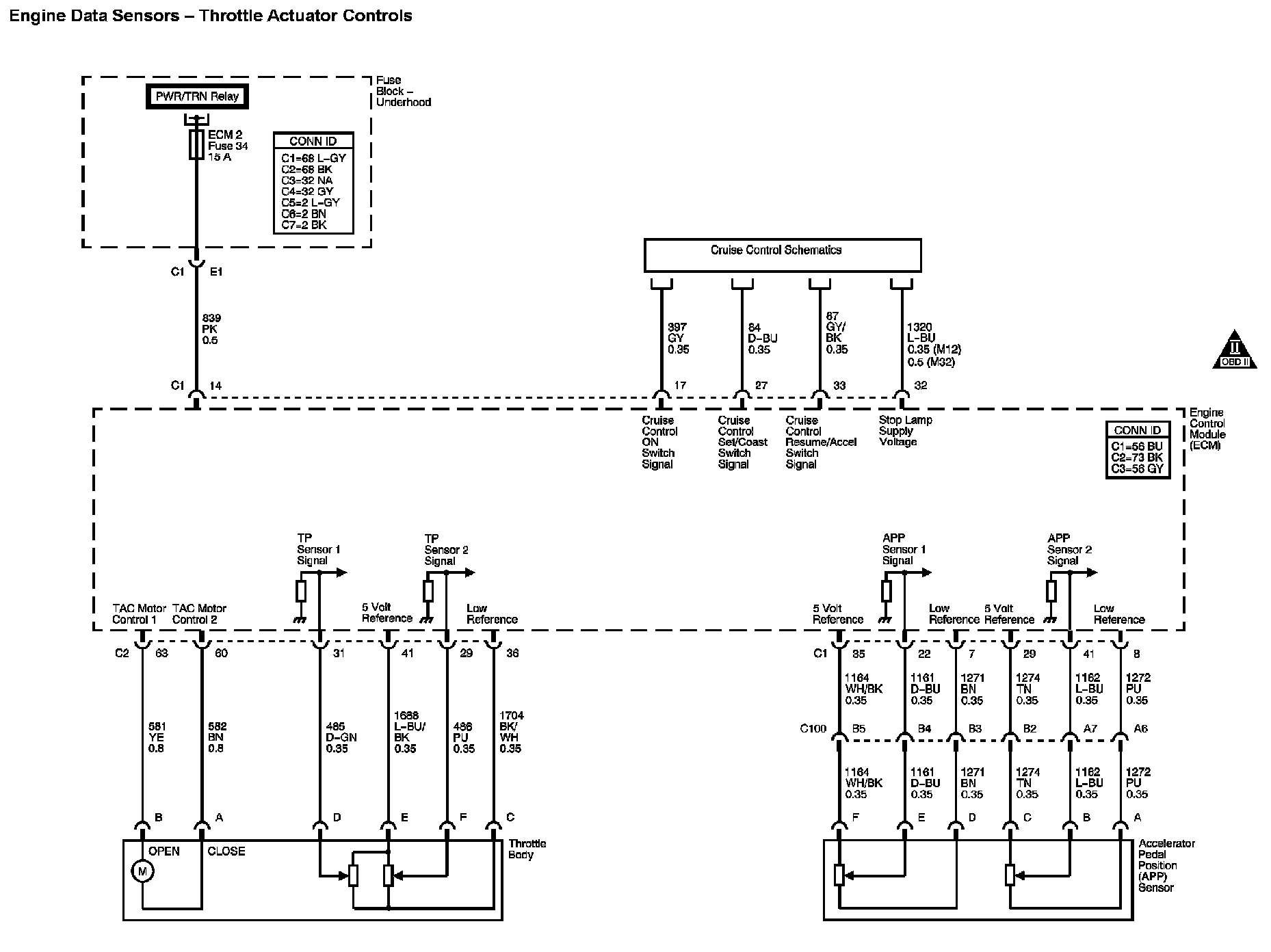

Engine Data Sensors - Throttle Actuator Controls







Igintion Controls - Ignition System Coils 1, 3, 5, 7







Ignition Controls - Ignition Systems Coils 2, 4, 6, 8

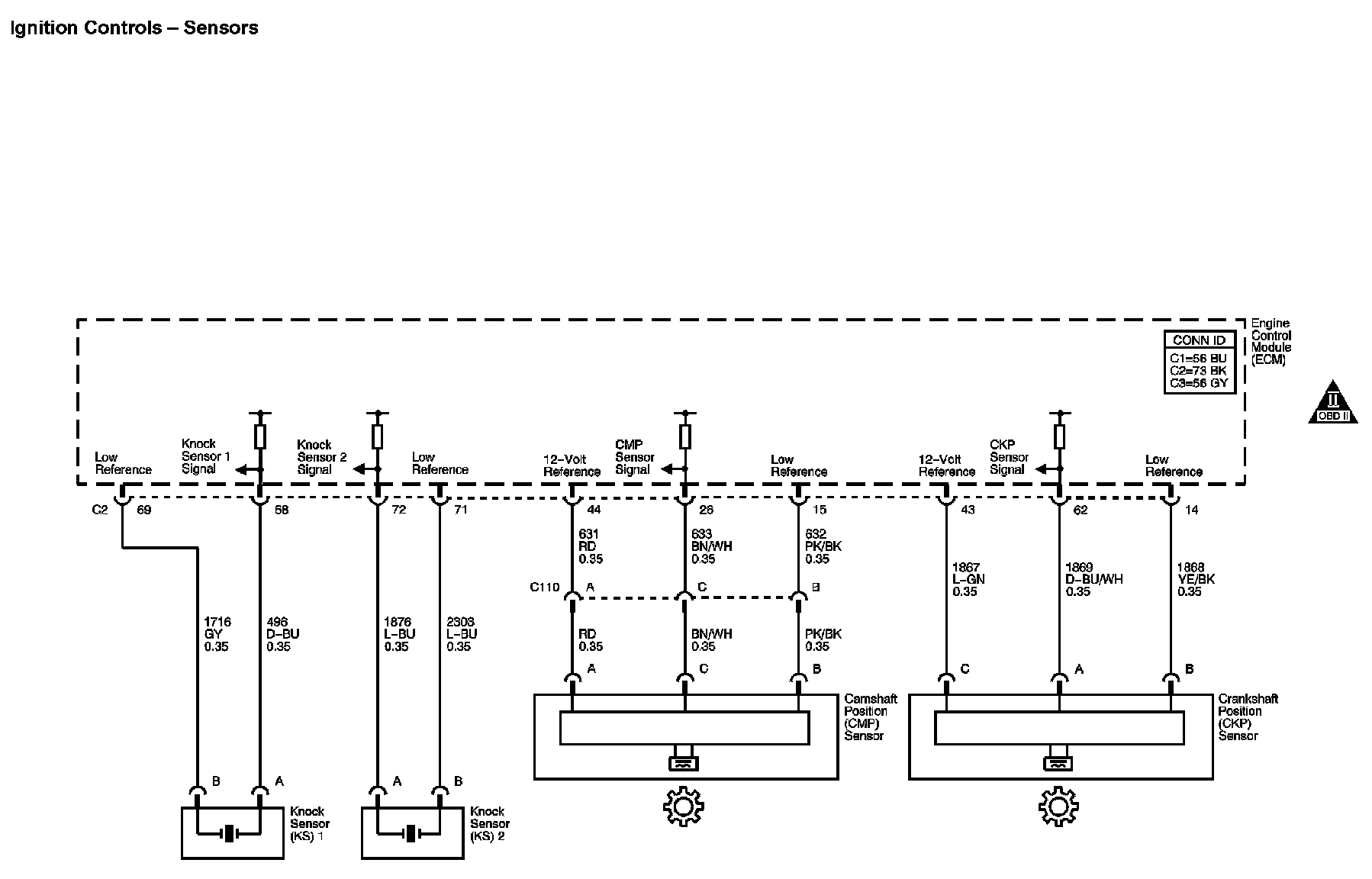

Ignition Controls - Sensors







Fuel Controls - Fuel Pump Controls and Fuel Injectors

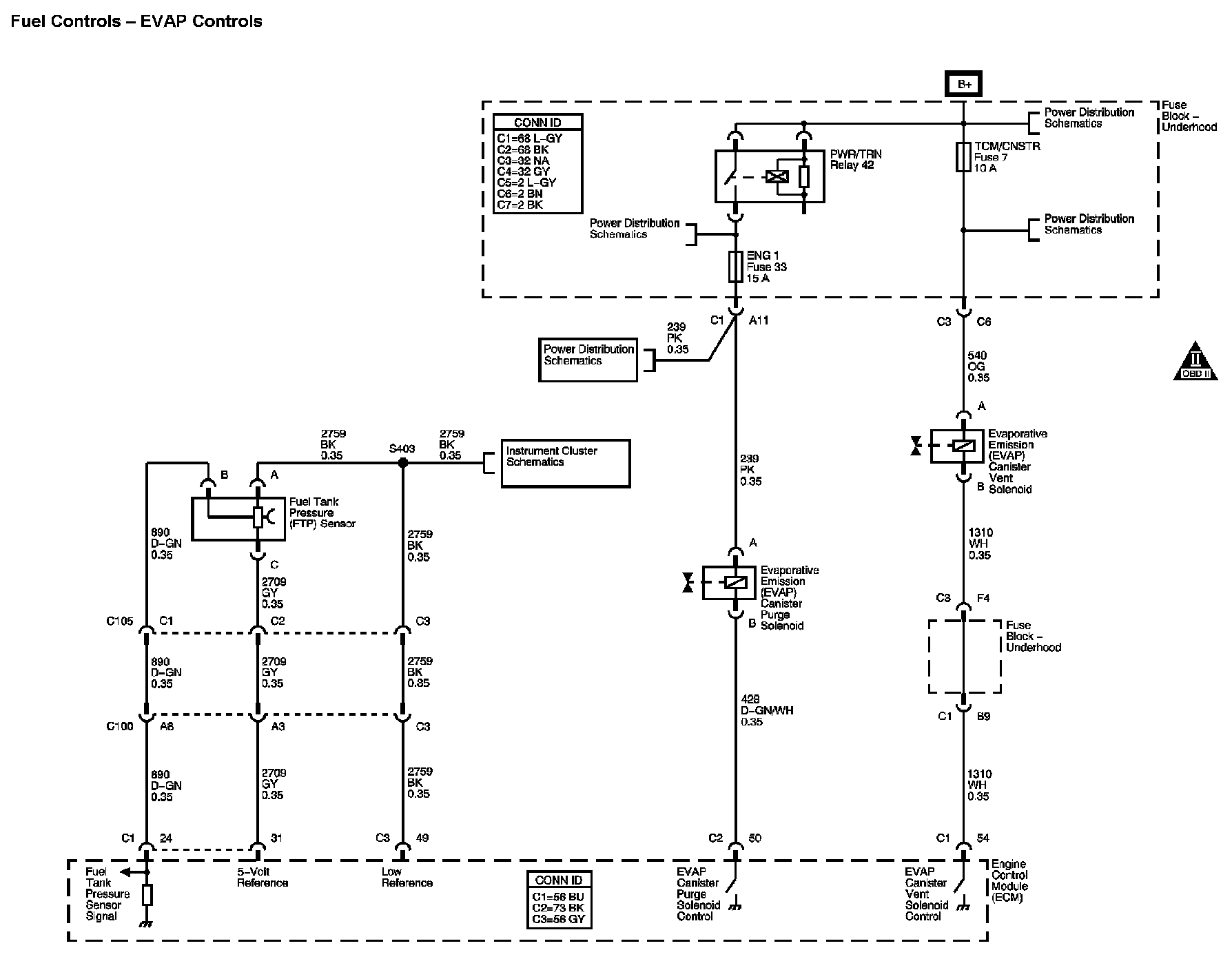

Fuel Controls - EVAP Controls







Transmission Control References

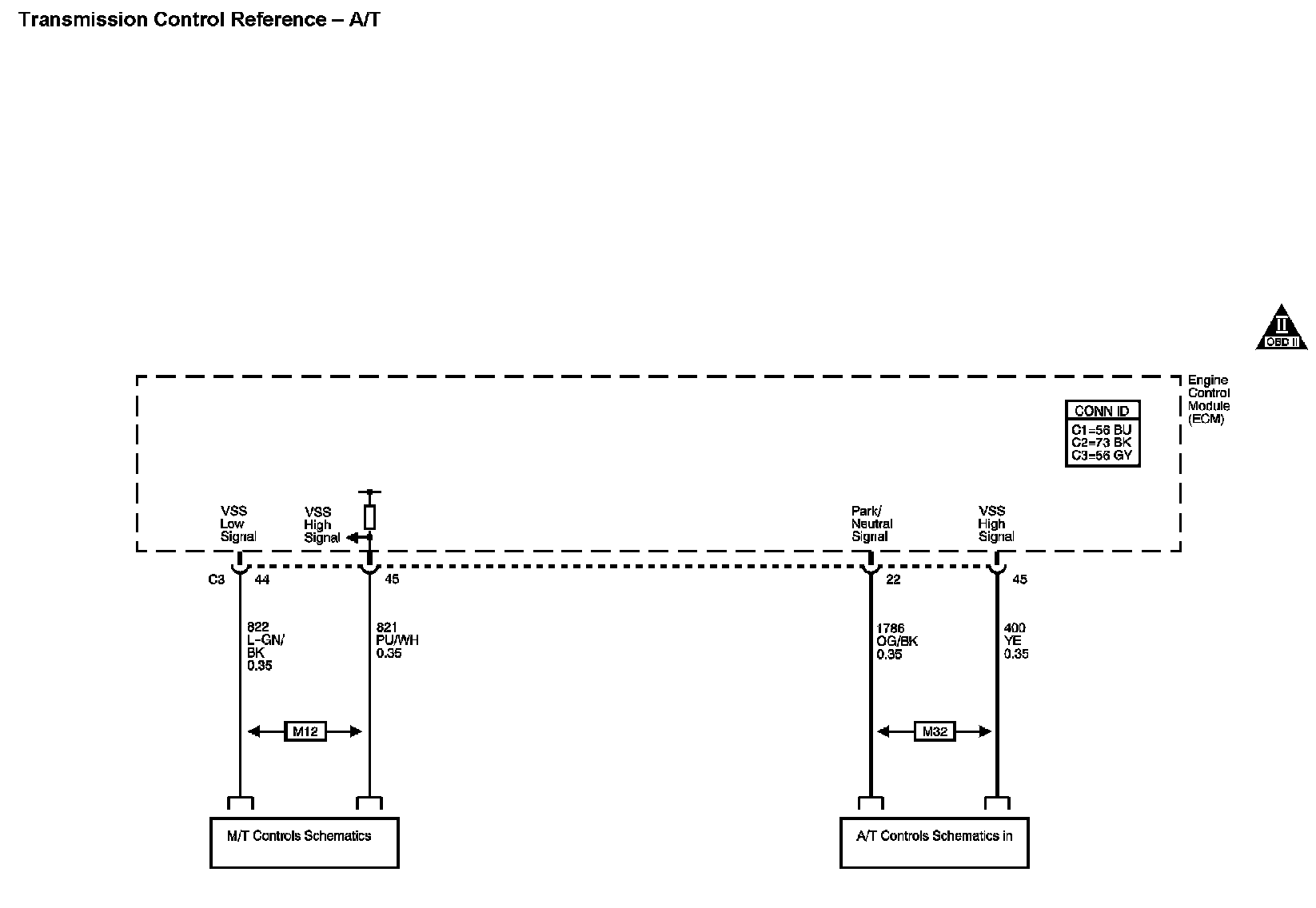

Transmission Control References - A/T







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
