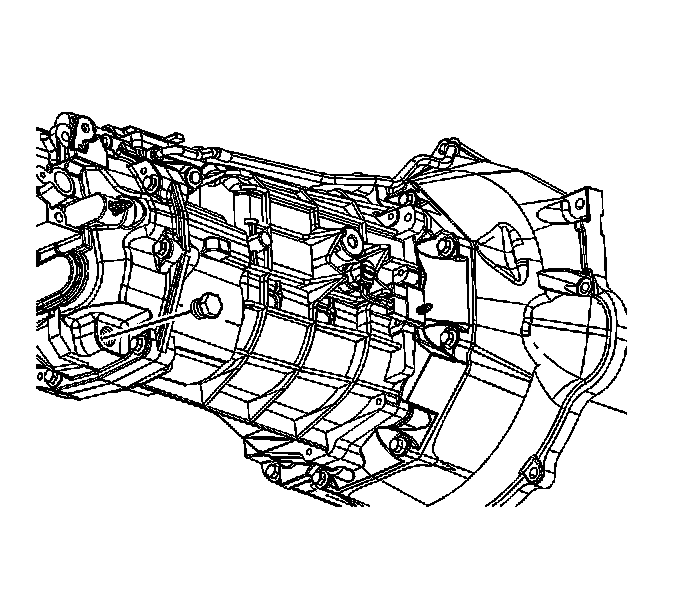

Manual Transmission/Transaxle: Locations

Drain Plug.

Tighten the drain plug to 18 Nm (13 ft. lbs.).





Fill Plug.

Fill the transmission with Dextron-III transmission fluid, until the fluid is even with the bottom of the fill plug hole.

Tighten the fill plug to 18 Nm (13 ft. lbs.).
