Windshield Washer Reservoir: Service and Repair

WASHER SOLVENT CONTAINER REPLACEMENT

REMOVAL PROCEDURE
1. Open the hood.
2. Remove the powertrain control module (ECM).

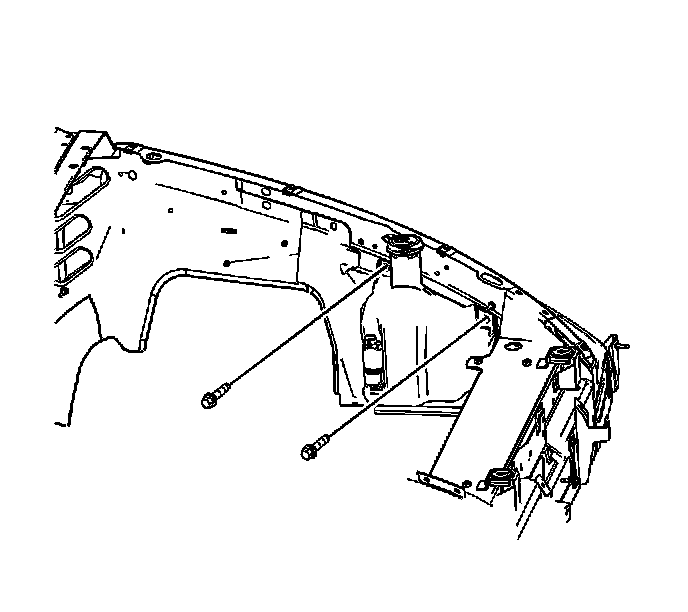

3. Remove the washer solvent container fasteners.




4. Pull upward to unseat the washer solvent container.
5. Disconnect the washer solvent hose from the washer pump.
6. Remove the washer solvent container from the vehicle.

INSTALLATION PROCEDURE
1. Install the washer solvent container into the vehicle.
2. Connect the washer solvent hose to the washer pump.




3. Push down to seat the washer solvent container into the vehicle.




4. Install the washer solvent container fasteners.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 10 N.m (88 lb in).

5. Install the powertrain control module (ECM).
6. Close the hood.
