Home >> Chevy Truck >> 2006 >> Silverado 1500 2WD V8-5.3L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Diagrams >> Connector Views >> Clutch Pedal Position (CPP) Switch

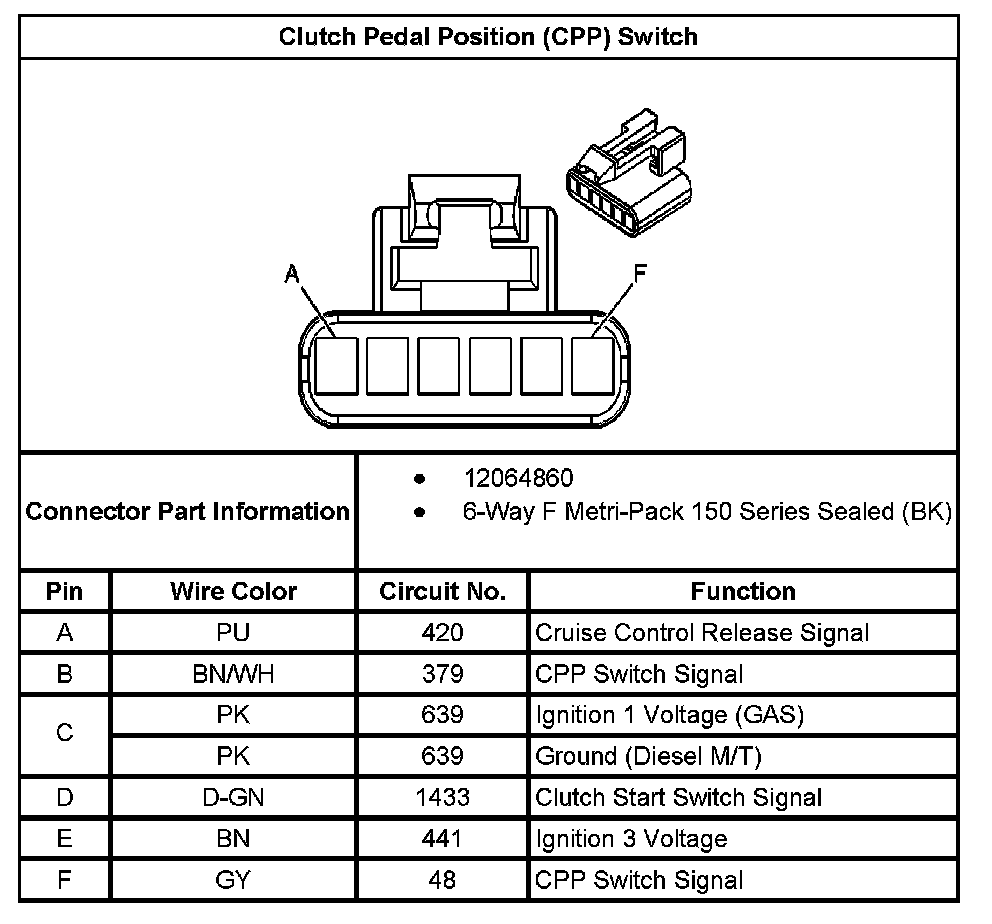

Clutch Pedal Position (CPP) Switch

Clutch Pedal Position (CPP) Switch:
