Parking Brake Warning Lamp: Service and Repair

Park Brake Warning Lamp Switch Replacement

Removal Procedure

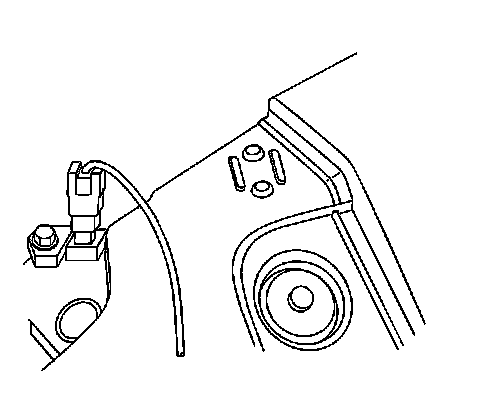

1. Disconnect the negative battery cable.

Caution: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the MID-bussed electrical center from the bracket.
3. Disconnect the park brake warning lamp switch electrical connector.

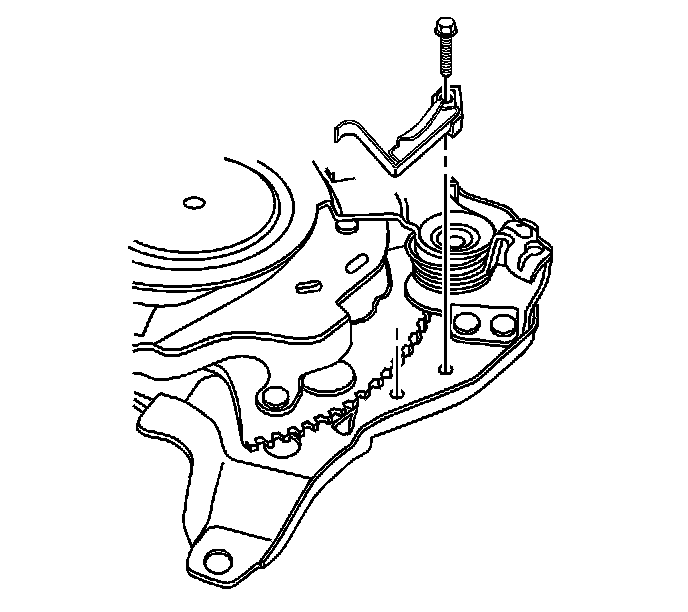

4. Remove the park brake warning lamp switch mounting bolt.
5. Remove the park brake warning lamp switch.

Installation Procedure





1. Install the park brake warning lamp switch.

2. Install the park brake warning lamp switch mounting bolt.
Tighten the bolt to 3 Nm (25 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.






3. Connect the park brake warning lamp switch electrical connector.
4. Install the MID-bussed electrical center to the bracket.
5. Connect the negative battery cable.
