Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Pedal Positioning System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Adjustable Pedals Inoperative

Adjustable Pedals Inoperative

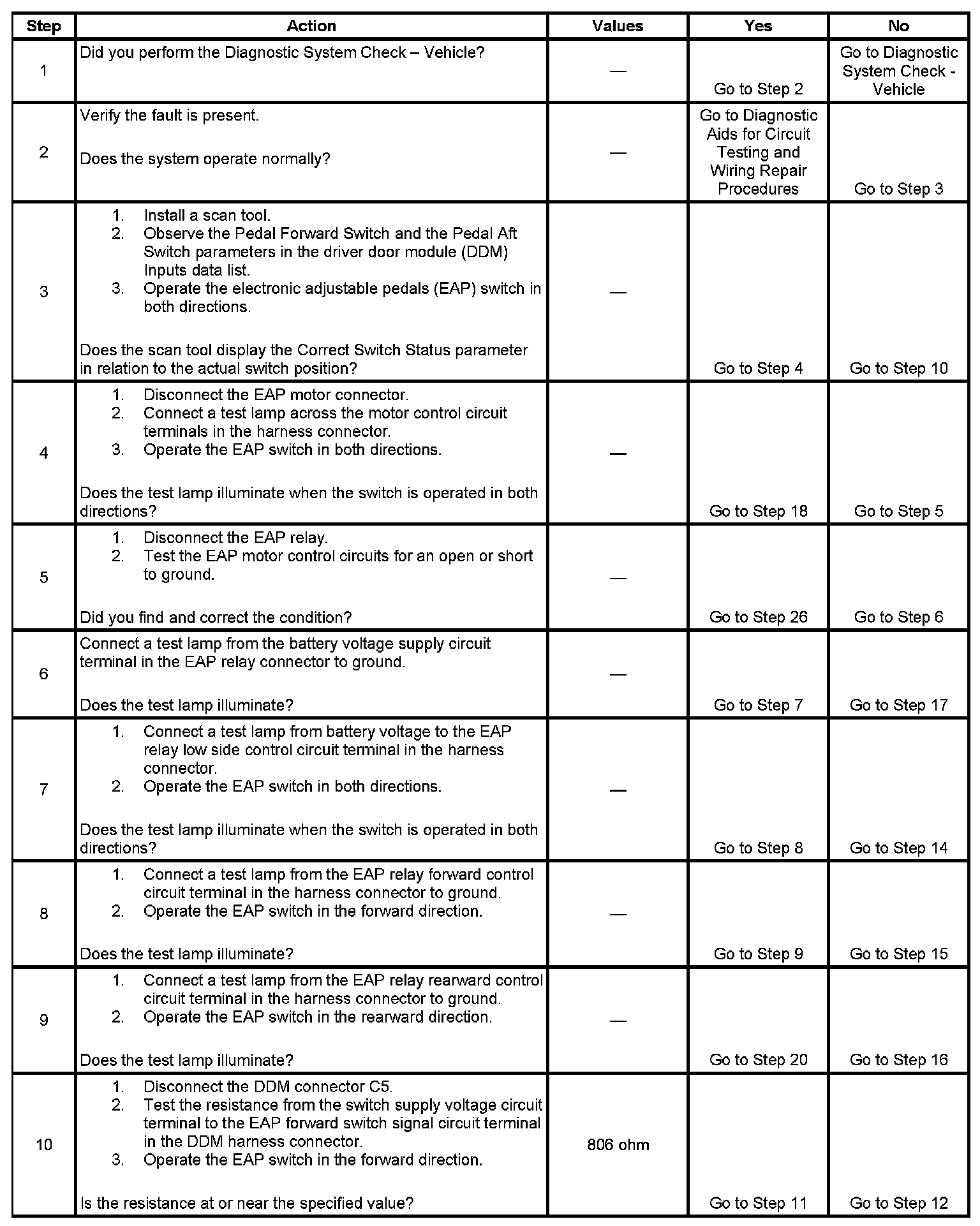

Step 1 - Step 10:

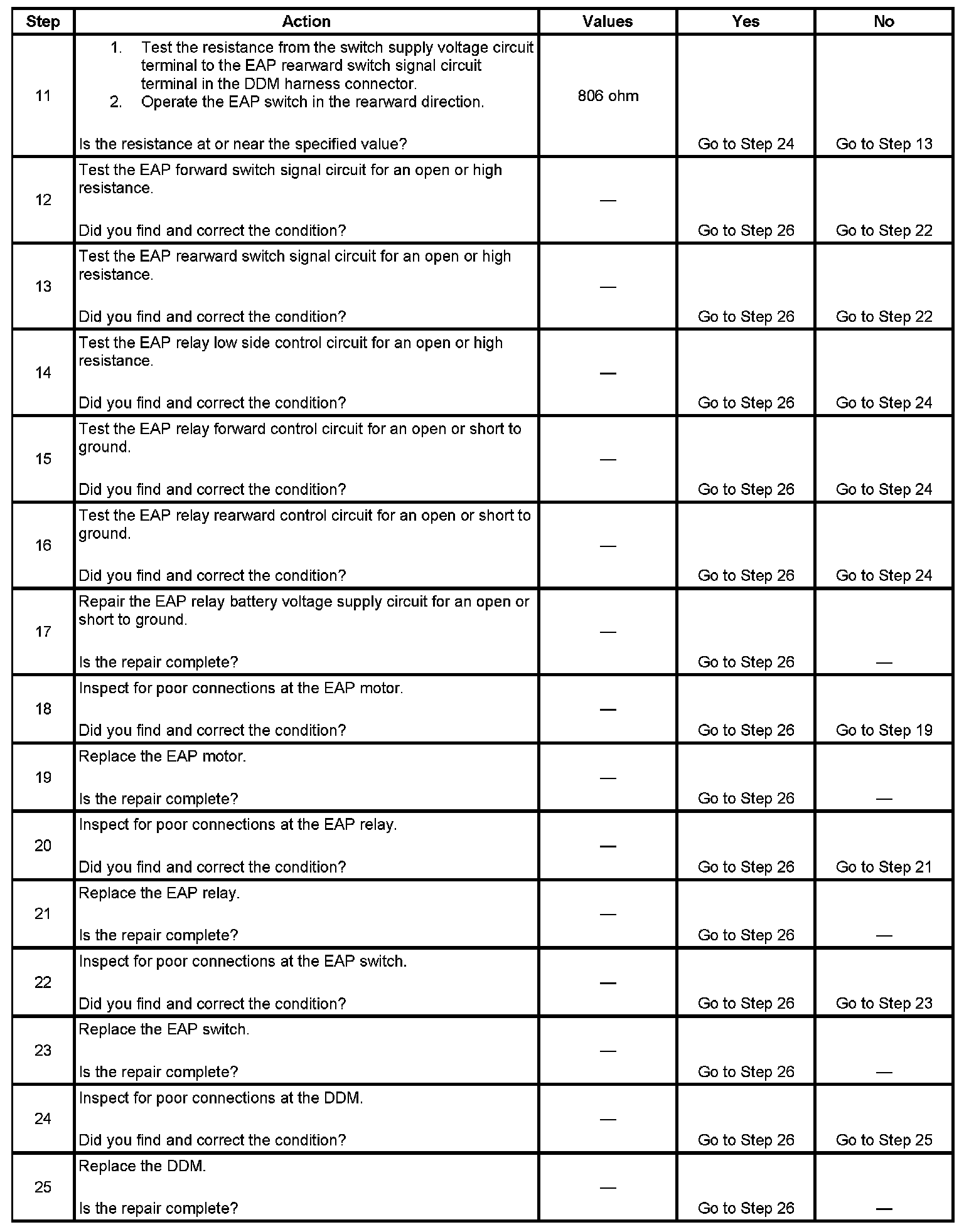

Step 11 - Step 25:

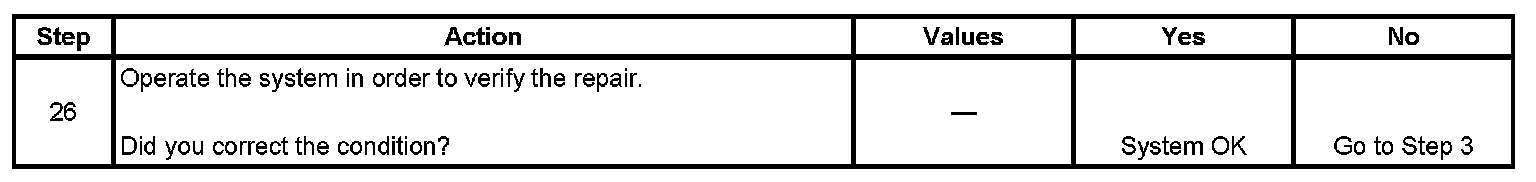

Step 26:
