Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Heated Seat Inoperative - Rear

Heated Seat Inoperative - Rear

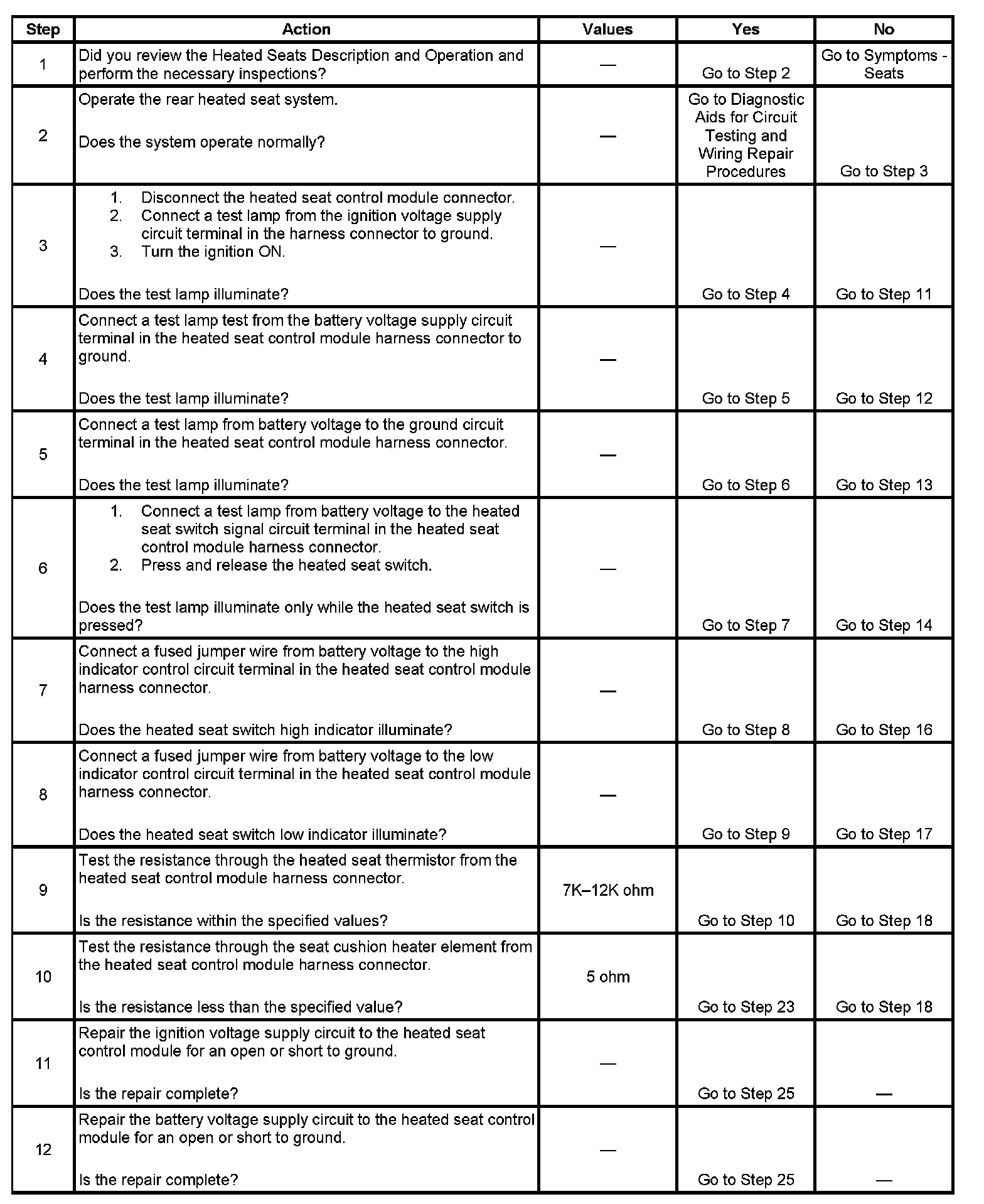

Step 1 - Step 12:

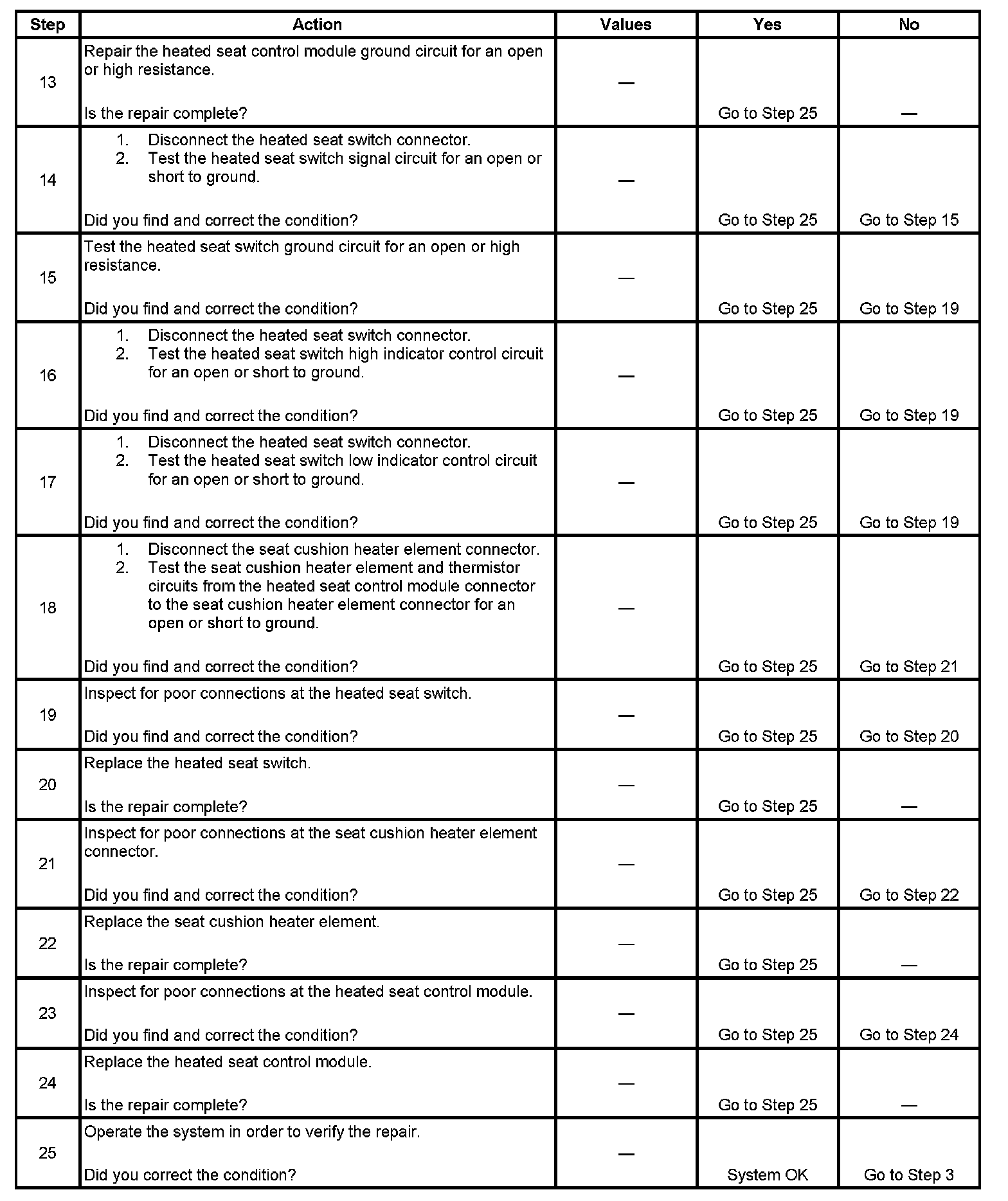

Step 13 - Step 25:
