4L80-E/4L85-E - Automatic Transmission
>>
Automatic Transmission Input Speed Sensor (AT ISS)
Automatic Transmission Input Speed Sensor (AT ISS)
Automatic Transmission Input Speed Sensor (AT ISS)

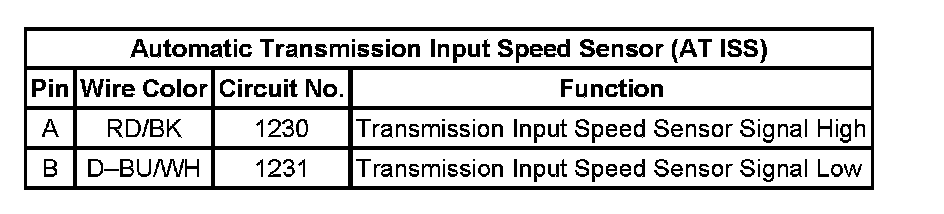

Automatic Transmission Input Speed Sensor (AT ISS):
