Home >> Chevy Truck >> 2006 >> Suburban 1/2 Ton 4WD V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Transmitter >> Steering Wheel Control Switch Assembly - Upper Left

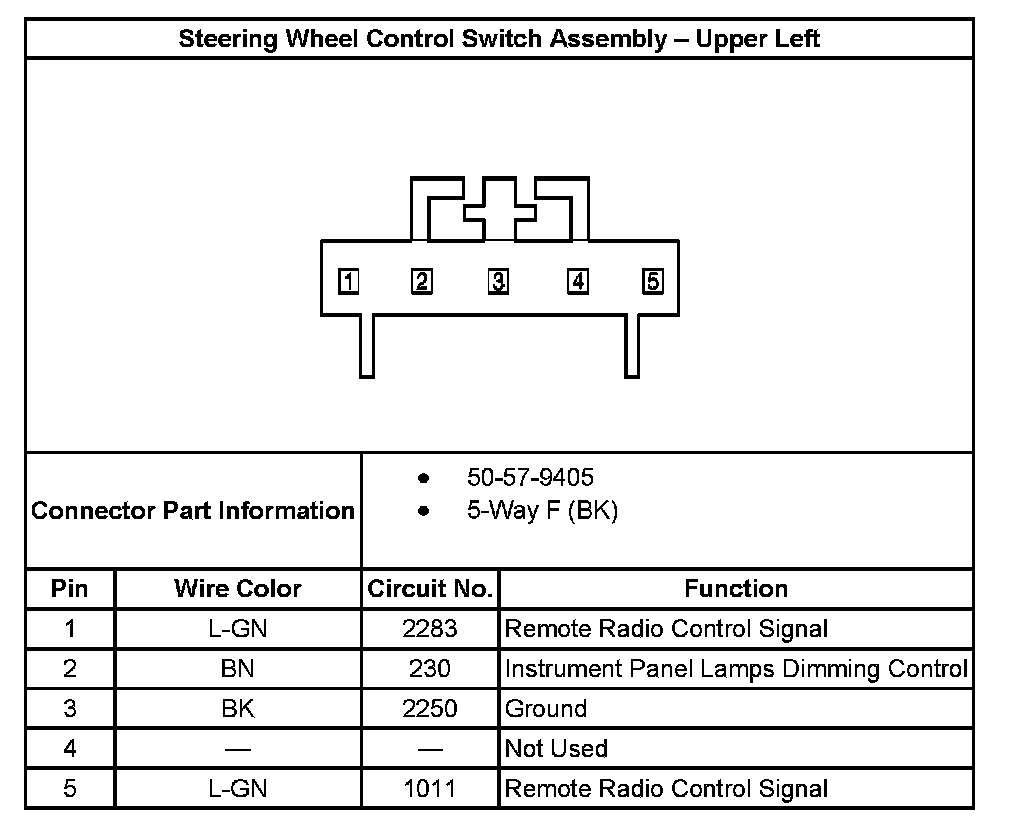

Steering Wheel Control Switch Assembly - Upper Left

Steering Wheel Control Switch Assembly - Upper Left:
