4L80-E/4L85-E Automatic Transmission
>>
Ball Check Valve Locations (Control Valve Body, Case Side)
>>
Service Repair Manual
Service Repair Manual
Component Location

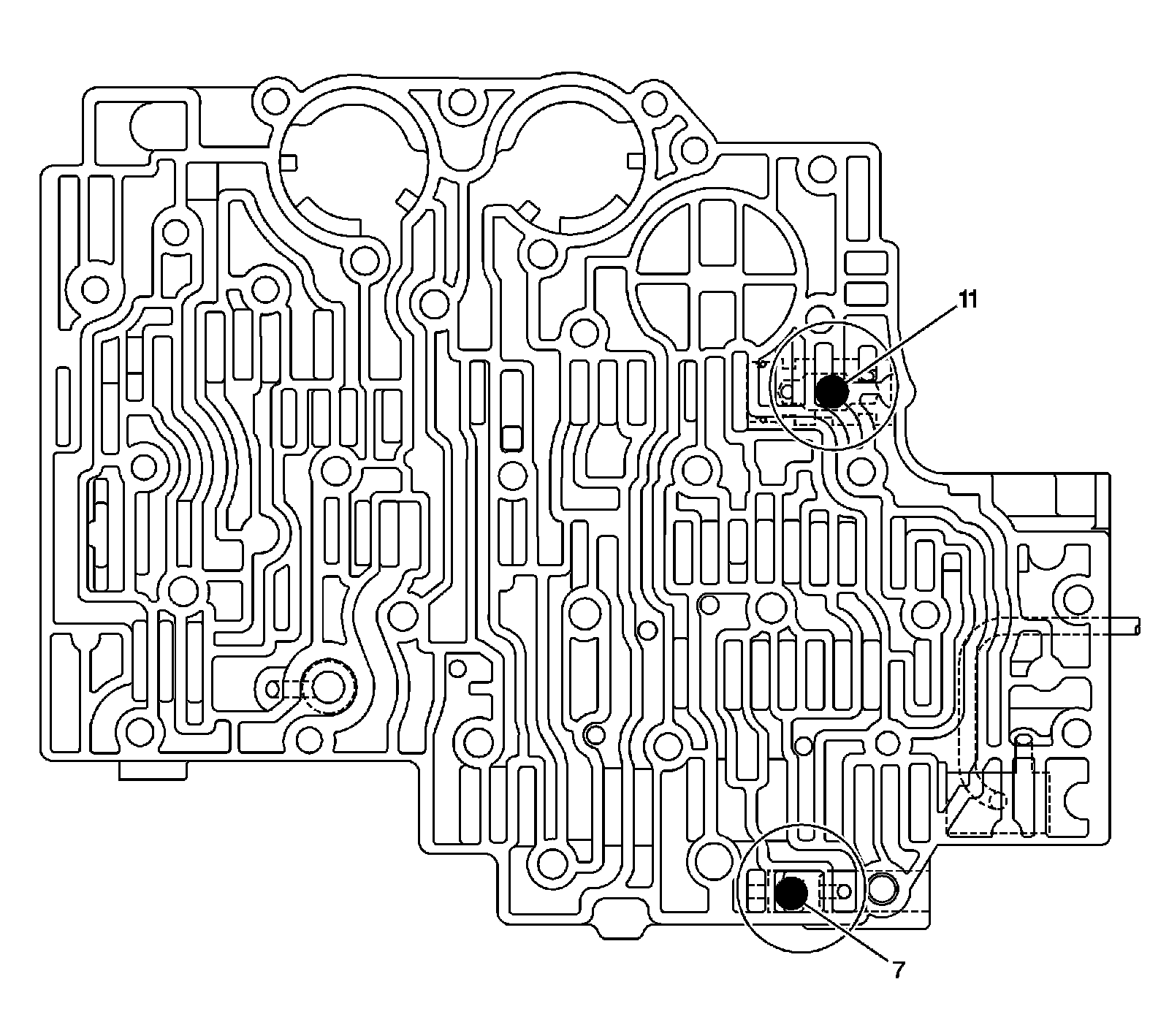

Ball Check Valve Locations (Control Valve Body, Case Side):
7 - Lo/Reverse
11 - 3rd Clutch/Reverse
