Engine General Specifications & Service Limits

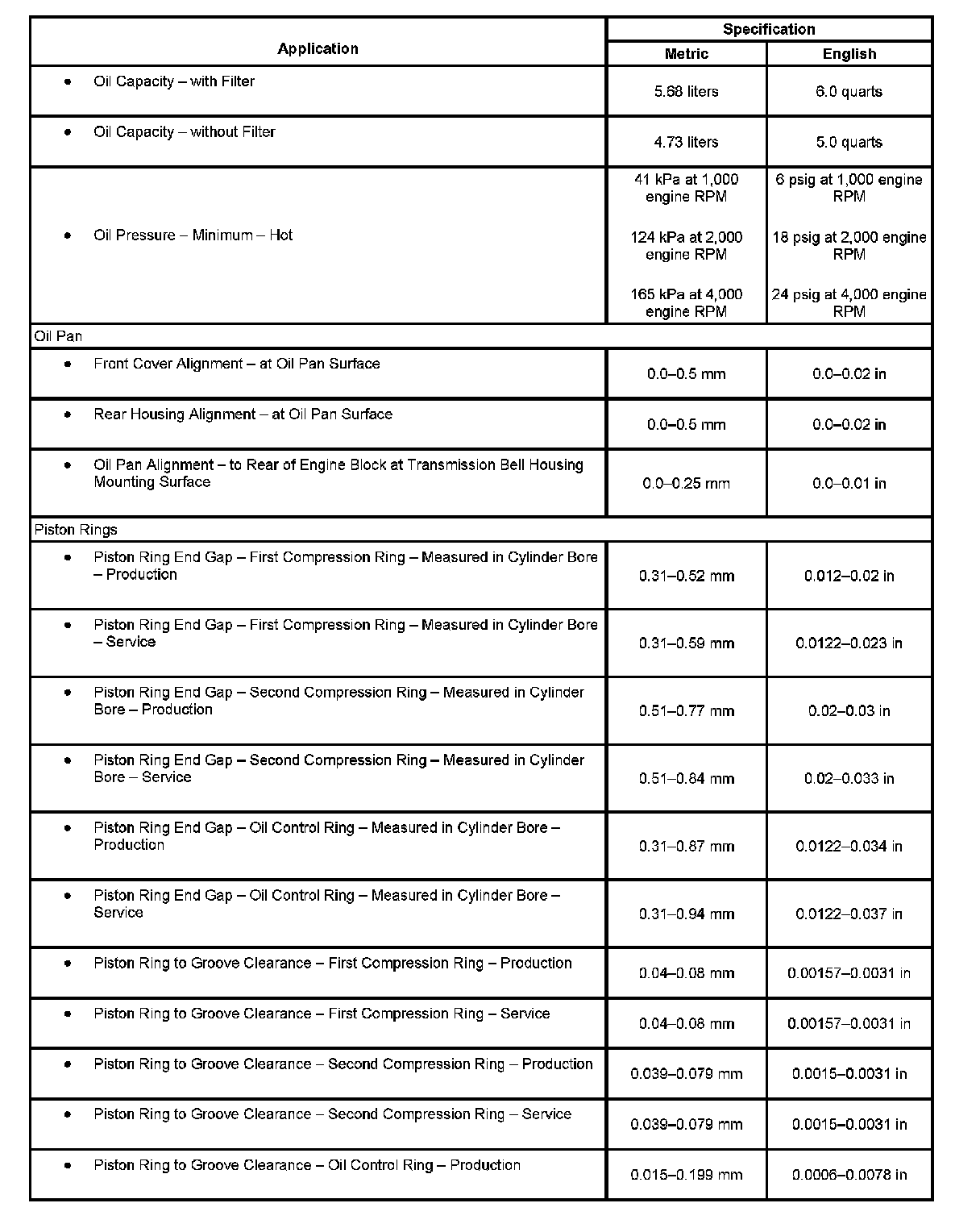

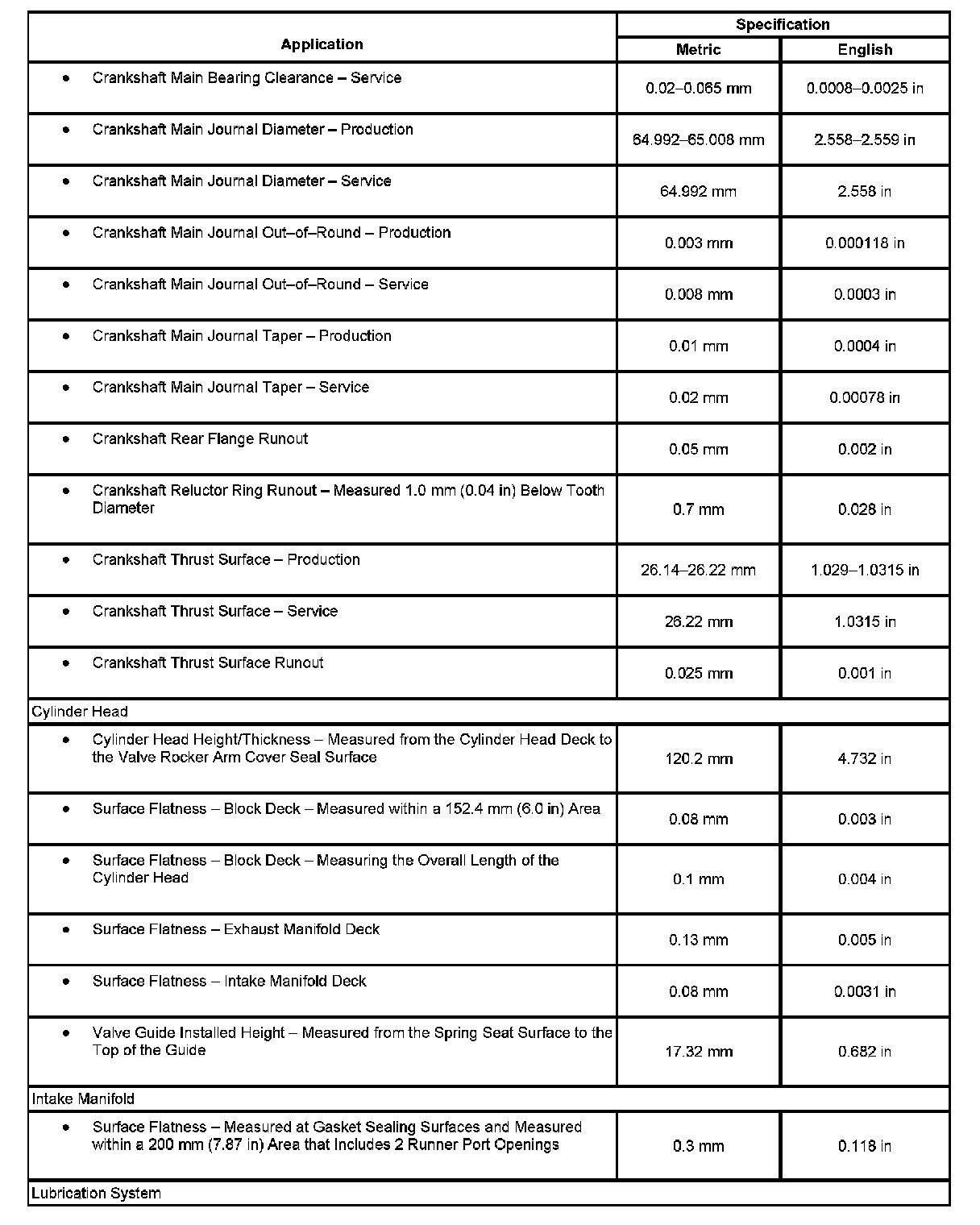

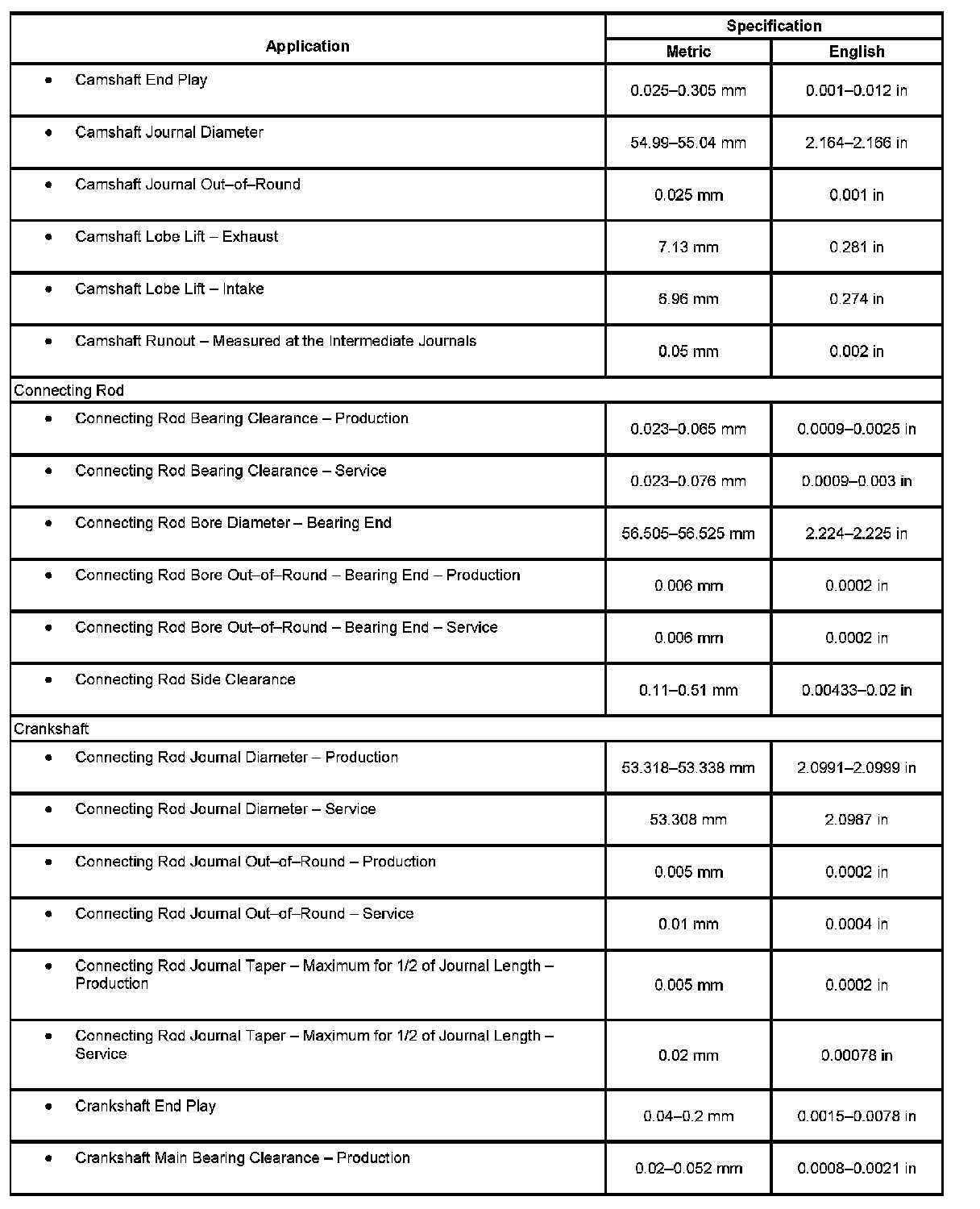

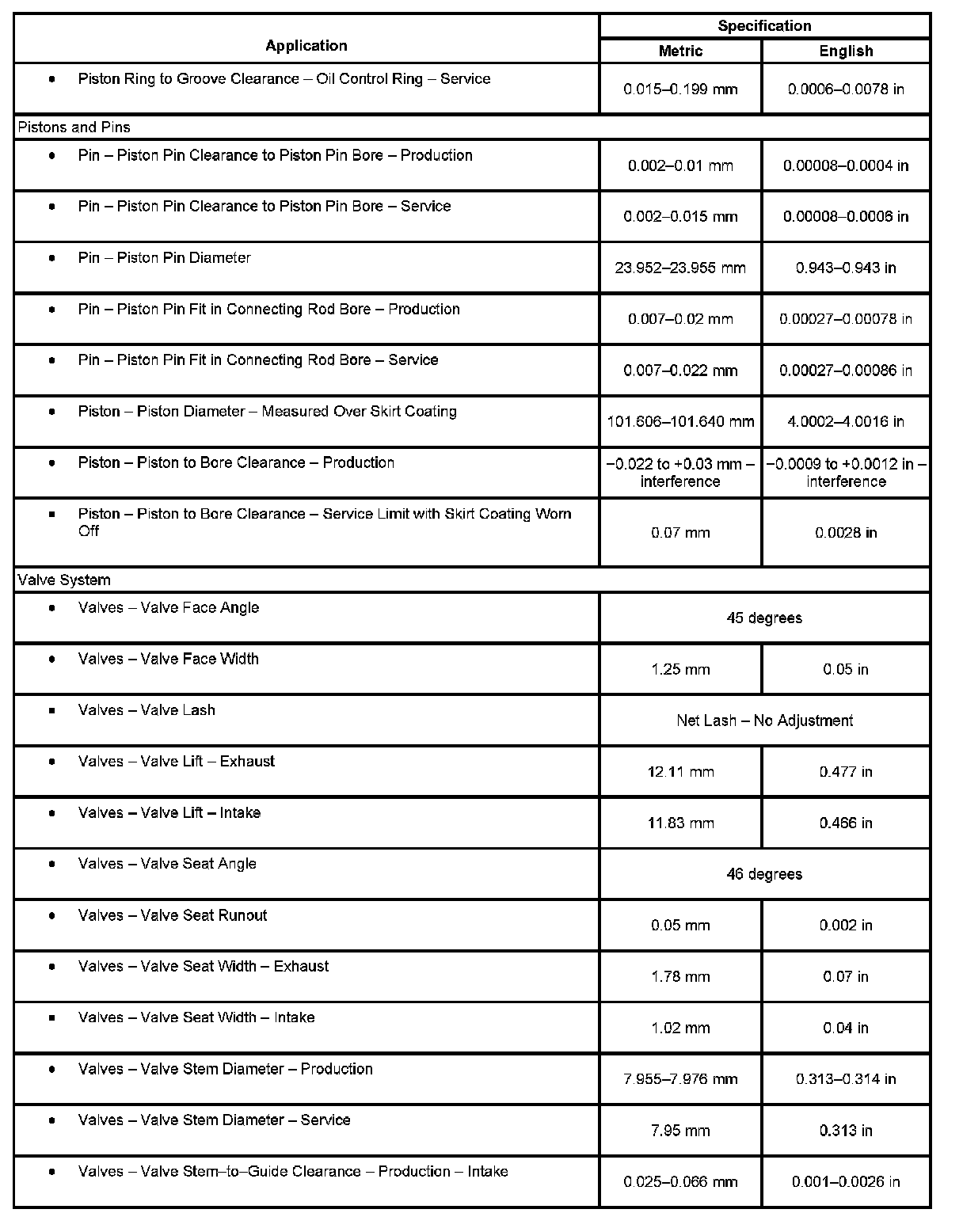

Engine Mechanical Specifications (LR4 VIN U):

Engine Mechanical Specifications (LR4 VIN U):

Engine Mechanical Specifications (LR4 VIN U):

Engine Mechanical Specifications (LR4 VIN U):

Engine Mechanical Specifications (LR4 VIN U):

Engine Mechanical Specifications (LR4 VIN U):
