Electronic Suspension

Suspension Controls Component Views

Front of the Frame





1 - Suspension Damper Solenoid - LF Connector
2 - Wheel Speed Sensor (WSS) - LF Chassis Connector
3 - Wheel Speed Sensor (WSS) - LF Pigtail Connector
4 - Suspension Position Sensor - LF Chassis Connector
5 - Suspension Position Sensor - LF Pigtail Connector
6 - Chassis Harness
7 - Suspension Damper Solenoid - RF Connector
8 - Wheel Speed Sensor (WSS) - RF Chassis Connector
9 - Suspension Position Sensor - RF Chassis Connector
10 - Frame

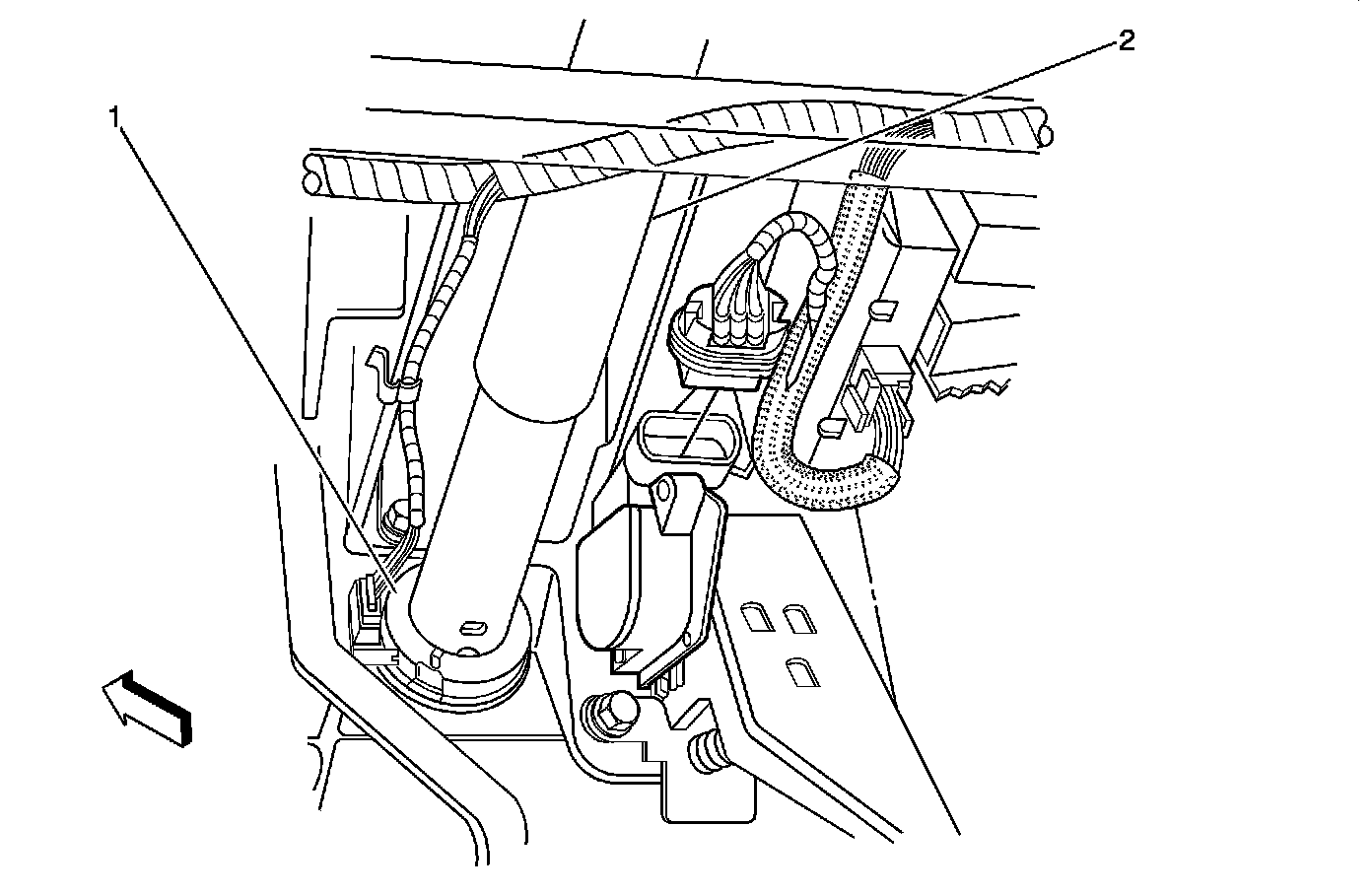

Steering Wheel Position Sensor





1 - Steering Wheel Position Sensor
2 - Steering Column

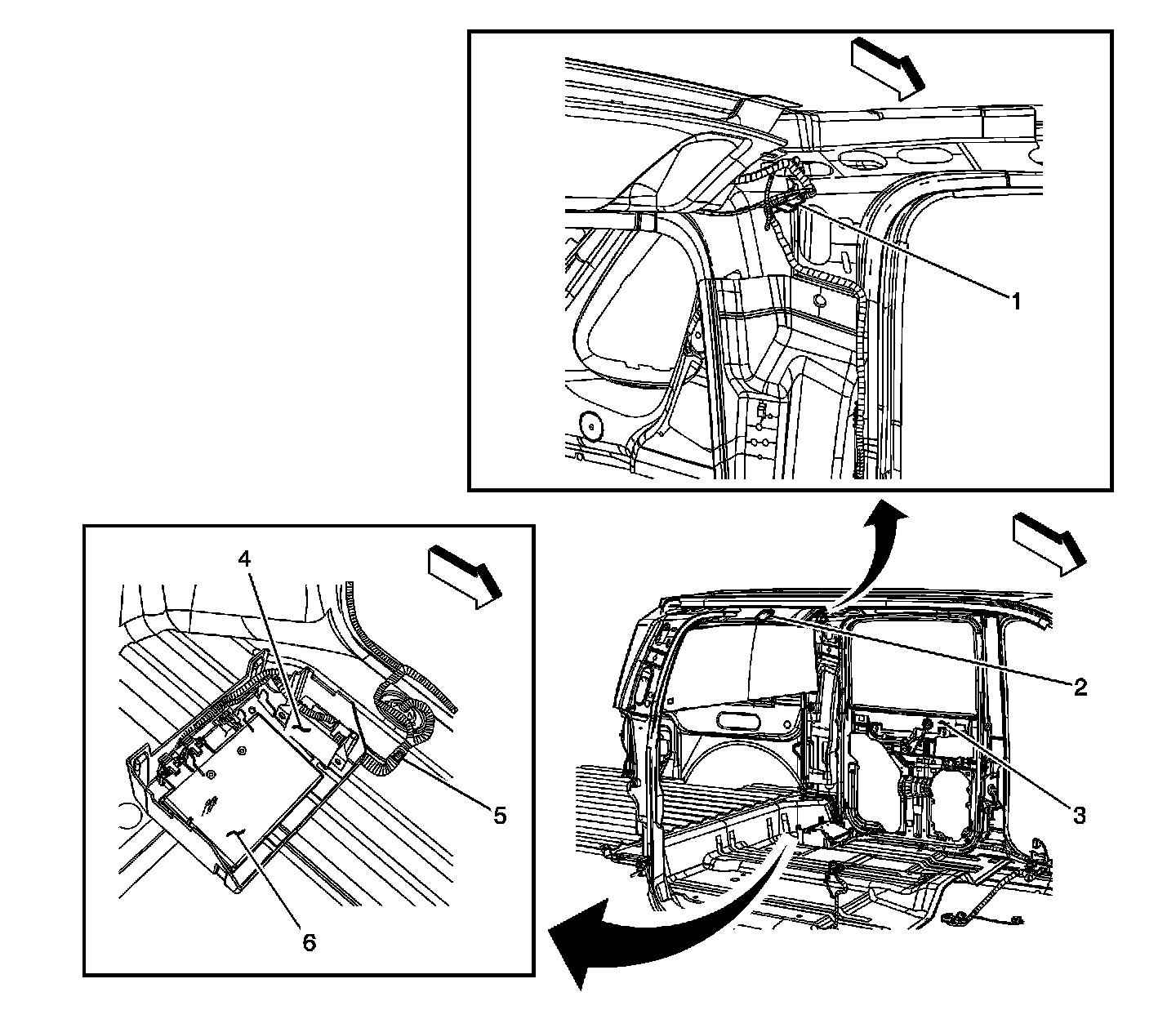

Under Left Rear Passenger Seat (Avalanche and Escalade EXT)





1 - C415 Body Extension Jumper Harness to Body Harness
2 - Rear Parking Assist (RPA) Display
3 - Left Rear Inner Door Panel
4 - Rear Object Sensor Control Module
5 - Rear Parking Assist (RPA) Diagnostic Connector
6 - Electronic Suspension Control (ESC) Module

LR Suspension Components (2500 Series)





1 - Shock Absorber - LR
2 - Suspension Damper Solenoid - LR Connector
3 - Frame

LR Suspension Components (1500 Series)





1 - Suspension Position Sensor - LR
2 - Frame
3 - Suspension Position Sensor - LR Connector

RR of the Passenger Compartment (Except Avalanche/Escalade EXT)





1 - Body Side Inner Panel
2 - Body Wiring Harness
3 - Electronic Suspension Control (ESC) Module Connector C1
4 - Electronic Suspension Control (ESC) Module Connector C2
5 - Electronic Suspension Control (ESC) Module Connector C3

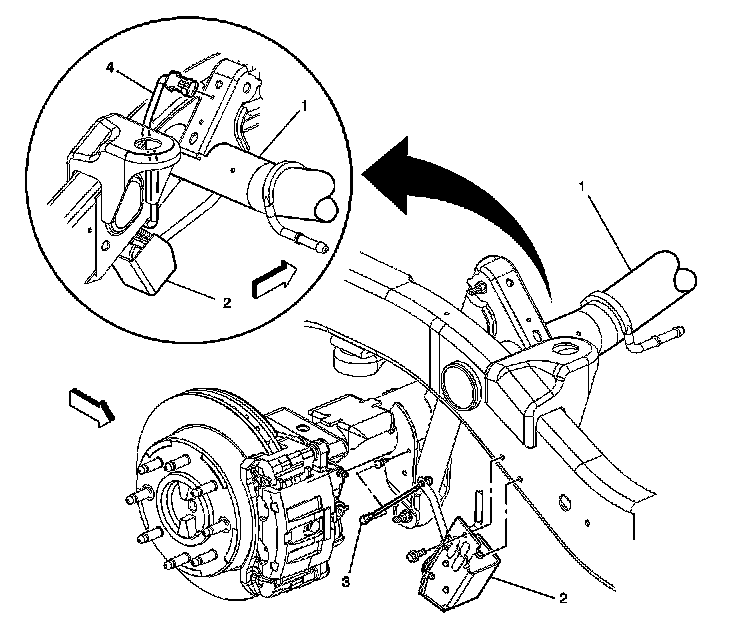

RR Suspension Components (2500 Series)





1 - Axle
2 - Suspension Position Sensor - RR
3 - Sensor Arm
4 - Suspension Position Sensor - RR Connector

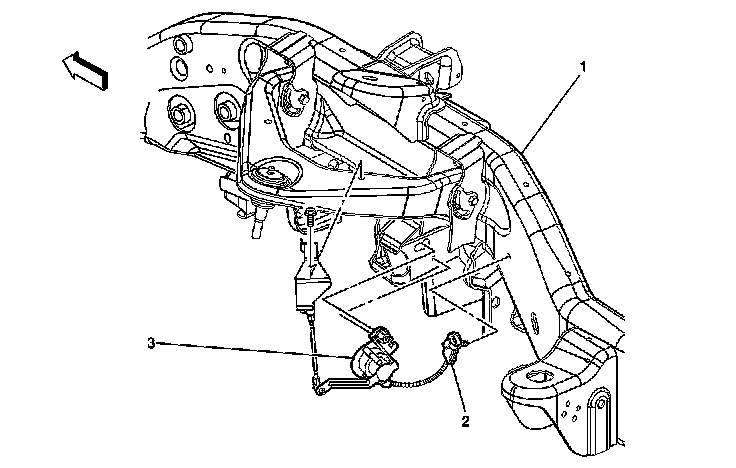

Suspension Position Sensor - LF (Suburban/Yukon XL)





1 - Frame
2 - Suspension Position Sensor - LF Connector
3 - Suspension Position Sensor - LF
