Shift Solenoid, A/T



Automatic Transmission Internal Connector End Views

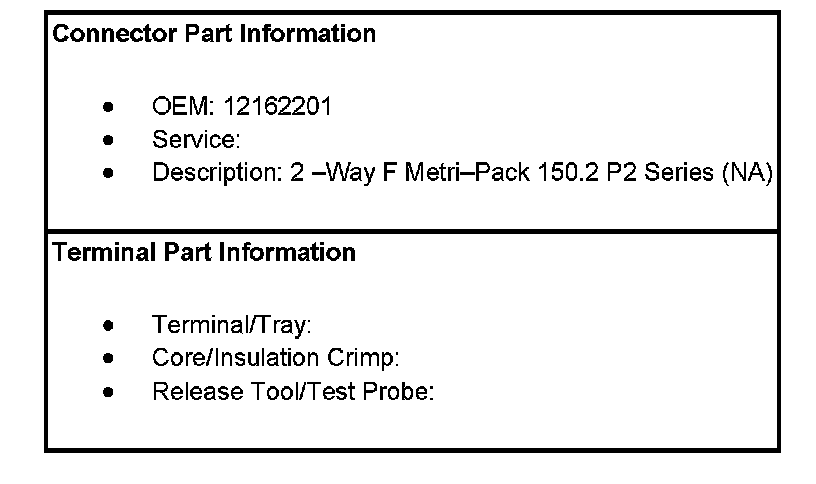

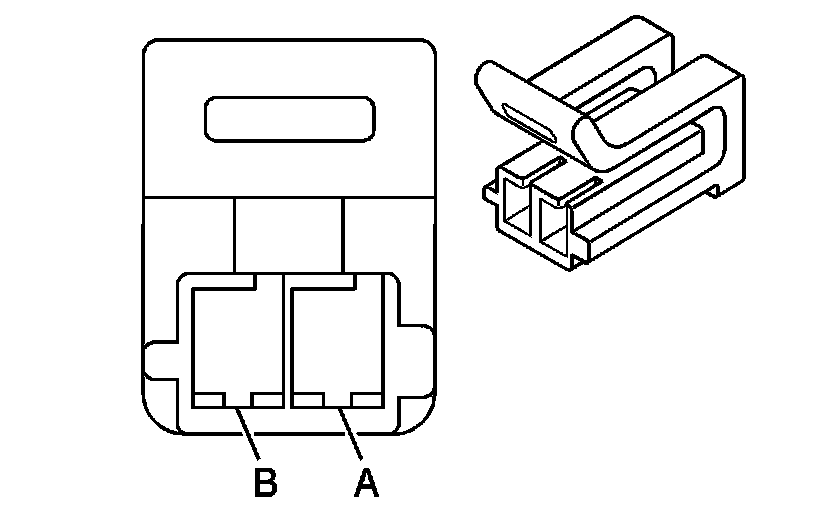

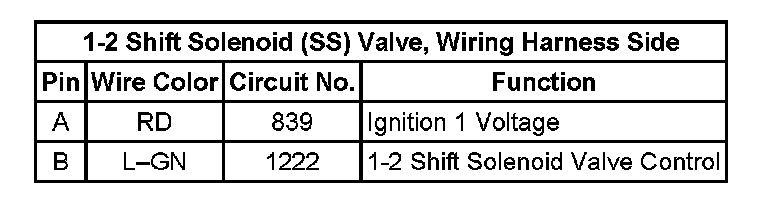

1-2 Shift Solenoid (SS) Valve, Wiring Harness Side:

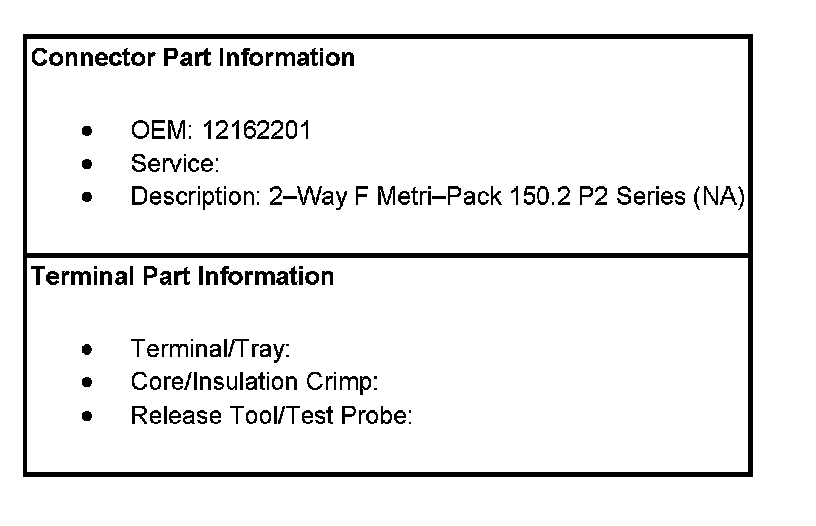

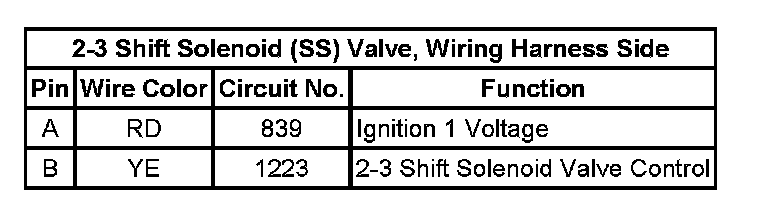

2-3 Shift Solenoid (SS) Valve, Wiring Harness Side:

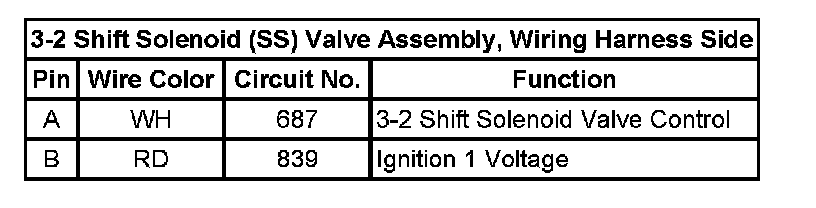

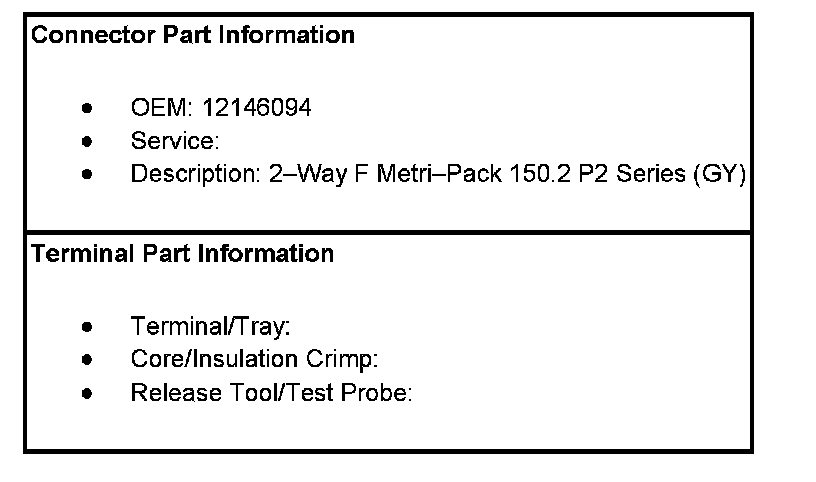

3-2 Shift Solenoid (SS) Valve Assembly, Wiring Harness Side:
