Auxiliary Water Pump Relay
>>
HVAC System - Manual
HVAC System - Manual

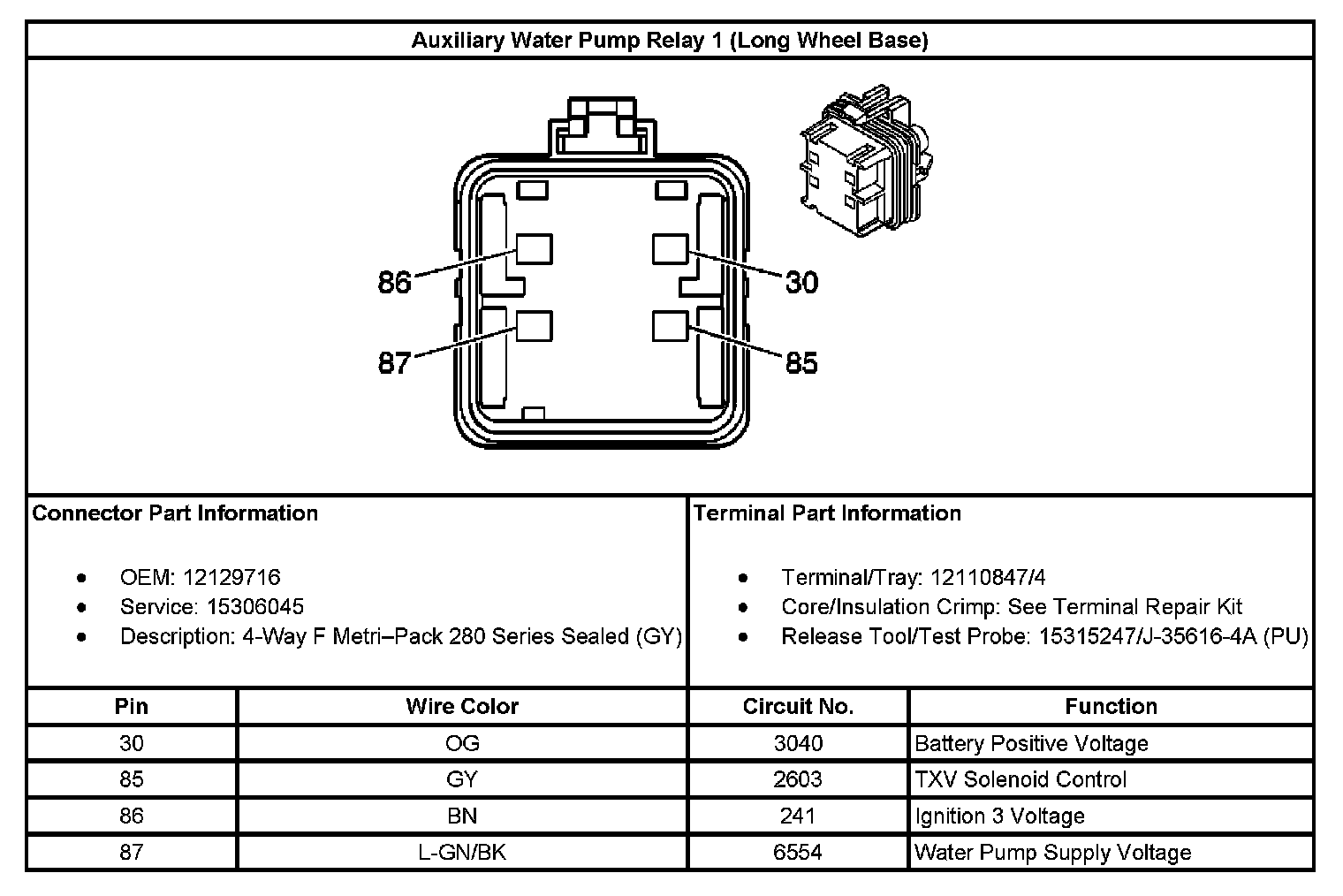

Auxiliary Water Pump Relay 1 (Long Wheel Base):
