C600 - C699

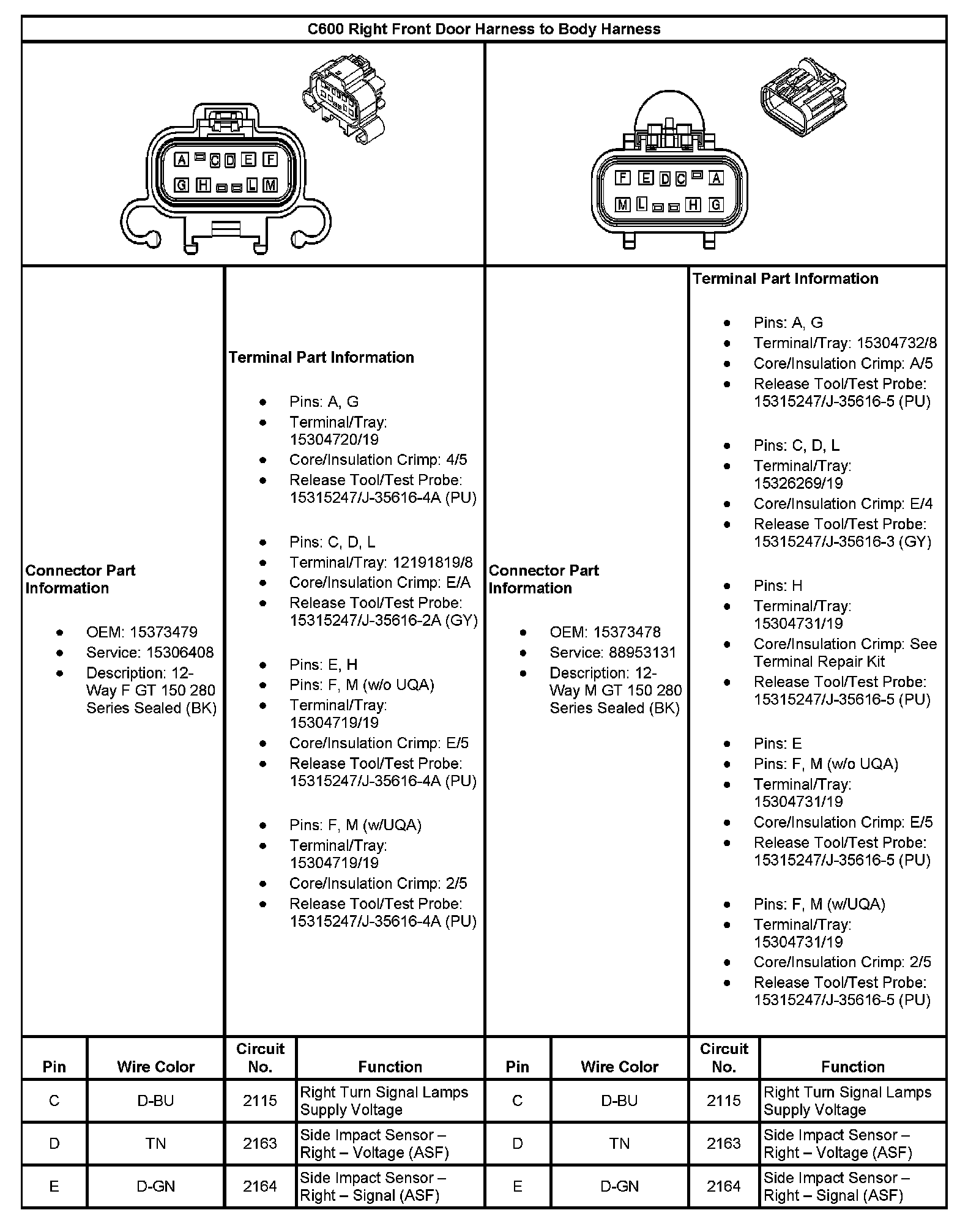

C600 Right Front Door Harness To Body Harness (Part 1):

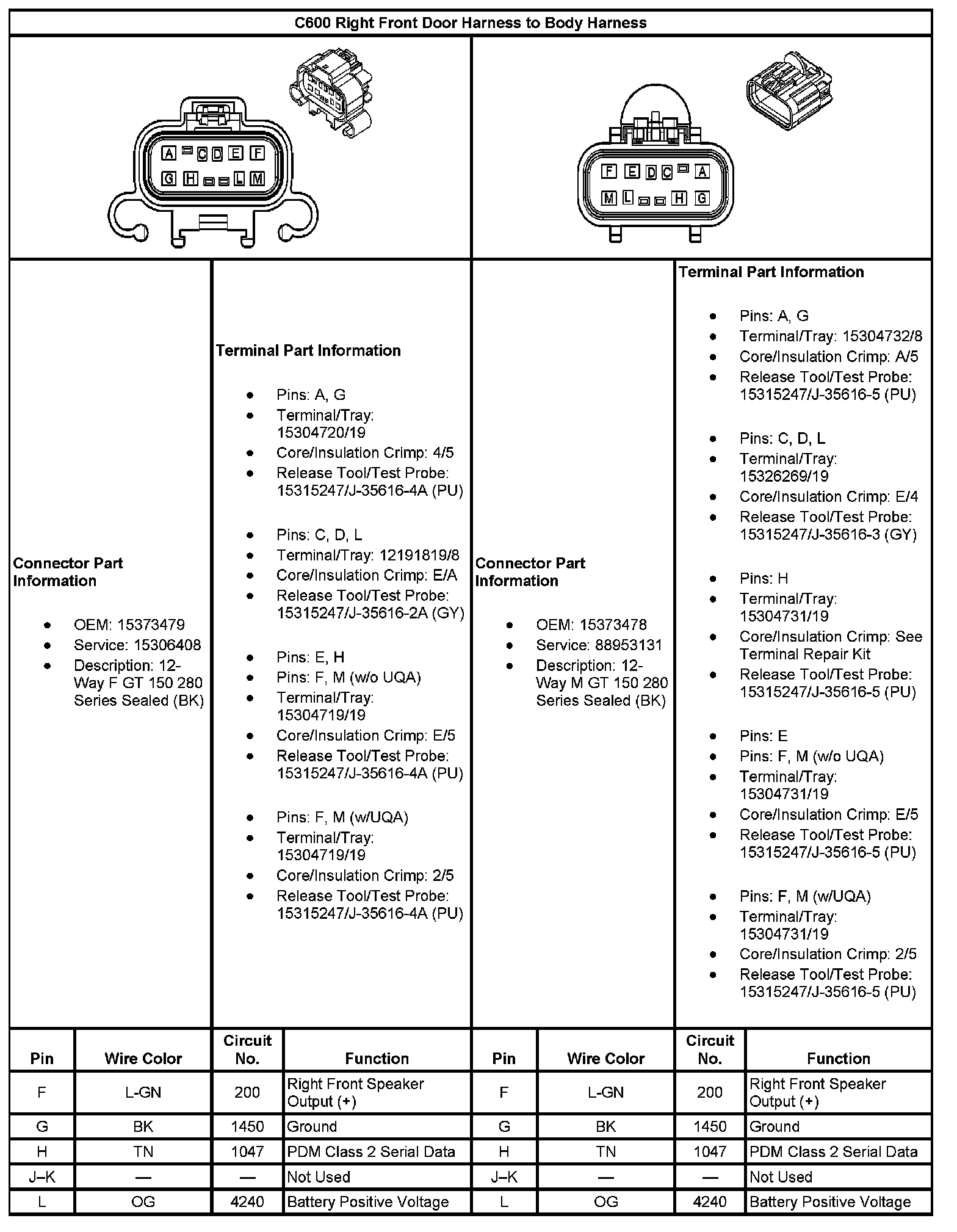

C600 Right Front Door Harness To Body Harness (Part 2):

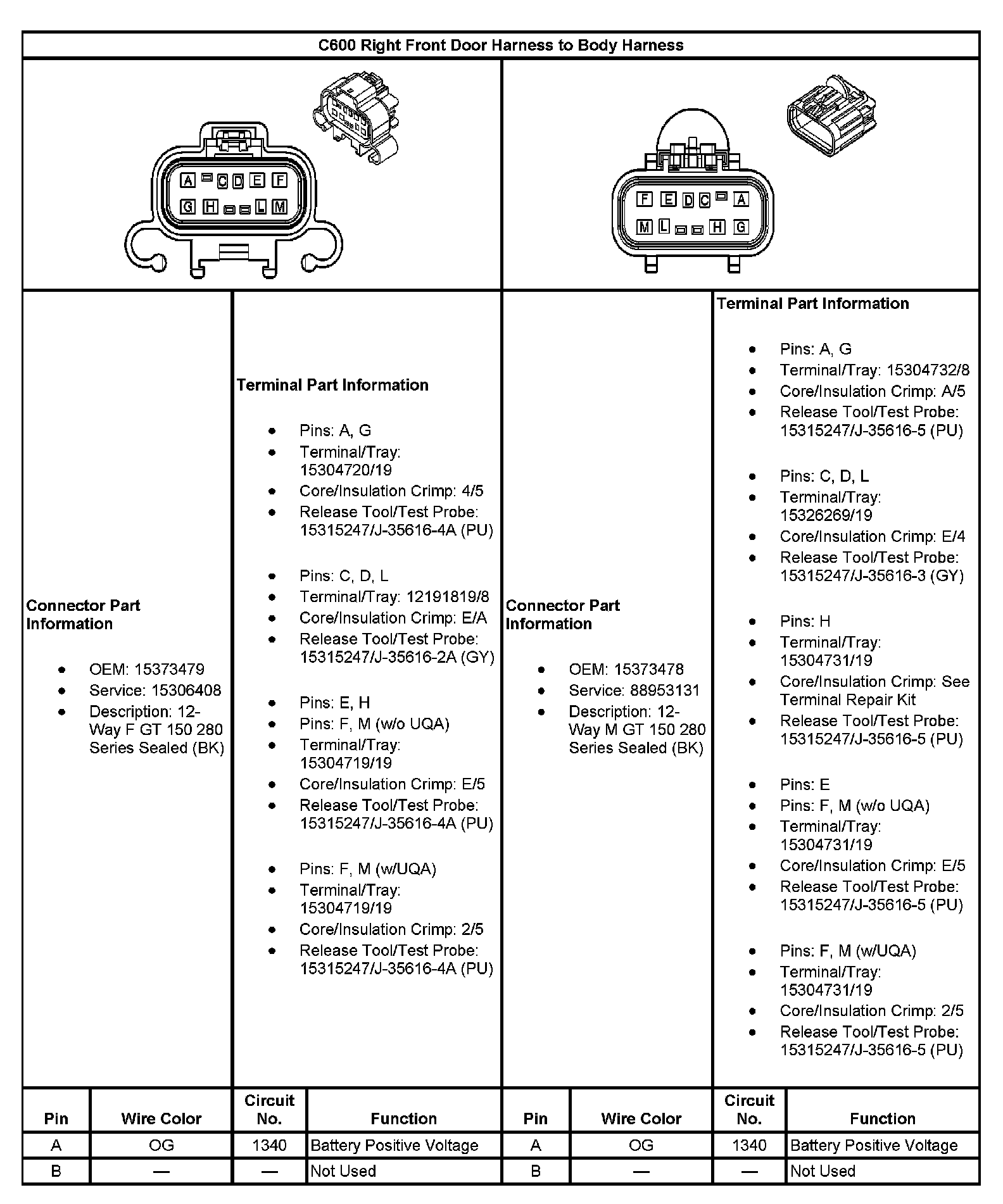

C600 Right Front Door Harness To Body Harness (Part 3):



C600 Right Front Door Harness To Body Harness (Part 4):
