Engine Harness Routing - Left Front
Engine Harness Routing - Left Front

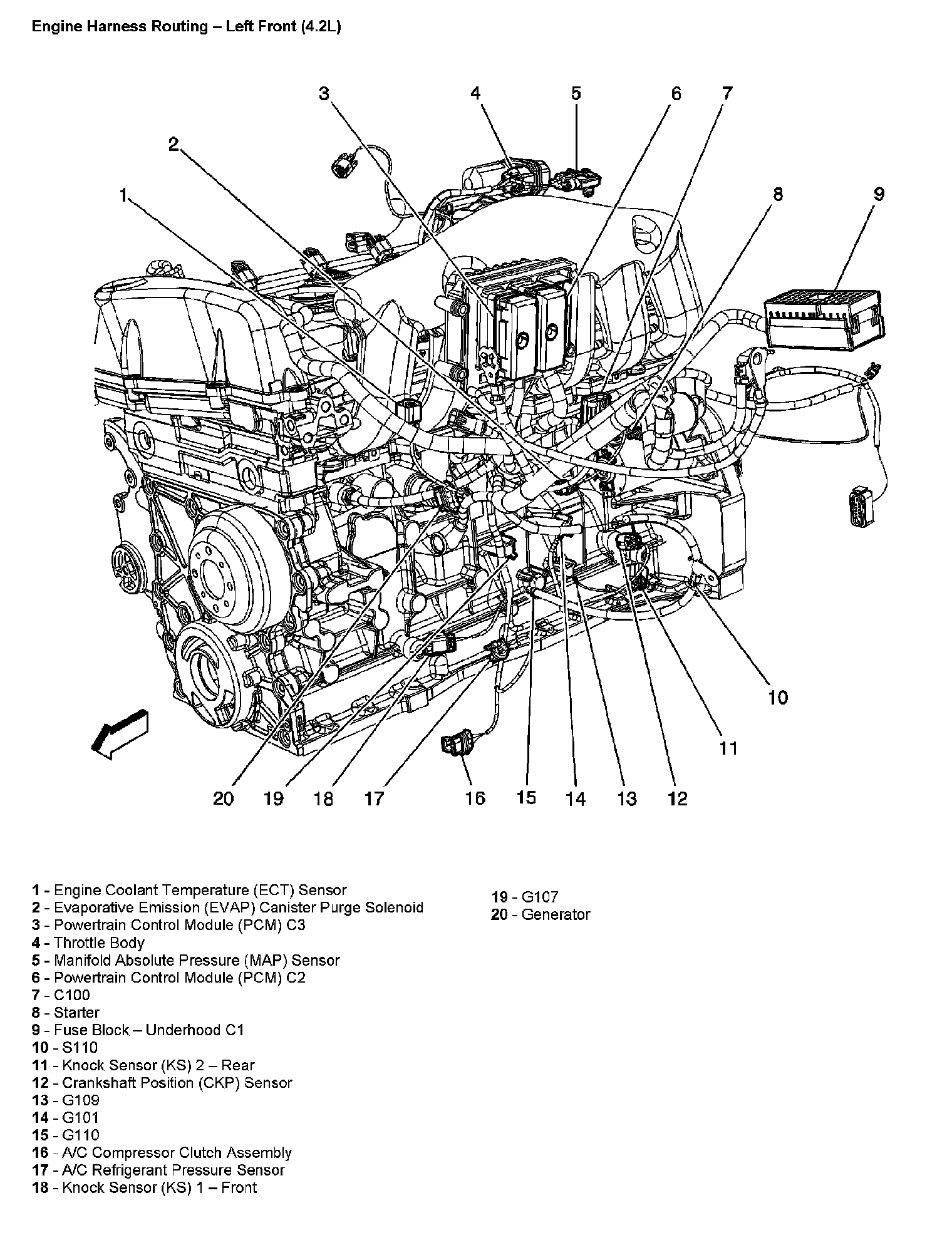

Engine Harness Routing - Left Front:
