Spare Tire Carrier: Service and Repair

Tire Hoist and Shaft Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the spare tire from the spare tire carrier.

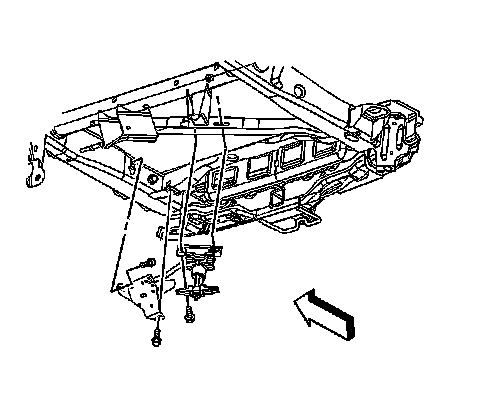

3. Remove spare wheel hoist assembly mounting bolts from the frame.
4. Remove the spare wheel hoist assembly from the vehicle.

Installation Procedure





1. Install the spare wheel hoist assembly to the vehicle.
2. Install spare wheel hoist assembly mounting bolts to the frame
^ Tighten the spare wheel hoist assembly mounting bolts to the frame to 50 N.m (37 lb in).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the spare tire to the spare tire carrier.
4. Lower the vehicle.
