DTC P2771 (5.3L and 6.0L)
Circuit Description

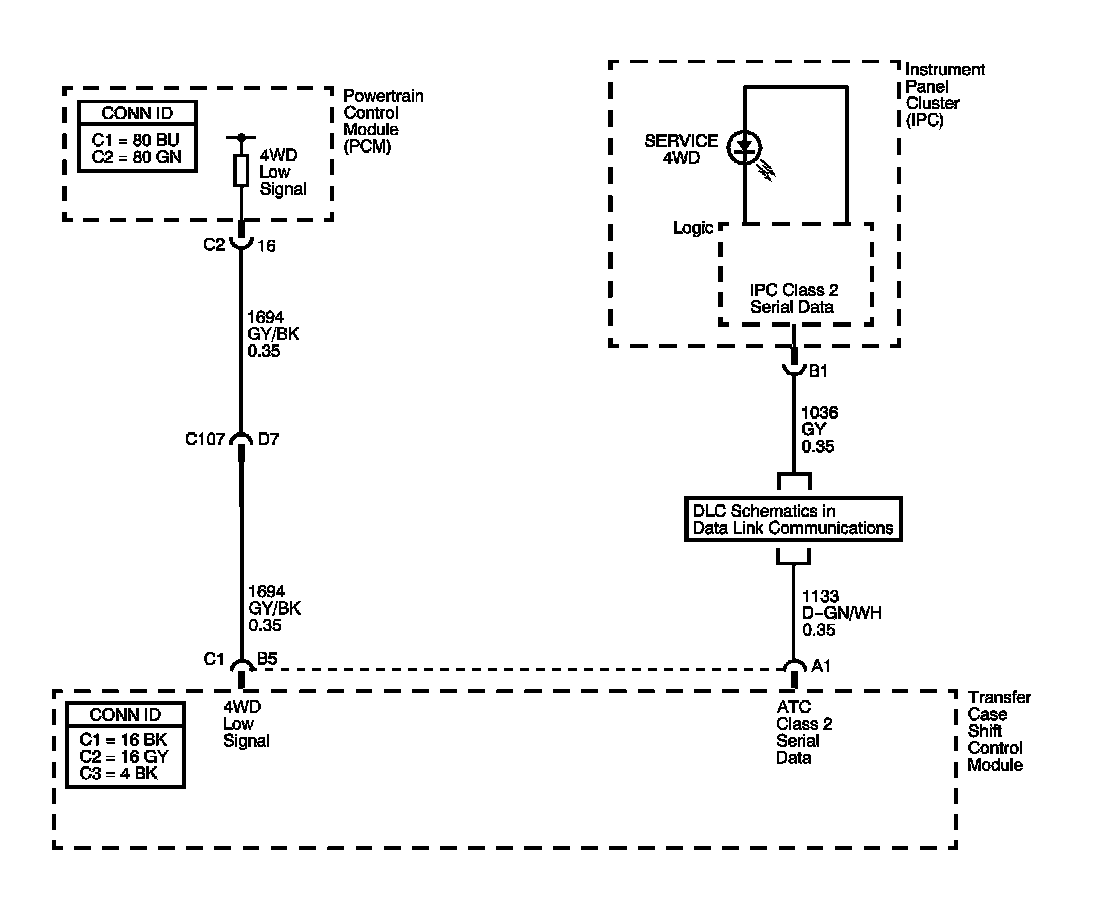

The four wheel drive (4WD) low circuit consists of the engine control module (ECM), a transfer case control module and the circuit wiring. The transfer case control module controls the 4WD low signal circuit. When the operator selects 4WD low, the transfer case control module grounds the signal circuit, and the 4WD low signal voltage on the circuit changes from ignition voltage to zero volts. The ECM then compensates for transfer case gear reduction in the transmission output shaft speed (OSS) sensor signal. The ECM uses the transmission OSS sensor signal to adjust shift points, line pressure and torque converter clutch (TCC) scheduling.
When the ECM detects a continuous open, short to ground or short to voltage in the 4WD low circuit, then DTC P2771 sets. DTC P2771 is a type B DTC.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P2771 Four Wheel Drive (4WD) Low Switch Circuit
Conditions for Running the DTC
^ No TP sensor DTCs P0122, or P0123.
^ No VSS assembly DTCs P0502 or P0503.
^ No TCC solenoid valve DTC P0740.
^ No TCC stuck ON DTC P0742.
^ No 1-2 SS valve DTCs P0751 or P0753.
^ No 2-3 SS valve DTCs P0756 or P0758.
^ No TFP manual valve position switch DTC P1810.
^ No TCC PWM solenoid valve DTC P2761.
^ The engine run time is greater than 30 seconds.
^ The engine is not in fuel cutoff.
^ The vehicle speed is greater than 20 km/h (12 mph).
^ The TP angle is 10-99 percent.
^ The engine torque is 54 - 542 Nm (40 - 400 ft. lbs.).
^ The engine vacuum is 0 - 105 kPa (0 - 15 psi).
^ The gear range is D4.
^ The shift solenoid performance counters are zero.
^ The TFT is 20 - 130°C (68 - 266°F).
Conditions for Setting the DTC
DTC P2771 sets if one of the following conditions occurs:
Condition 1
^ The 4WD low switch is in 4WD low.
^ The transfer case is not in 4WD low.
^ The TCC slip speed is -3,000 to -50 RPM.
^ The transfer case ratio is 0.08-1.75, the transfer case ratio is the engine speed divided by the transfer case output speed.
^ All conditions are met for 5 seconds.
Condition 2
^ The 4WD low switch is not in 4WD low.
^ The transfer case is in 4WD low.
^ The TCC is commanded ON.
^ The TCC slip speed is 100 to 3,000 RPM.
^ The transfer case ratio is 2.4-2.9.
^ All conditions are met for 10 seconds.
Action Taken When the DTC Sets
^ The ECM illuminates the malfunction indicator lamp (MIL) during the second consecutive trip in which the Conditions for Setting the DTC are met.
^ The ECM commands a normal shift pattern, not a 4WD low shift pattern.
^ The ECM records the operating conditions when the Conditions for Setting the DTC are met. The ECM stores this information as Freeze Frame and Failure Records.
^ The ECM stores DTC P2771 in ECM history during the second consecutive trip in which the Conditions for Setting the DTC are met.
Conditions for Clearing the MIL/DTC
^ The ECM turns OFF the MIL during the third consecutive trip in which the diagnostic test runs and passes.
^ A scan tool can clear the MIL/DTC.
^ The ECM clears the DTC from ECM history if the vehicle completes 40 warm-up cycles without an emission-related diagnostic fault occurring.
^ The ECM cancels the DTC default actions when the ignition switch is OFF long enough in order to power down the ECM.
Test Description
The numbers below refer to the step numbers on the diagnostic table.

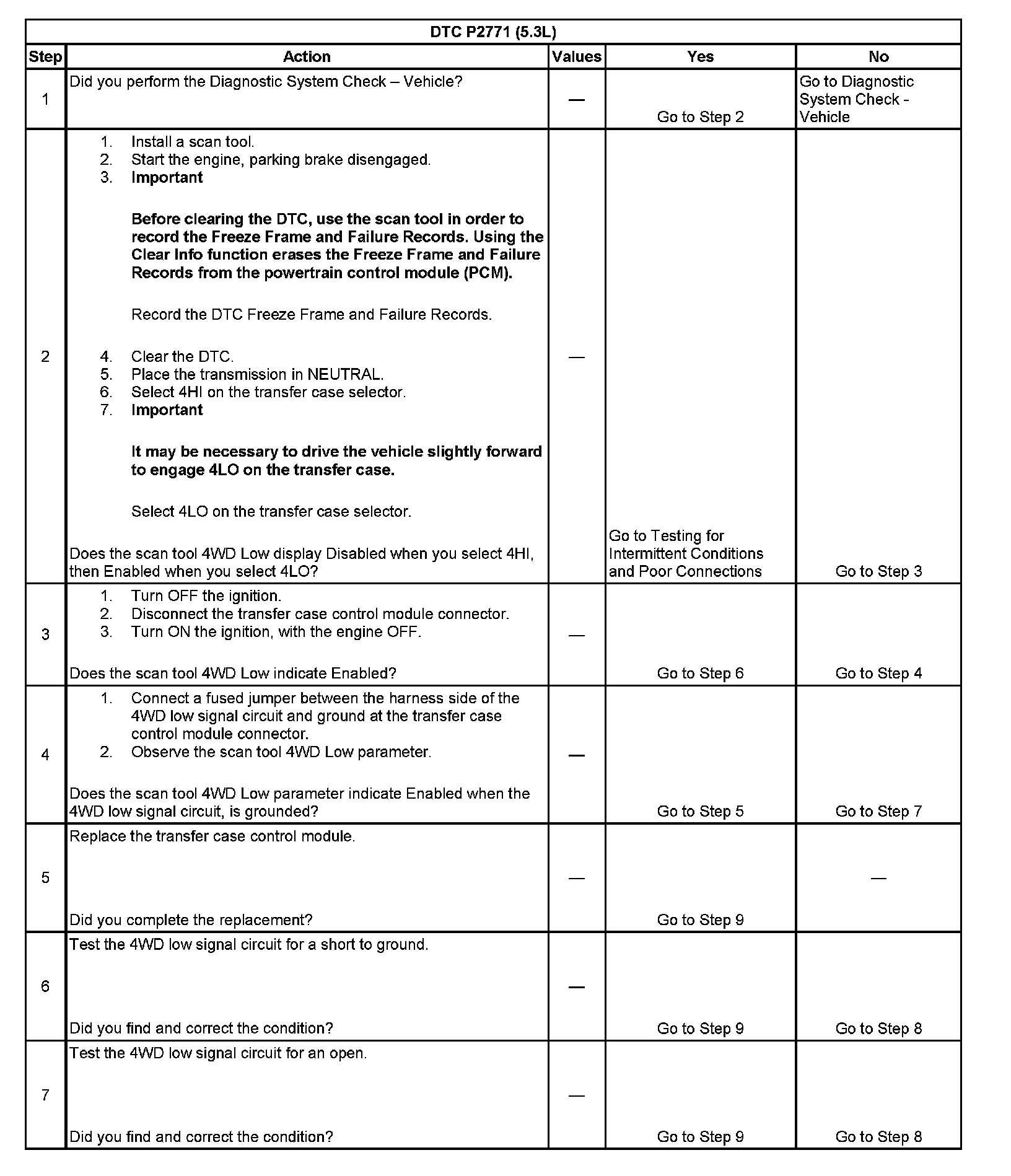

3. This step tests for a short to ground in the 4WD low signal circuit.
4. This step tests for an open in the 4WD low signal circuit or a faulty transfer case control module.
