Compressor/Pump, Suspension Control
Compressor/Pump, Suspension Control
Suspension
Controls Connector End Views

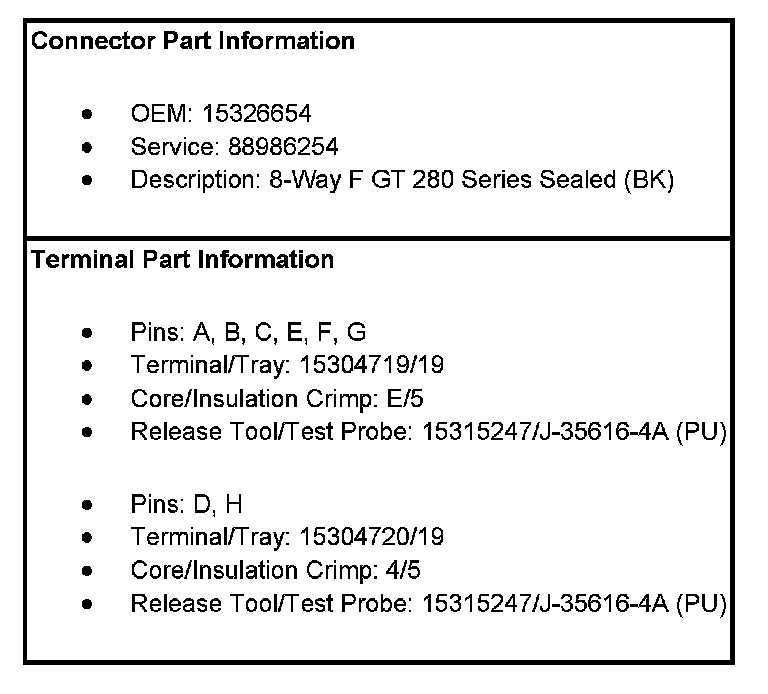

Air Suspension Compressor Assembly C1:
