Map Light: Diagrams

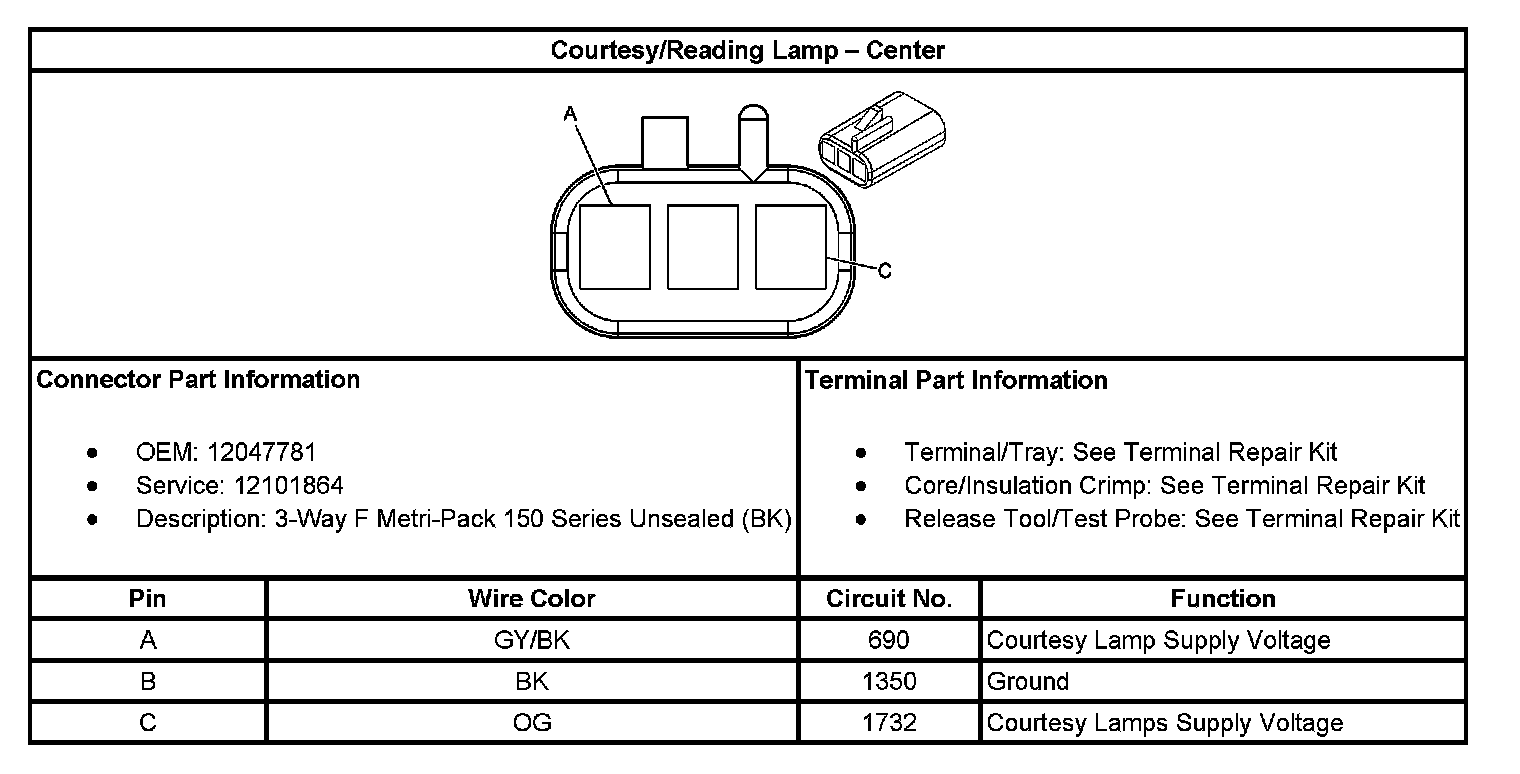

Courtesy/Reading Lamp - Center:

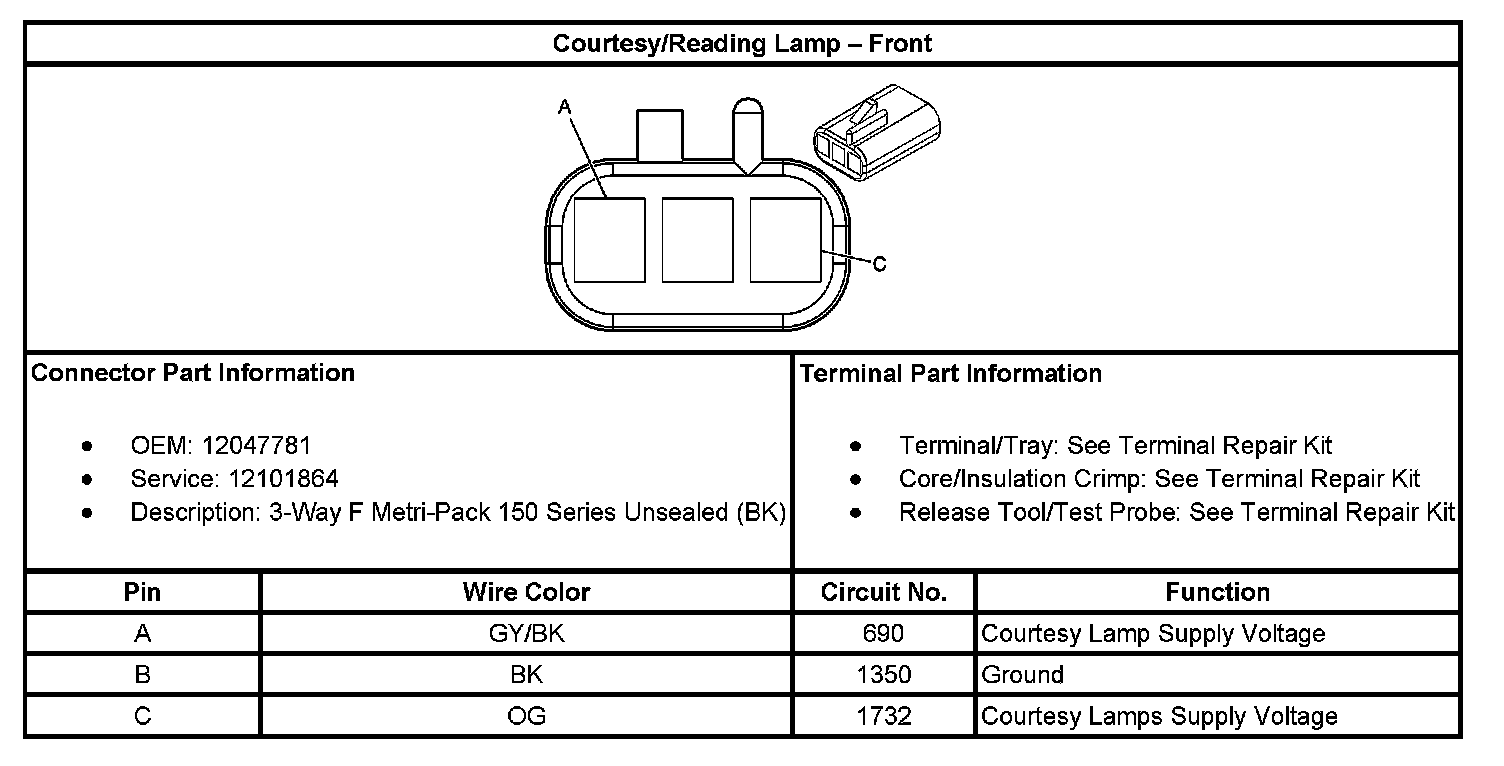

Courtesy/Reading Lamp - Front:

Courtesy/Reading Lamp (3rd Row) - Left (Early Production Only W/Long Wheel Base):

Courtesy/Reading Lamp (3rd Row) - Right (Early Production Only W/Long Wheel Base):
