Home >> Chevy Truck >> 2006 >> TrailBlazer 4WD V8-6.0L VIN H >> Repair and Diagnosis >> Powertrain Management >> Locations >> Upper Right Side of the Engine - Front

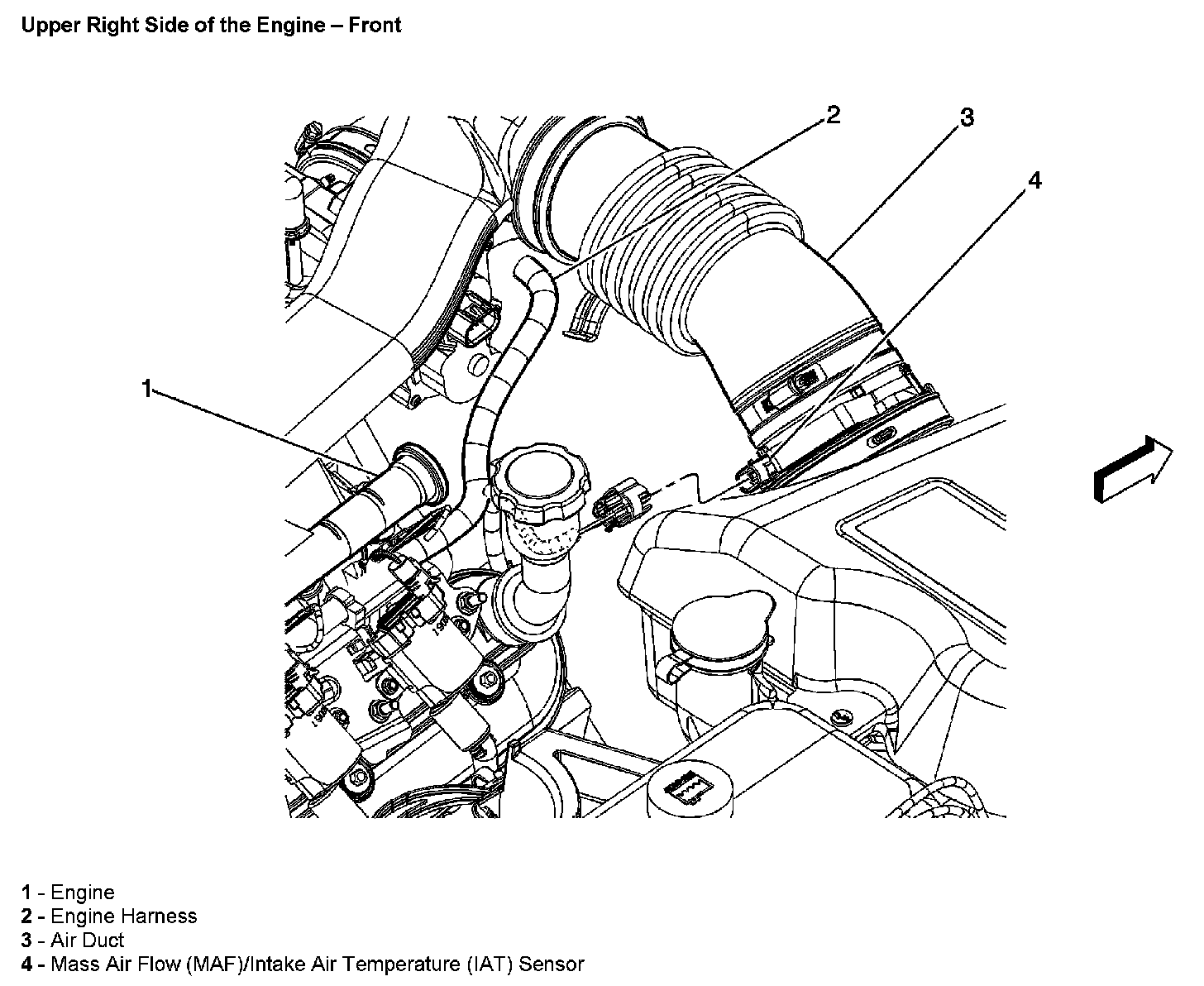

Upper Right Side of the Engine - Front

Upper Right Side Of The Engine - Front:
