Locating Pin Replacement - Sliding Door (Pillar Side)

Locating Pin Replacement - Sliding Door (Pillar Side)

Removal Procedure


Important: By removing the power sliding door (PSD) 15A fuse, the low current logic power for both the LH and RH power sliding door modules (PSDM) will be interrupted and both PSDs will be inoperative.


1. If equipped with a power sliding door, disable the PSD system by removing the PSD 15A fuse from the instrument panel (I/P) fuse block.
2. Open the sliding door.

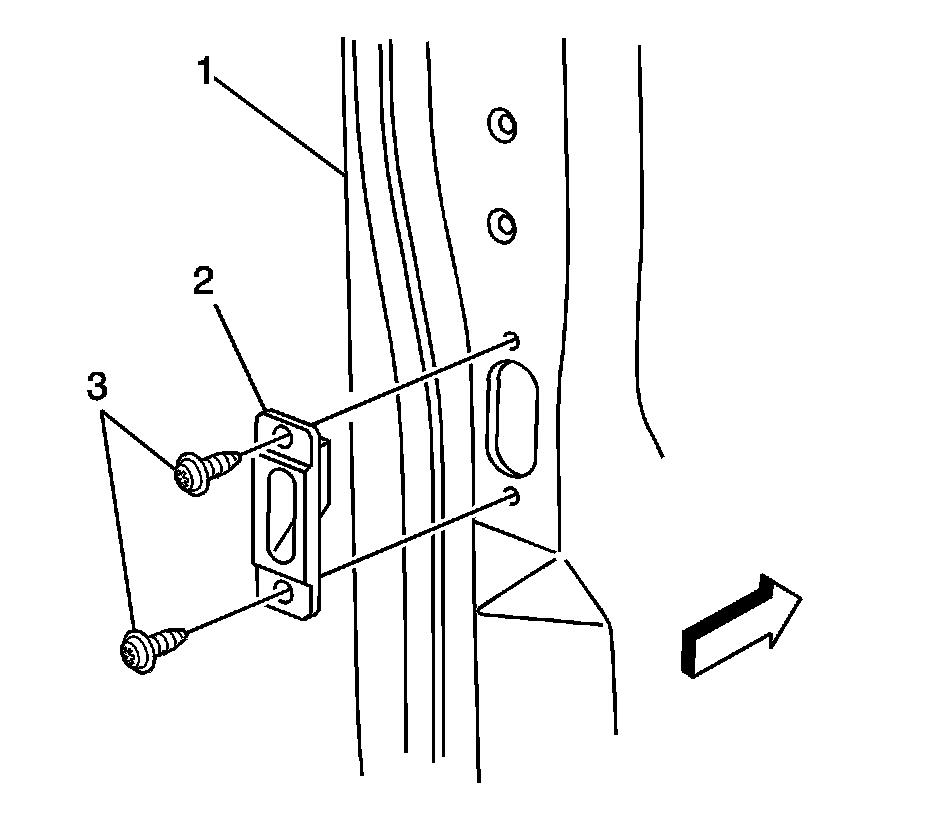

3. Remove the sliding door locator screws (3) from the B-pillar.
4. Remove the sliding door locator (2) from the B-pillar.



Installation Procedure





1. Install the sliding door locator (2) to the B-pillar.
2. Loosely install the sliding door locator screws (3), just tightly enough to retain the locator.
3. Close and then reopen the sliding door.

Notice: Refer to Fastener Notice in Cautions and Notices.

4. Re-torque the locator screws to the sliding door.

Tighten the sliding door locator screws to 10 N.m (89 lb in).


Important: By installing the 15A fuse, the low current logic power will be restored to both the LH and RH PSDMs and the PSDs will be operational. However, both PSDMs will have to learn the full open and full closed positions of the PSD. Refer to Acutator Control Module - Power Sliding Door (PSD) Programming and Setup.


5. If equipped with a power sliding door, enable the PSD system by installing the PSD 15A fuse into the I/P fuse block.
6. Close the sliding door.
