Wedge Replacement - Liftgate Body Side

Wedge Replacement - Liftgate Body Side

Removal Procedure





1. Open the liftgate.

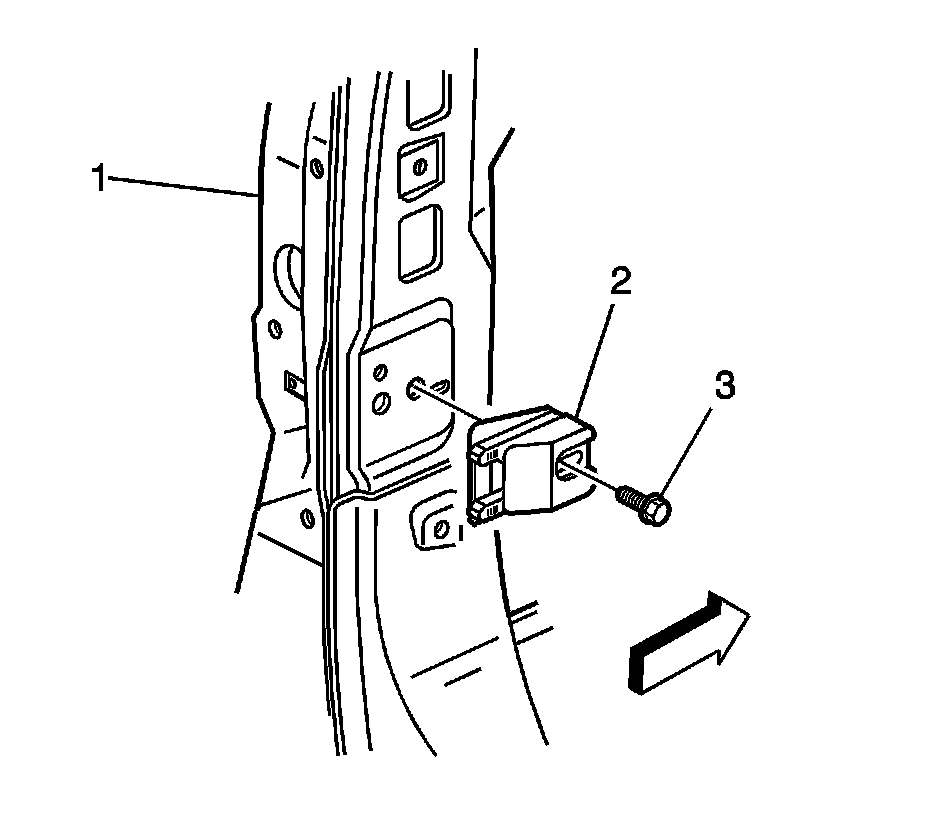

2. Remove the bolt (3) securing the wedge (2) to the body side.
3. Remove the wedge from the vehicle.



Installation Procedure





1. Position the wedge (2) to the body side inner panel and index the locking tab to the body panel.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the bolt (3).

Tighten the bolt to 10 N.m (89 lb in).

3. Close the liftgate.
