Home >> Chevy Truck >> 2006 >> Uplander AWD V6-3.5L VIN L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Removal and Replacement >> Seat Back Frame, Seat Back Latch, Floor Latch, Release Handle and Seat Riser Replacement - Rear No 2

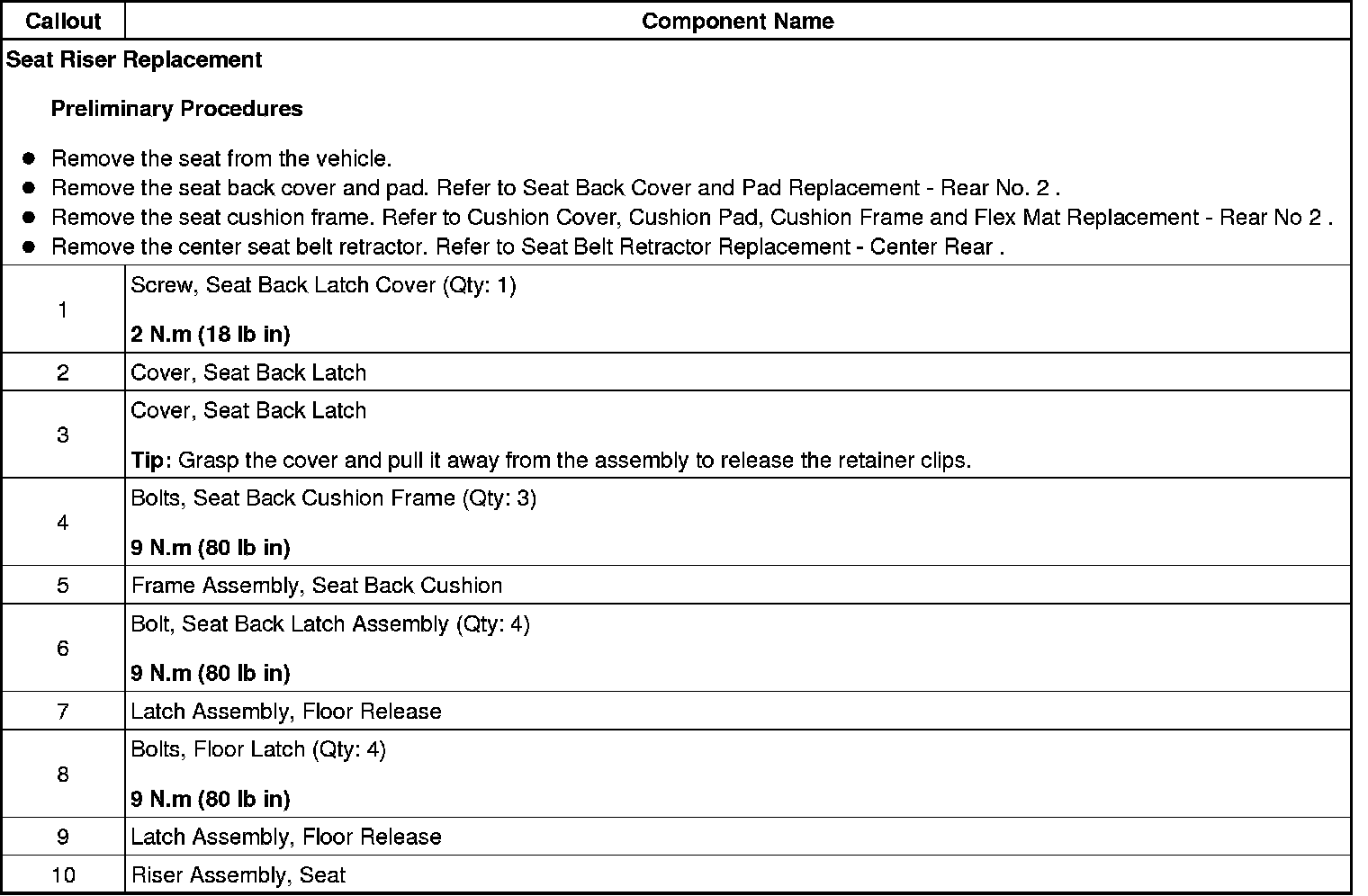

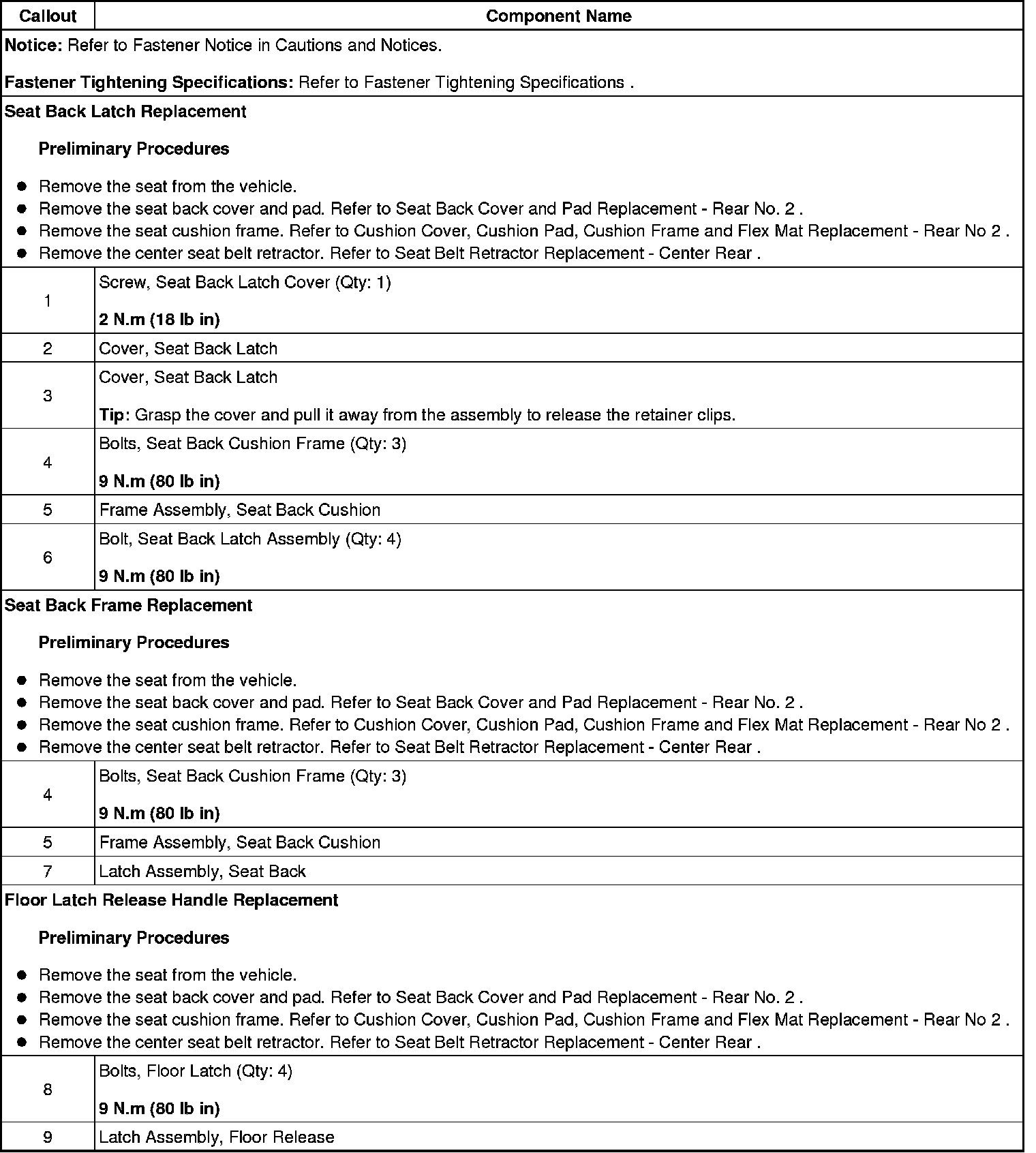

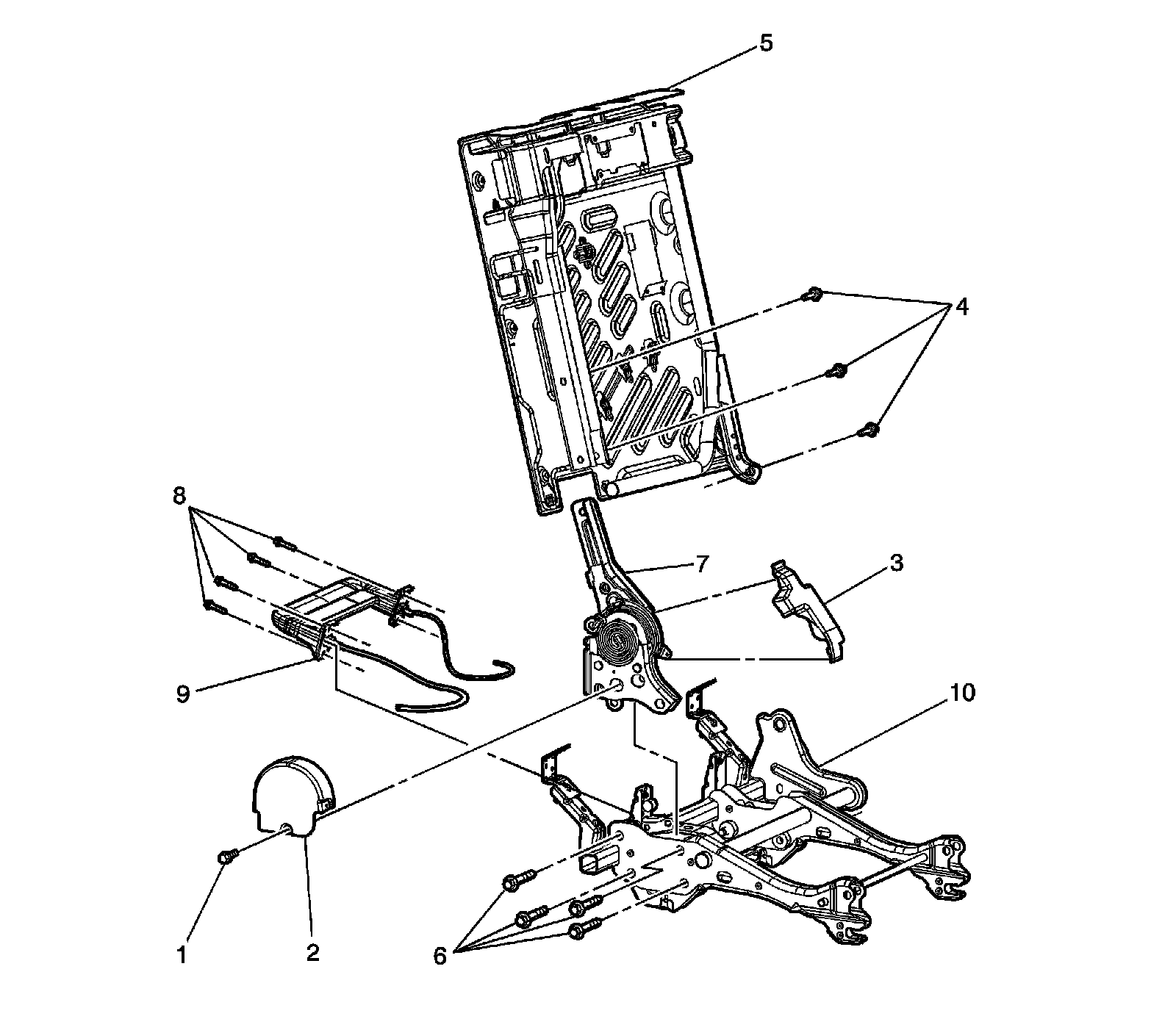

Seat Back Frame, Seat Back Latch, Floor Latch, Release Handle and Seat Riser Replacement - Rear No 2



Seat Back Frame, Seat Back Latch, Floor Latch, Release Handle and Seat Riser Replacement - Rear No 2
