Hydraulic Brake System Diagnosis

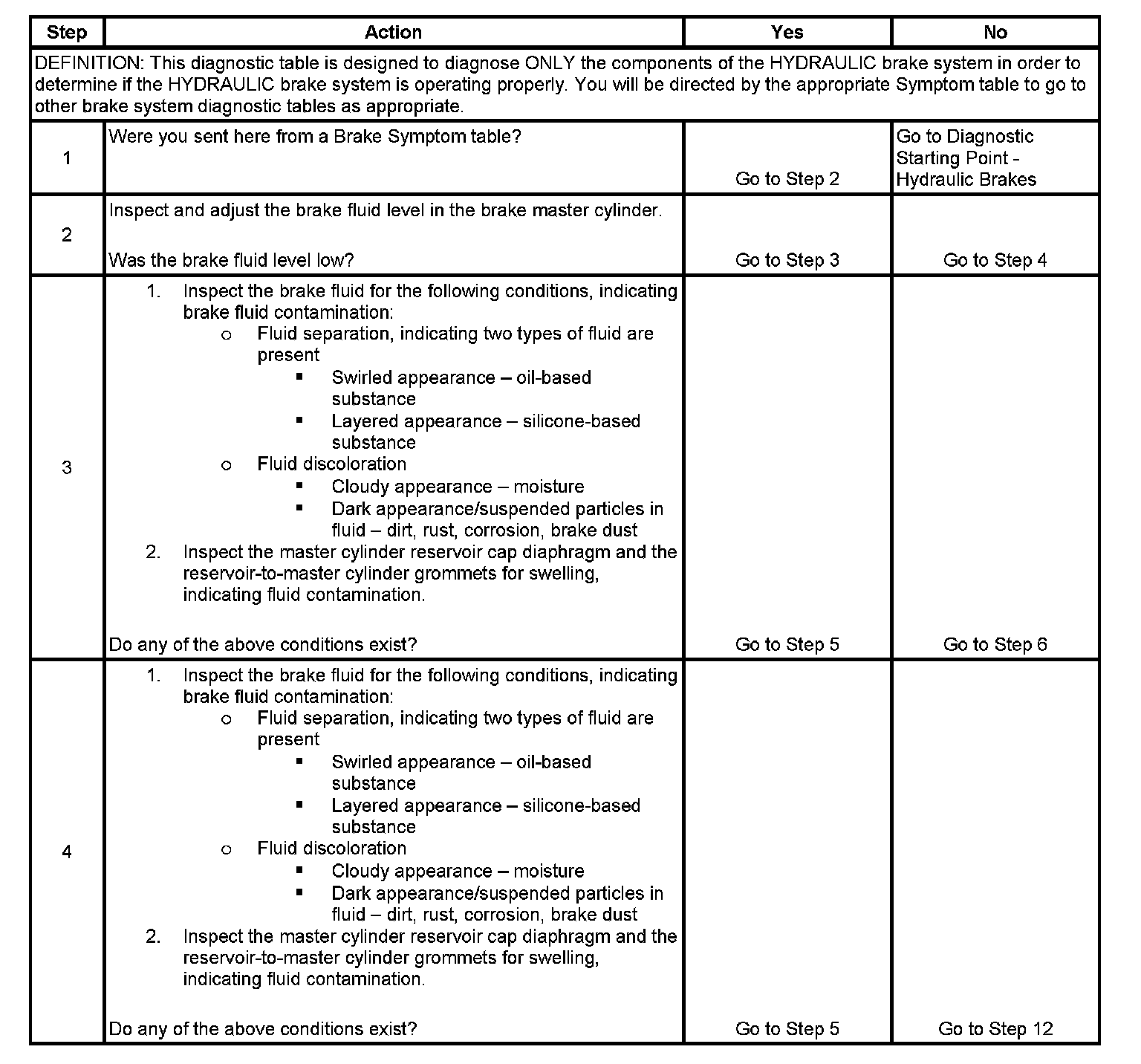

Step 1 - Step 4:

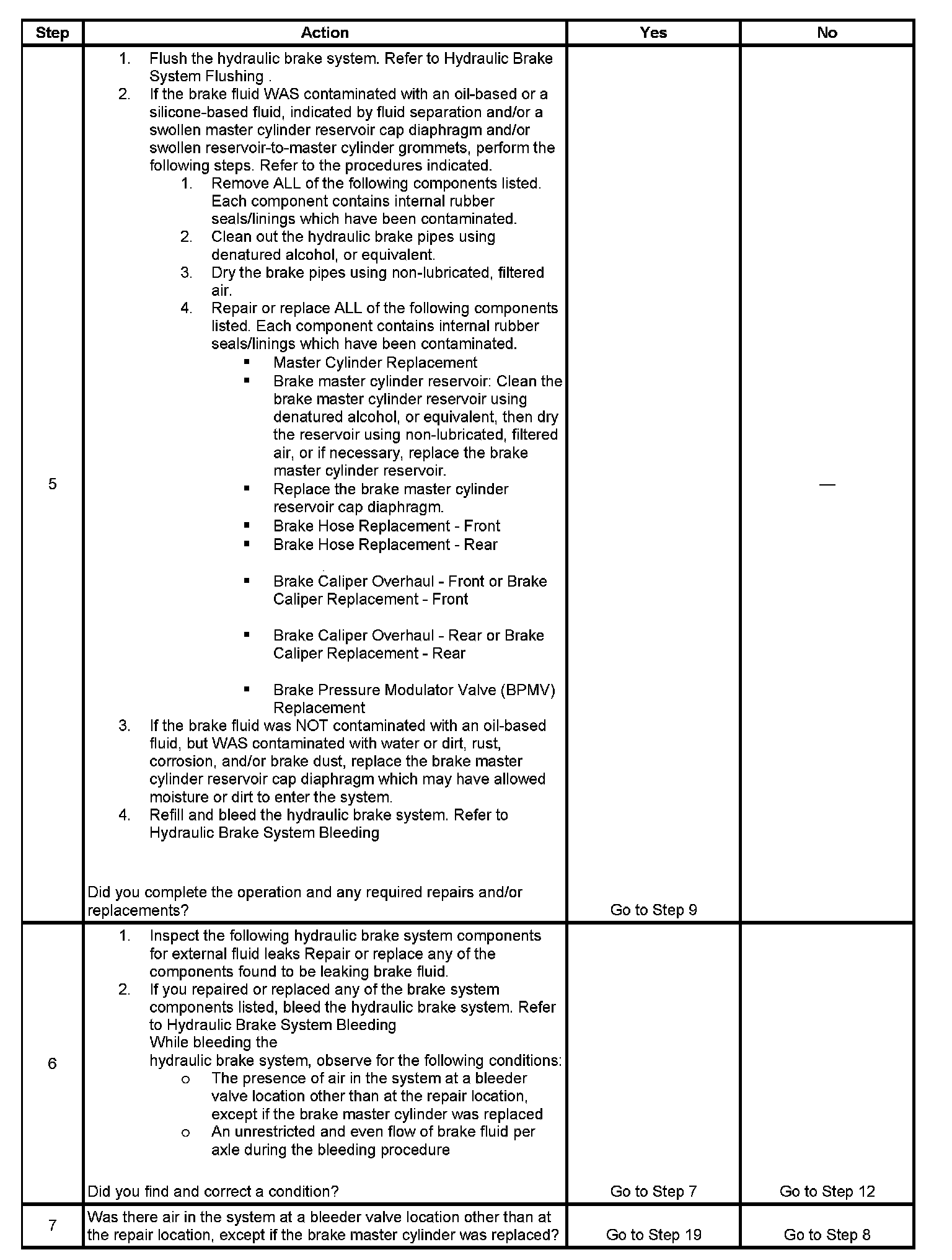

Step 5 - Step 7:

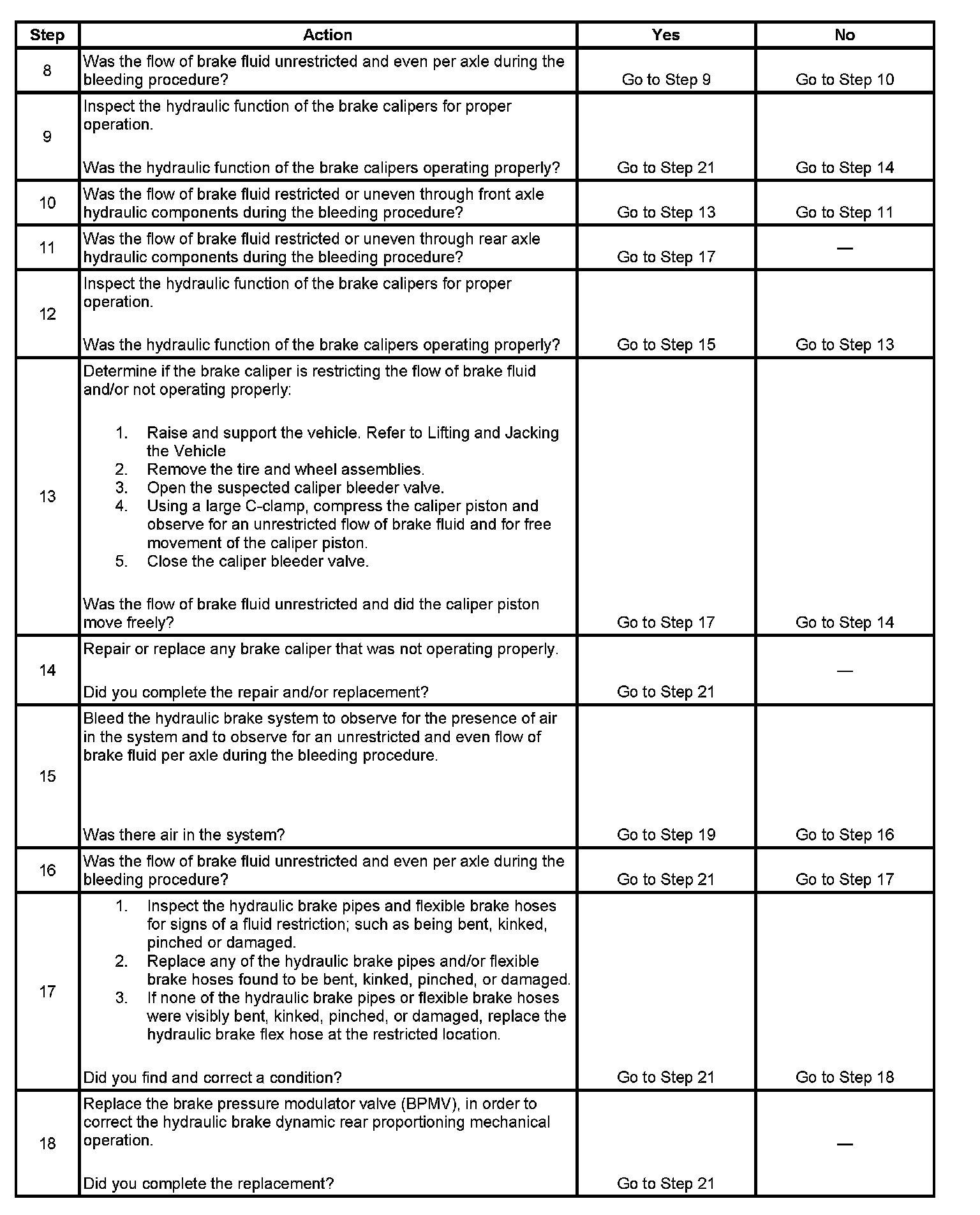

Step 8 - Step 18:



Step 19 - Step 21:
