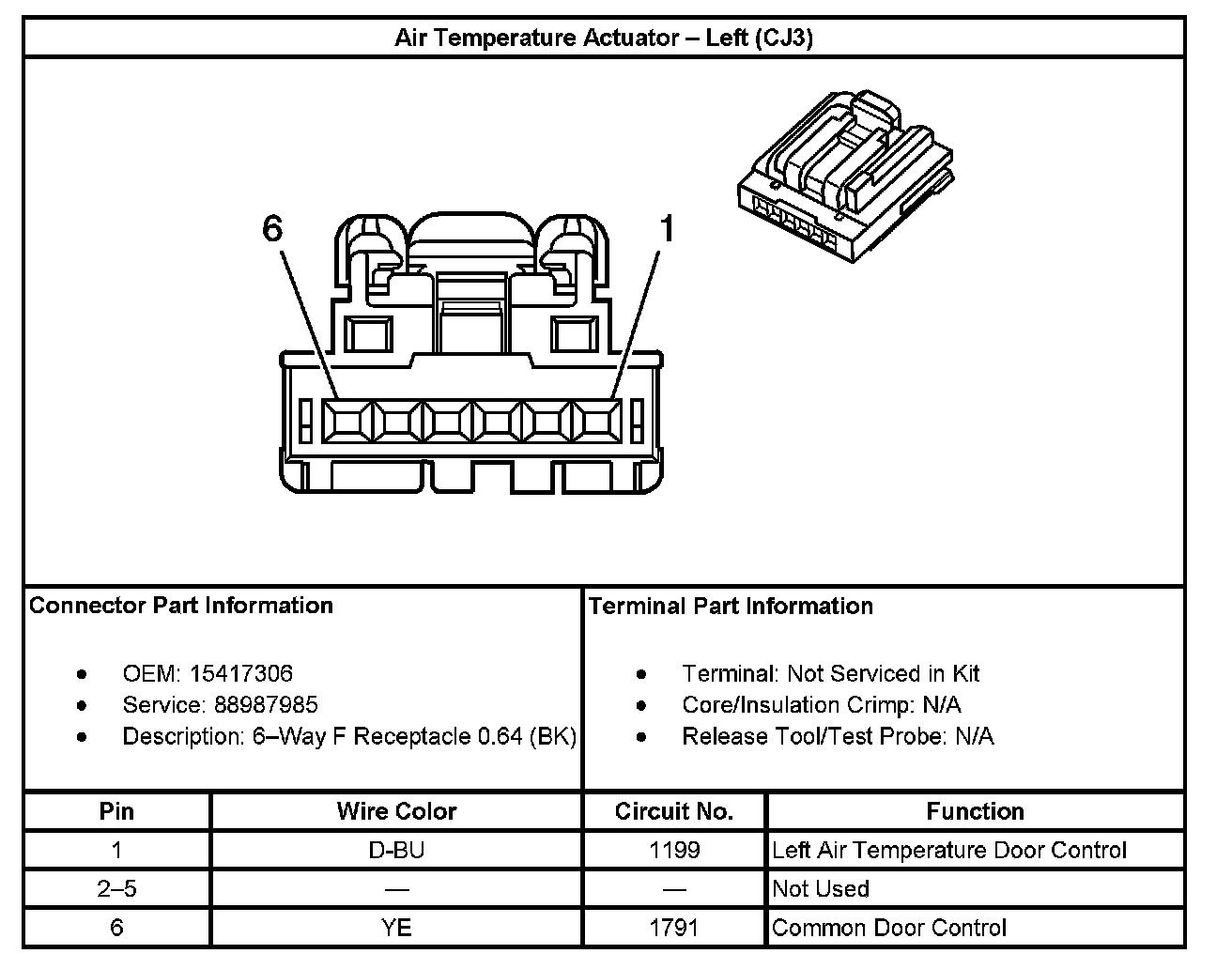

Air Temperature Actuator - Left (With RPO Code CJ3)

Air Temperature Actuator - Left (With RPO Code CJ3):
