Air Temperature Actuator - Right (With RPO Code CJ3)

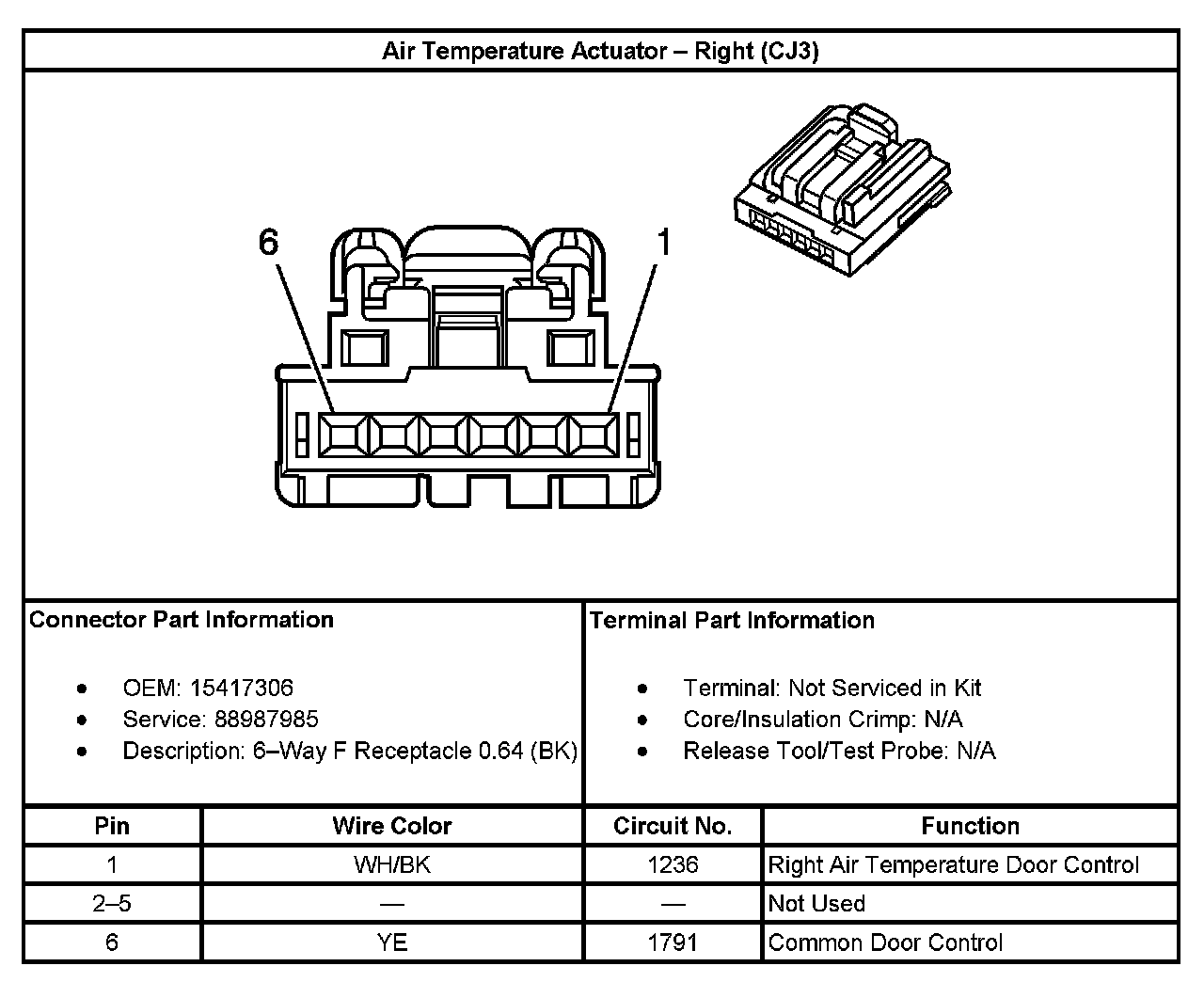

Air Temperature Actuator - Right (With RPO Code CJ3):
