Home >> Chevy Truck >> 2006 >> Uplander AWD V6-3.5L VIN L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Loss of Coolant

Loss of Coolant

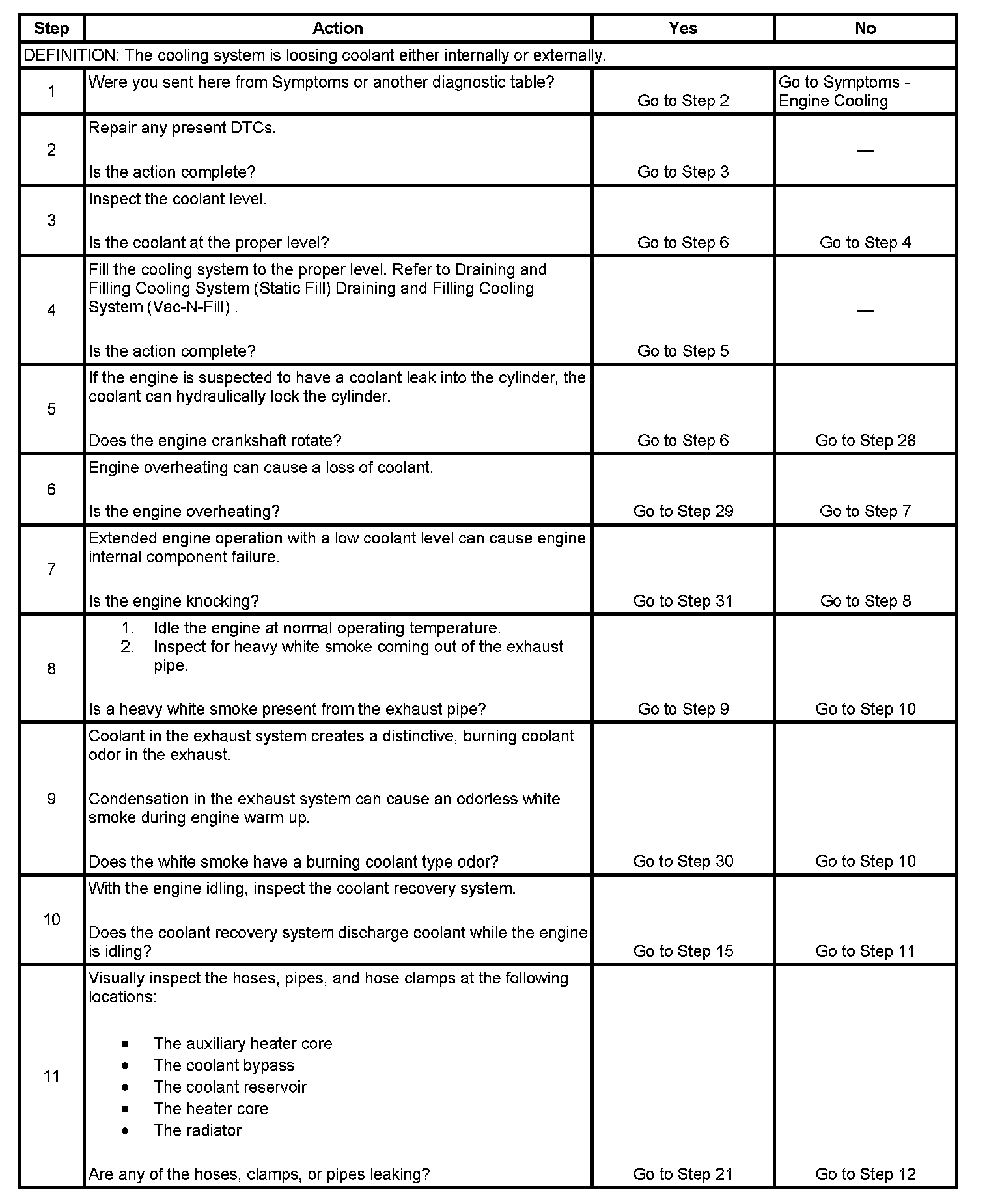

Step 1 - Step 11:

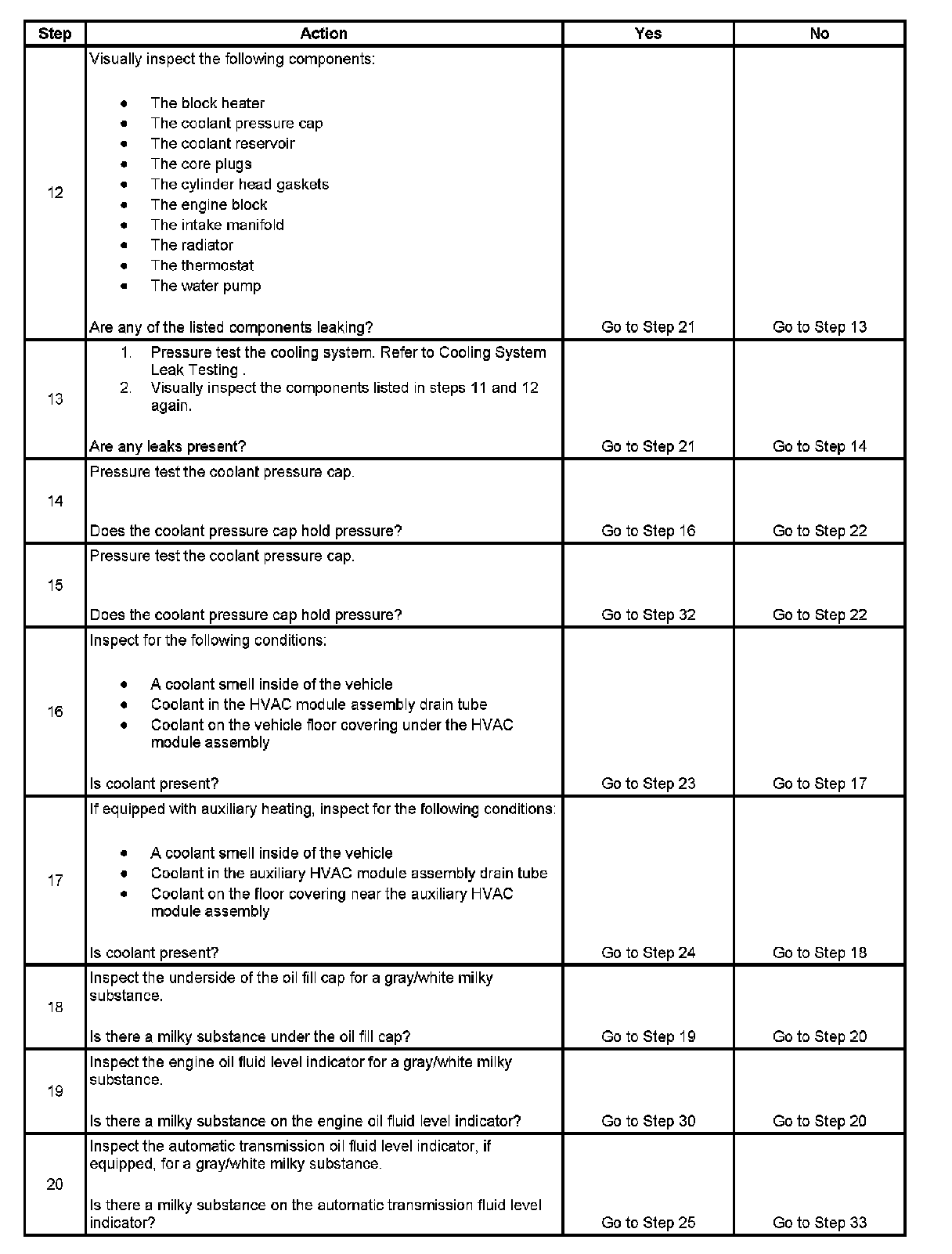

Step 12 - Step 20:

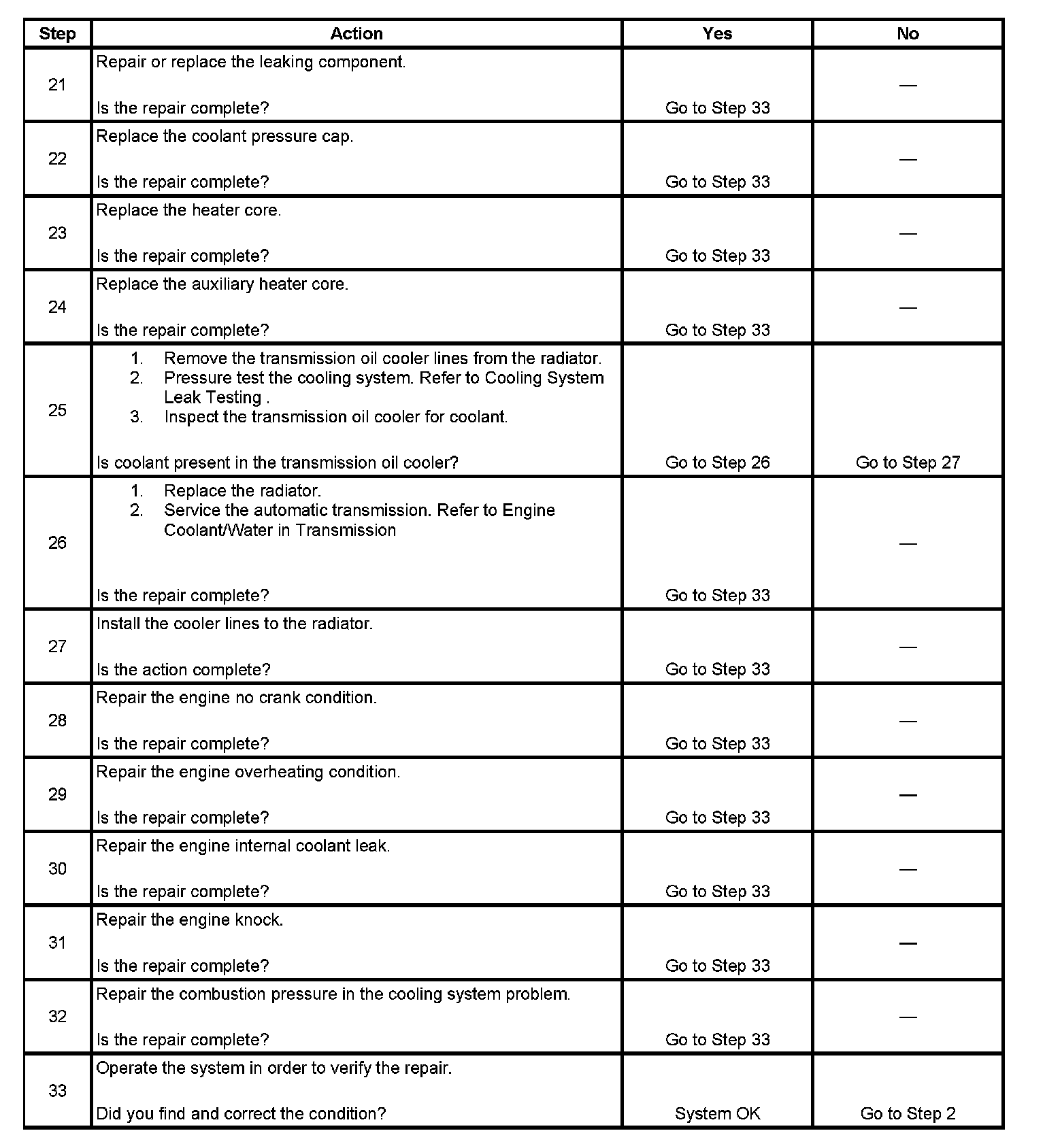

Step 21 - Step 33:
