90. Exhaust Manifold Installation - Right Side

Exhaust Manifold Installation - Right





1. Notice: Refer to Fastener Notice in Service Precautions.

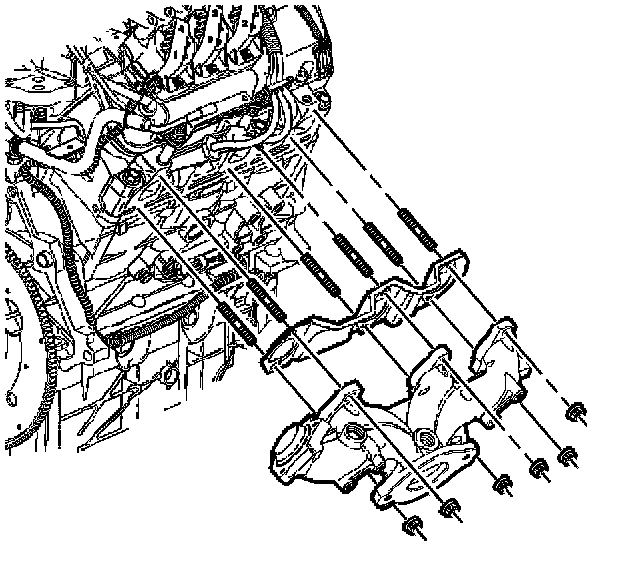

Install the exhaust manifold studs.
^ Tighten the exhaust manifold studs to 18 Nm (13 ft. lbs.).
2. Install the exhaust manifold gasket.
3. Install the exhaust manifold.
4. Install the exhaust manifold nuts.
^ Tighten the exhaust manifold nuts working from the center out to 16 Nm (12 ft. lbs.).
5. Install the right side spark plugs.
^ Tighten the spark plugs to 15 Nm (11 ft. lbs.).
6. Install the spark plug wires onto the spark plugs.

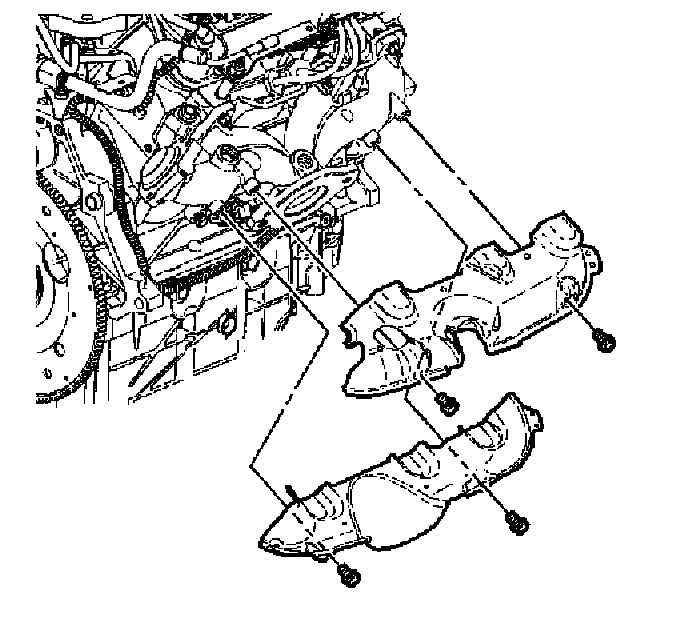

7. Install the lower exhaust manifold heat shield.
8. Install the upper exhaust manifold heat shield.
9. Install the exhaust manifold heat shield bolts.
^ Tighten the exhaust manifold heat shield bolts to 10 Nm (89 inch lbs.).

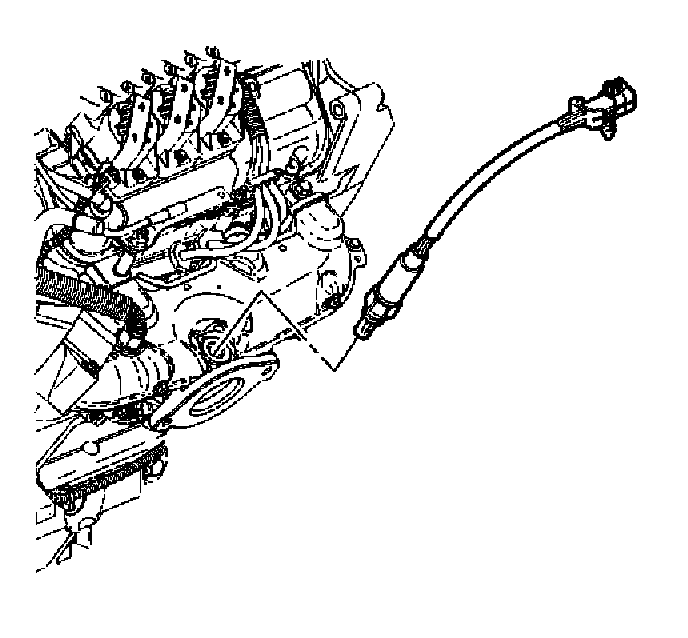

10. Coat the threads of the heated oxygen sensor with anti seize compound.
11. Install the heated oxygen sensor.
^ Tighten the heated oxygen sensor to 42 Nm (31 ft. lbs.).
12. Install the spark plug wires.
