Window Replacement - Sliding Door Swing Out

Window Replacement - Sliding Door Swing Out

Removal Procedure


Important: By removing the power sliding door (PSD) 15A fuse, the low current logic power for both the LH and RH power sliding door modules (PSDM) will be interrupted and both PSDs will be inoperative.


1. If equipped with a power sliding door, disable the PSD system by removing the PSD 15A fuse from the instrument panel (I/P) fuse block.
2. Remove the sliding door garnish molding. Refer to Garnish Molding Replacement - Sliding Door (Service and Repair) in Interior Trim.




3. Use a small flat-bladed tool in order to remove the plugs from the swing-out window access hole on the sliding door.




4. Remove the swing-out window latch screws.

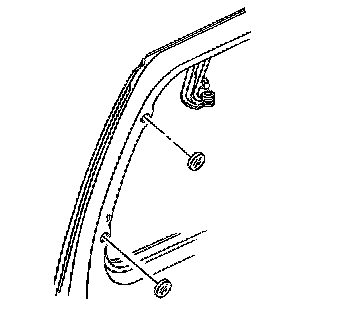

5. Remove the stud nuts from the swing-out window hinge.

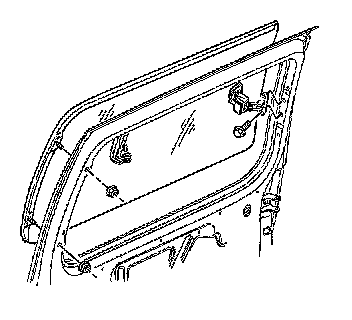

6. Remove the swing-out window from the sliding door.



Installation Procedure





1. Install the swing-out window to the sliding door.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the studs nuts to the swing-out window hinge.

Tighten the nuts to 10 N.m (89 lb in).

3. Install the swing-out window latch screws.

Tighten the screws to 10 N.m (89 lb in).





4. Press the plugs into the swing-out window access hole on the sliding door until fully seated.
5. Install the sliding door garnish molding. Refer to Garnish Molding Replacement - Sliding Door (Service and Repair) in Interior Trim.

Important: By installing the 15A fuse, the low current logic power will be restored to both the LH and RH PSDMs and the PSDs will be operational. However, both PSDMs will have to learn the full open and full closed positions of the PSD. Refer to Acutator Control Module - Power Sliding Door (PSD) Programming and Setup.


6. If equipped with a power sliding door, enable the PSD system by installing the PSD 15A fuse into the I/P fuse block.
