P0113

DTC P0113

CIRCUIT DESCRIPTION
The intake air temperature (IAT) sensor is fitted between the air cleaner and turbocharger internal to the mass air flow (MAF) sensor. The IAT sensor is a variable resistor. The IAT sensor has a signal circuit and a low reference circuit. The IAT sensor measures the temperature of the air entering the engine. The engine control module (ECM) supplies 5 volts to the IAT signal circuit and a ground for the IAT low reference circuit. When the IAT sensor is cold, the sensor resistance is high. When the air temperature increases, the sensor resistance decreases. With high sensor resistance, the ECM detects a high voltage on the IAT signal circuit. With lower sensor resistance, the ECM detects a lower voltage on the IAT signal circuit. If the ECM detects an excessively high IAT signal voltage, indicating a low temperature, this DTC will set.

Condition for Running the DTC
- DTC P0112isnotset.
- The battery voltage is between 10-16 volts.
- The ignition switch is ON.
- The engine run time is longer than 10 seconds.

Condition for Setting the DTC
- The ECM detects that the IAT sensor signal voltage is more than 4.95 volts for longer than 3 seconds.

Action Taken When the DTC Sets
- The ECM illuminates the malfunction indicator lamp (MIL) on the second consecutive driving cycle when the diagnostic runs and fails.
- The ECM records the operating conditions at the time the diagnostic fails. The ECM stores this information in the Freeze Frame/Failure Records on the second consecutive driving cycle when the diagnostic runs and fails.
- The ECM uses an IAT substitution of 77 °F (25 °C) when the DTC is set.
- The ECM uses an IAT substitution of-20 °F (-29 °C) for engine starting.
- The ECM uses an IAT substitution of 77 °F (25 °C) for engine running.

Condition for Clearing the MIL/DTC
- The ECM turns OFF the MIL after 3 consecutive driving cycles when the diagnostic runs and does not fail. (12,000 lbs GVW)
- The ECM turns OFF the MIL when the diagnostic runs and does not fail. (Except 12,000 lbs GVW)
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic after the ECM turns OFF the MIL.
- Clear the MIL and the DTC with a scan tool.

Diagnostic Aids
- When the vehicle is at ambient temperature the IAT sensor and engine coolant temperature (ECT) sensor temperature should be relatively close to each other.
- Use the Temperature vs. Resistance table to test the IAT sensor at various temperature levels to evaluate the possibility of a skewed sensor. A skewed sensor could result in poor driveability concerns. Refer to Temperature vs. Resistance.

If an intermittent condition is suspected, the following may cause an intermittent:
- IAT sensor may have an intermittent open as it heats up.
- Poor connections
- Misrouted harness
- Rubbed through wire insulation
- Broken wire inside the insulation

Check for the following conditions:
- Damaged harness: Inspect the wiring harness for damage. If the harness appears to be OK, observe the "IAT Sensor" display on the scan tool with the engine running while moving connectors and the wiring harness related to the sensor. A change in the display will indicate the location of the fault.

NOTE: The MAF sensor is heated and as a result the IAT sensor may indicate a higher than normal intake air temperature.

Test Description
The number below refers to the step number on the diagnostic table.
5. This step tests for the proper operation of the circuit in the low voltage range. If the fuse in the jumper opens when you perform this test, the signal circuit is shorted to voltage.

DTC P0113
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls Connector End Views or Engine Control Module (ECM) Connector End Views

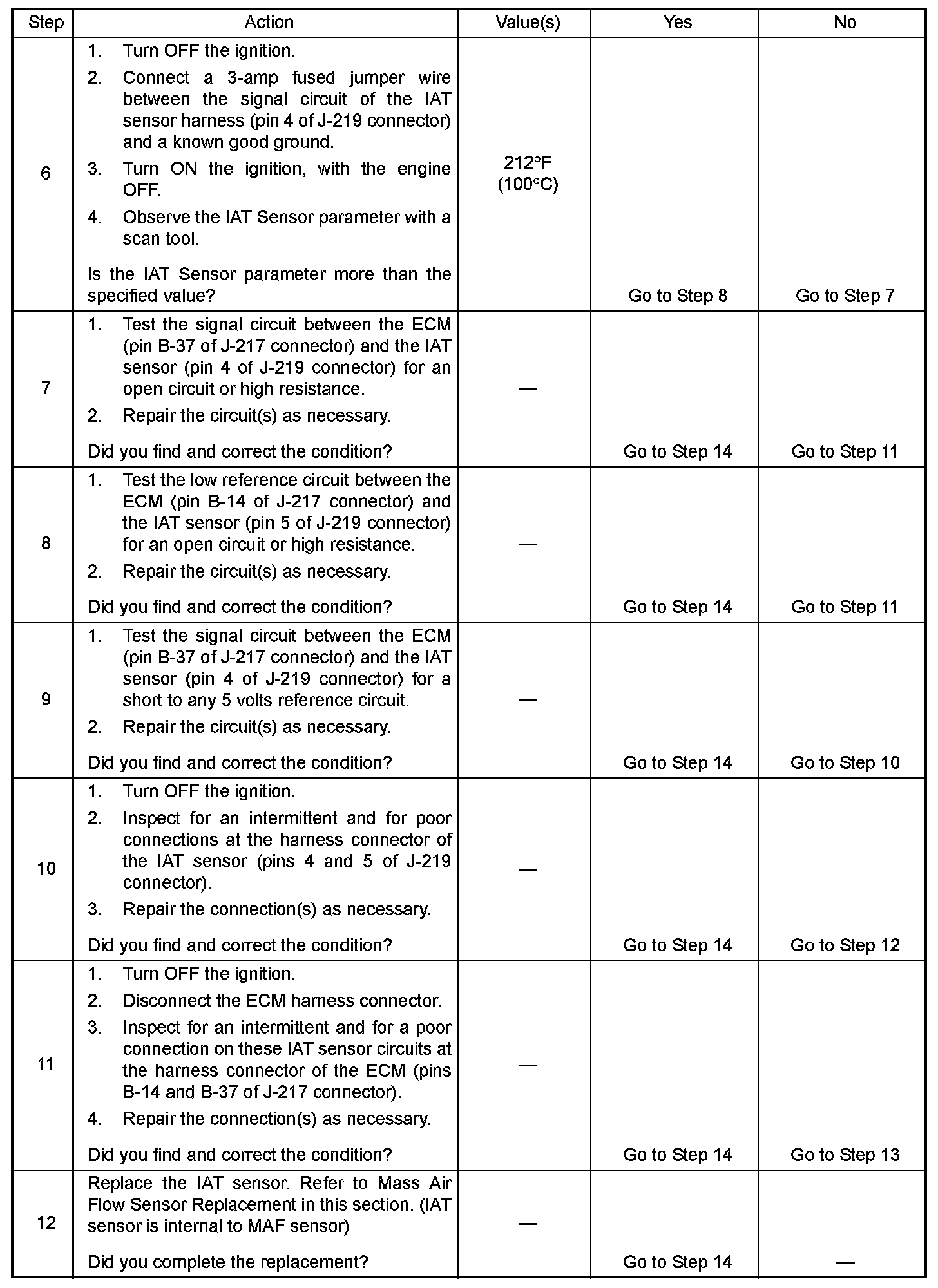

Step 6 - 12:

Step 13 - 15:
