P0192

DTC P0192

CIRCUIT DESCRIPTION
The fuel rail pressure sensor is installed to the fuel rail and it detects the fuel pressure in the fuel rail, converts the pressure into a voltage signal, and sends the signal to the engine control module (ECM). The fuel rail pressure sensor has the following circuits.
- 5 volts reference circuit
- Low reference circuit
- Fuel rail pressure sensor signal circuit

The ECM supplies 5 volts to the fuel rail pressure sensor on the 5 volts reference circuit. The ECM also provides a ground on the low reference circuit. Higher fuel rail pressure provides higher fuel pressure sensor voltage while lower pressure provides lower fuel pressure sensor voltage. The ECM calculates actual fuel rail pressure (fuel pressure) from the voltage signal and uses the result in fuel injection control and other control tasks. The ECM monitors the fuel rail pressure sensor signal for voltage outside the normal range. If the ECM detects an excessively low fuel rail pressure sensor signal voltage, this DTC will set.

Condition for Running the DTC
- DTCs P0193, P0642 and P0643 are not set.
- The battery voltage is between 10-16 volts.
- The ignition switch is ON.

Condition for Setting the DTC
- The ECM detects that the fuel rail pressure sensor signal voltage is less than 0.7 volts.

Action Taken When the DTC Sets
- The ECM illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The ECM records the operating conditions at the time the diagnostic fails. The ECM stores this information in the Freeze Frame/Failure Records.
- The ECM limits fuel rail pressure within 11600 psi (80 MPa).
- The ECM limits accelerator control range within 40%.
- The ECM closes the EGR valve and holds to close position.
- The ECM inhibits the cruise control.
- The ECM inhibits the PTO control.

Condition for Clearing the MIL/DTC
- The ECM turns OFF the MIL after 3 consecutive driving cycles when the diagnostic runs and does not fail. (12,000 lbs GVW)
- The ECM turns OFF the MIL when the diagnostic runs and does not fail. (Except 12,000 lbs GVW)
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic after the ECM turns OFF the MIL.
- Clear the MIL and the DTC with a scan tool.

Diagnostic Aids
If an intermittent condition is suspected, the following may cause an intermittent:
- Poor connections
- Misrouted harness
- Rubbed through wire insulation
- Broken wire inside the insulation

Check for the following conditions:
- Poor connection at the ECM: Inspect harness connectors for backed-out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
- Damaged harness: Inspect the wiring harness for damage. If the harness appears to be OK, observe the "Actual Fuel Rail Pressure" display on the scan tool with the engine running while moving connectors and the wiring harness related to the sensor. A change in the display will indicate the location of the fault.

NOTE: The Actual Fuel Rail Pressure on scan tool will only update with the engine running or one time after the key is cycled when the ignition has been turned OFF for longer than 10 seconds.

DTC P0192
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls Connector End Views or Engine Control Module (ECM) Connector End Views

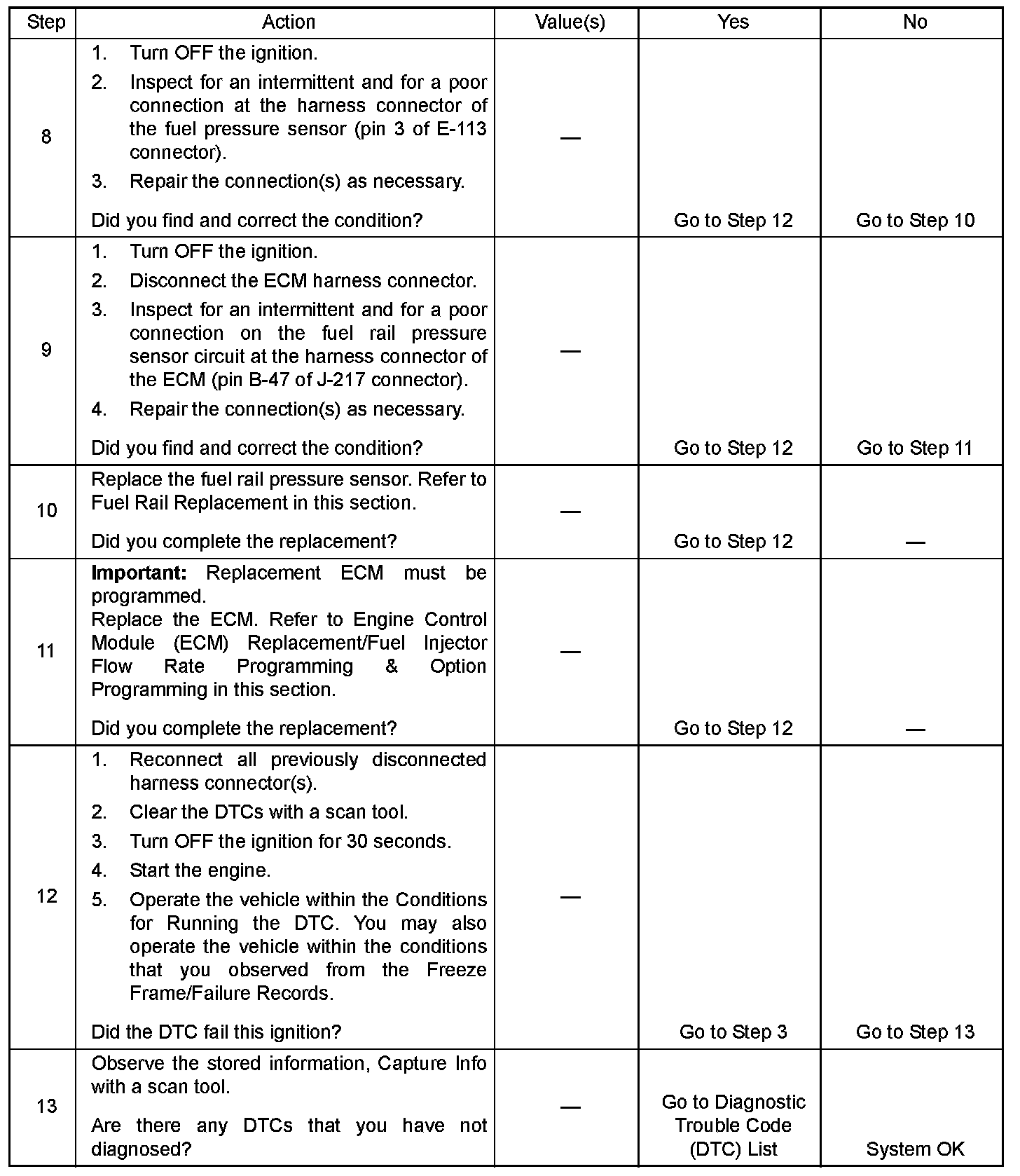

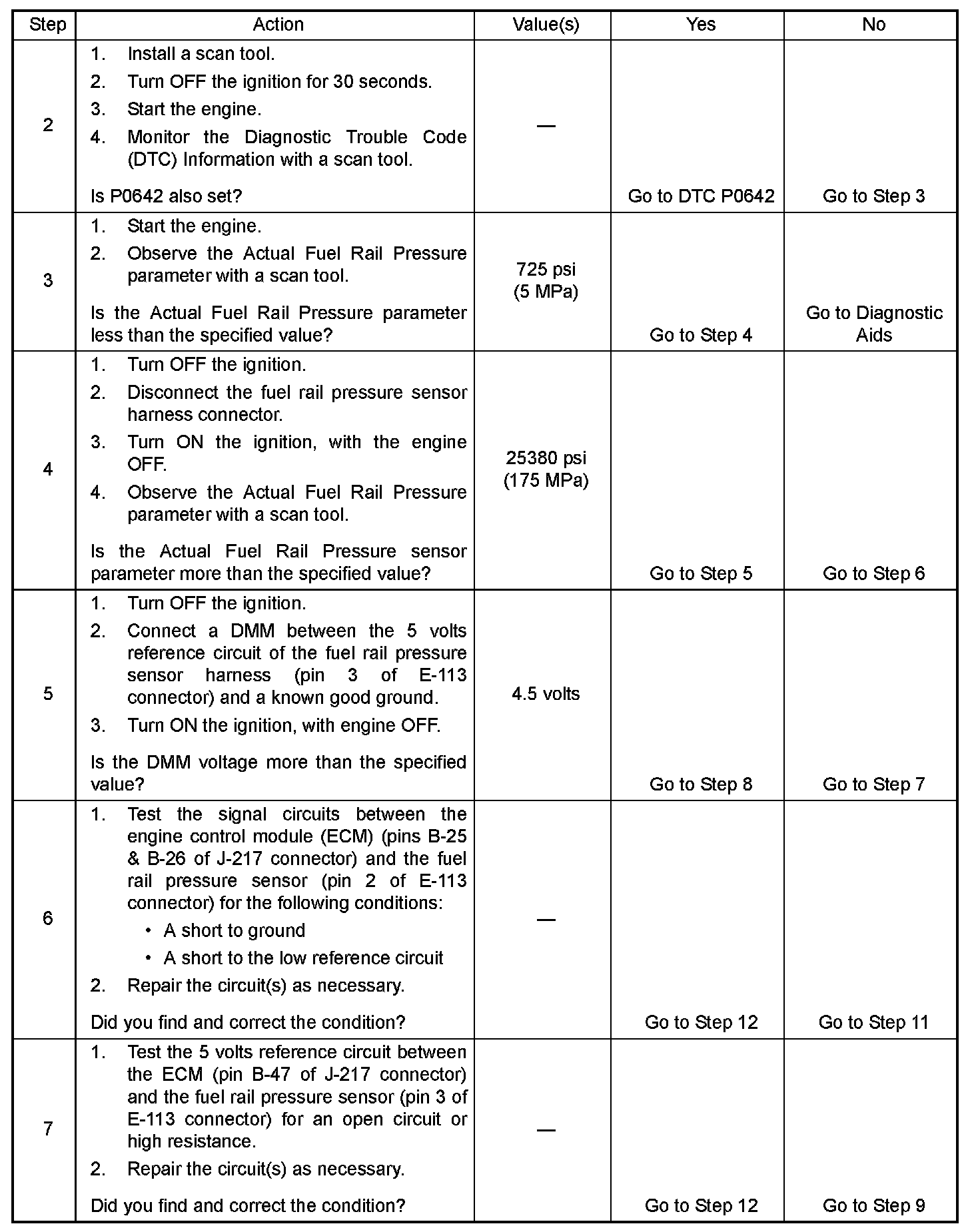

Step 8 - 13:
