Camshaft Position Sensor



Engine Controls Connector End Views

Camshaft Position (CMP) Sensor 1

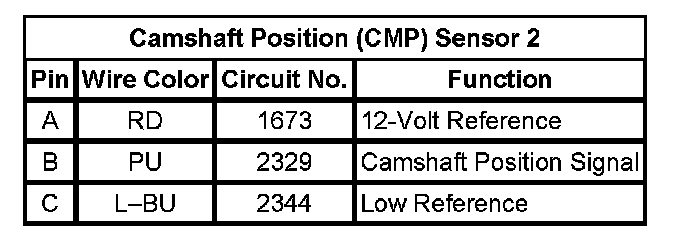

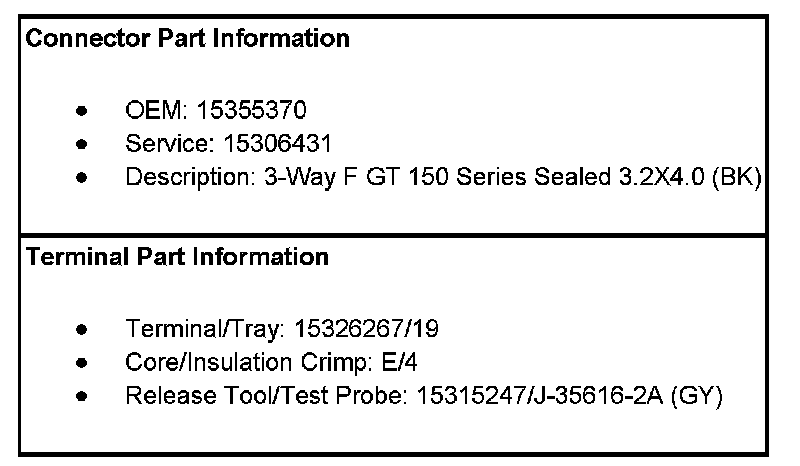

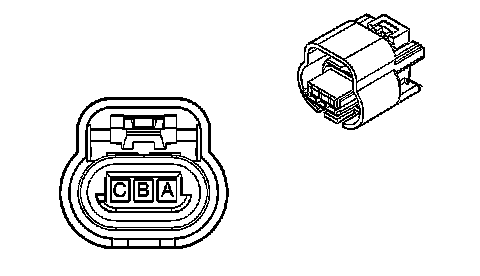

Camshaft Position (CMP) Sensor 2
