Body/Interior - Driver Seat/Floor Creak/Squeak Noise
Bulletin No.: 07-08-63-003Date: April 25, 2007
TECHNICAL
Subject:
Driver Seat/Floor Creak/Squeak Noise When Vehicle Comes to a Stop (Adjust Sheet Metal in Floor Under Driver Seat)
Models:
2007 Chevrolet Colorado Standard Cab
2007 GMC Canyon Standard Cab
Built Between VIN Breakpoints 78215941-78216560
Condition
Some customers may comment that the drivers seat or floor squeaks/creaks whenever the vehicle stops. This condition may be duplicated by rocking the driver's seat back and forth.
Correction
Adjust a sheet metal seam under the drivers seat as follows:

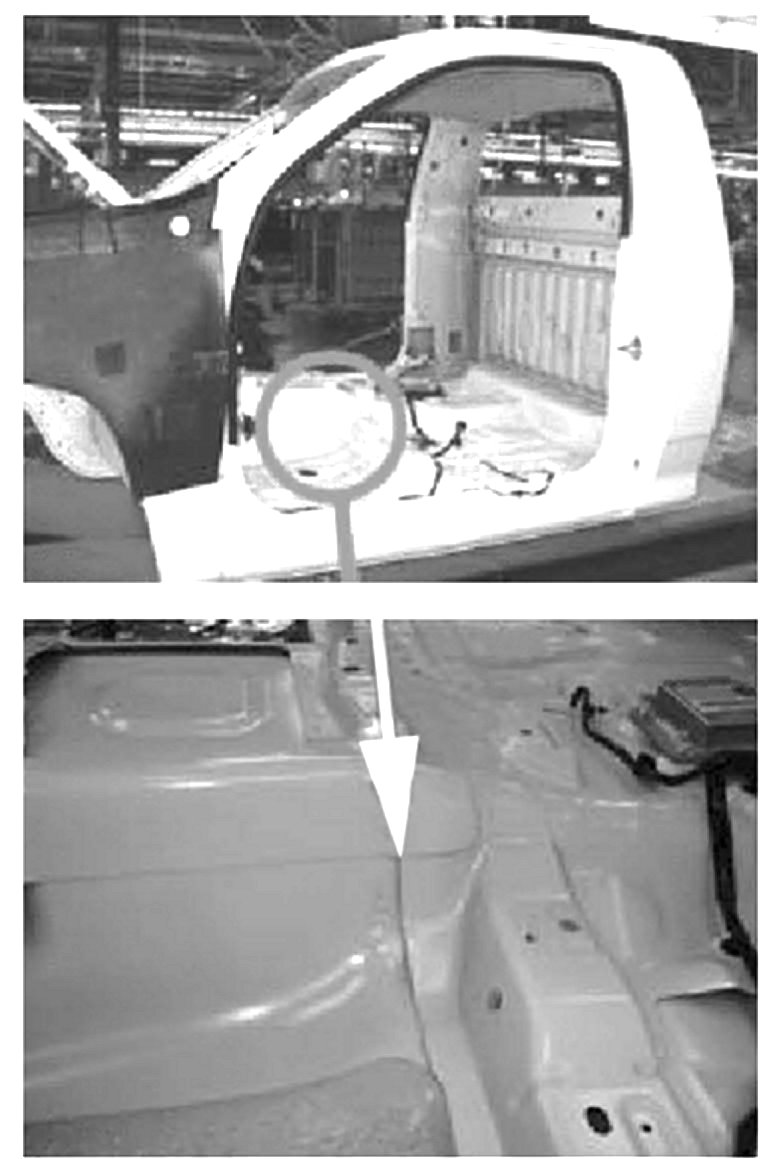

Remove the carpet and locate the seam in the above illustrations.
Slightly adjust the sheet metal seam as shown in the illustration above.
Warranty Information

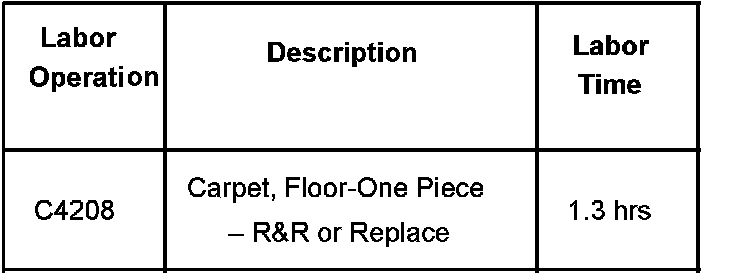

For vehicles repaired under warranty, use the table.
