Powertrain Management: Locations



Engine Controls Component Views

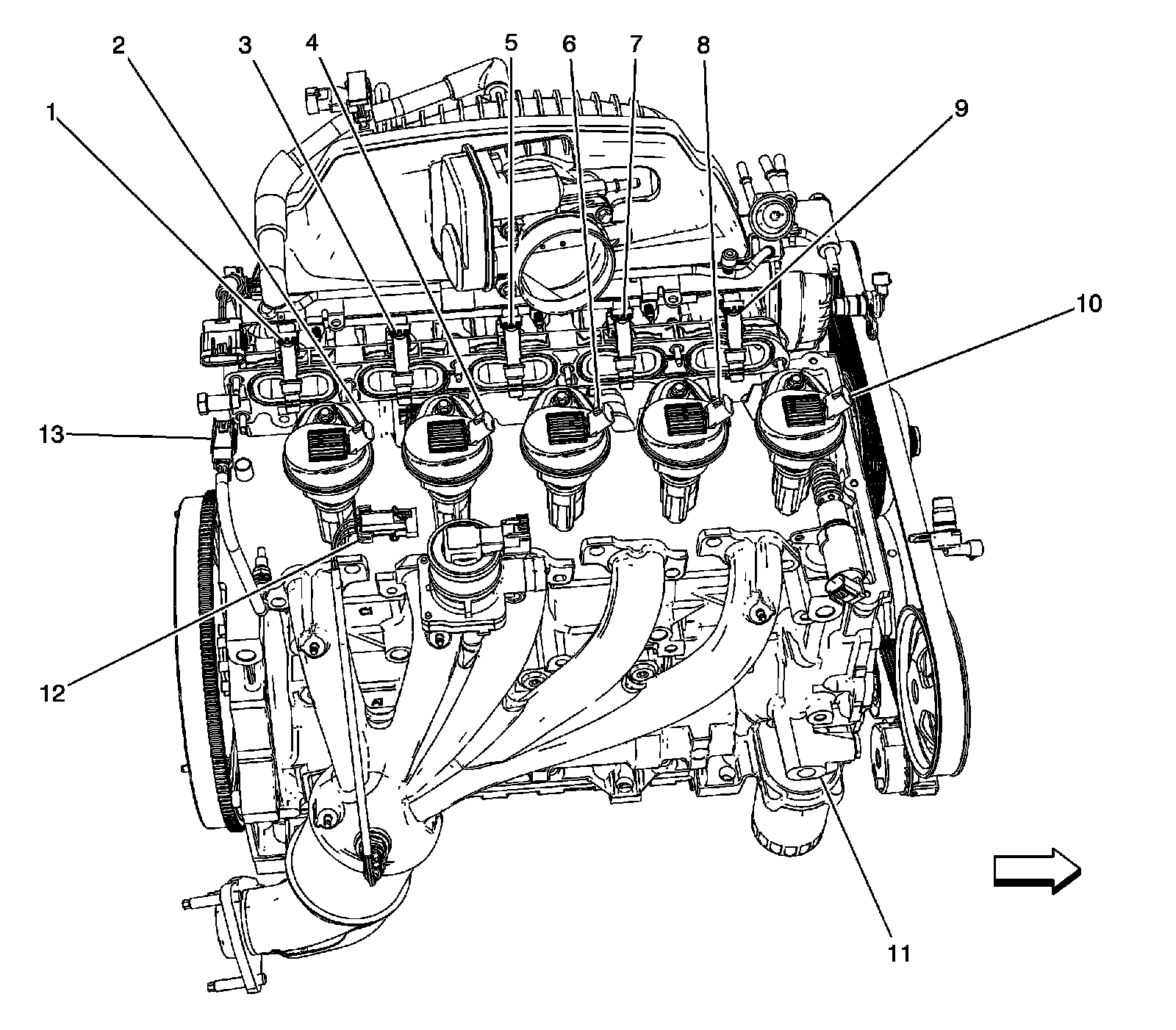

Engine Controls Components 1 of 5




1 - Fuel Injector 5
2 - Ignition Coil 5
3 - Fuel Injector 4
4 - Ignition Coil 4
5 - Fuel Injector 3
6 - Ignition Coil 3
7 - Fuel Injector 2
8 - Ignition Coil 2
9 - Fuel Injector 1
10 - Ignition Coil 1
11 - Engine Oil Pressure (EOP) Sensor
12 - Heated Oxygen Sensor (HO2S) 1
13 - Engine Coolant Temperature (ECT) Sensor Connector

Engine Controls Components 2 of 5




1 - Starter Solenoid
2 - Knock Sensor (KS)
3 - Crankshaft Position (CKP) Sensor
4 - G102
5 - G103
6 - G101
7 - A/C Compressor Clutch (CJ2/CJ3)
8 - Evaporative Emission (EVAP) Canister Purge Solenoid
9 - Generator

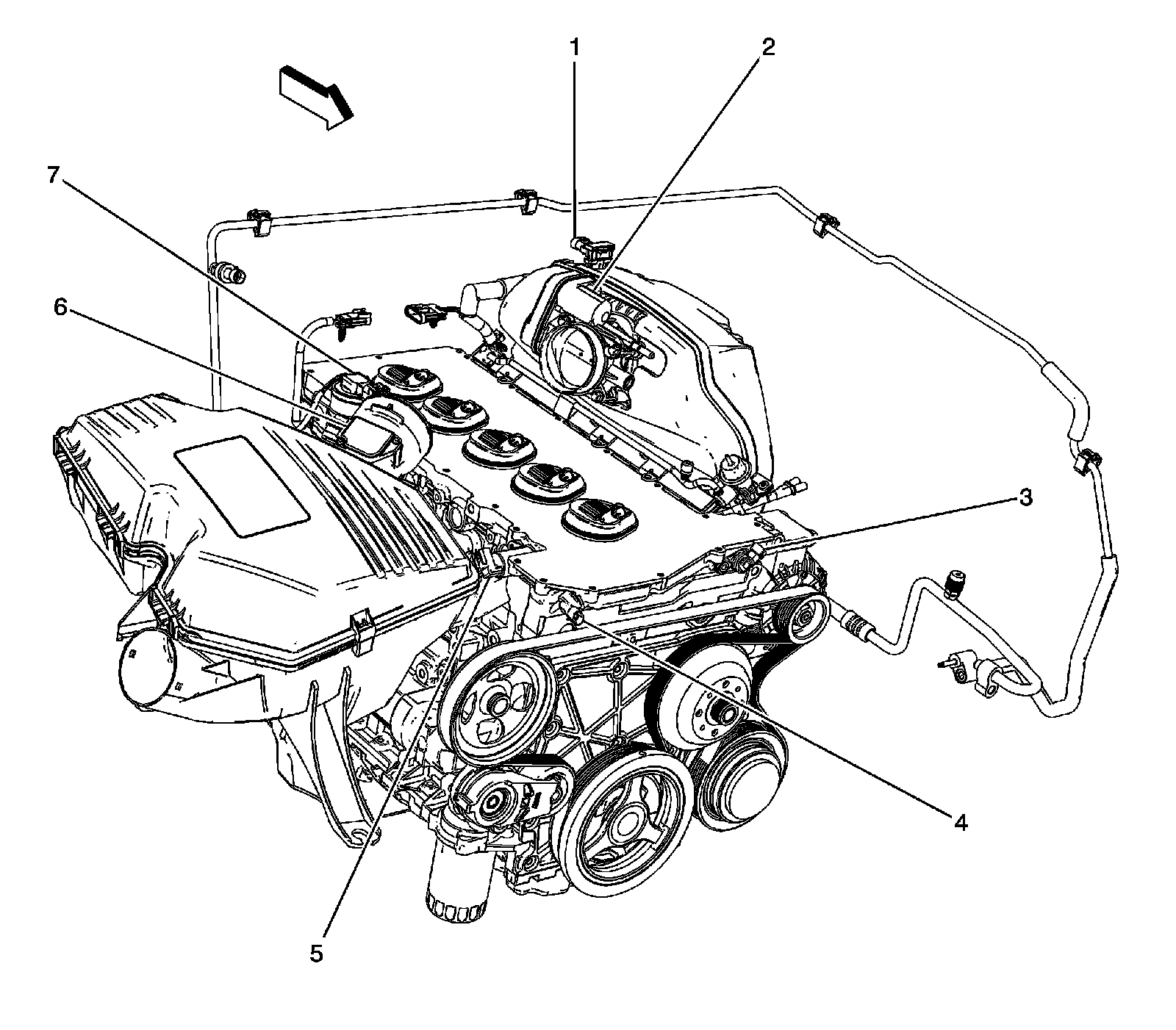

Engine Controls Components 3 of 5




1 - Manifold Absolute Pressure (MAP) Sensor
2 - Throttle Body
3 - Camshaft Position (CMP) Sensor 2
4 - Camshaft Position (CMP) Sensor 1
5 - Camshaft Position (CMP) Actuator Solenoid - Bank 1 Exhaust
6 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor
7 - Intake Air Temperature (IAT)/Mass Air Flow (MAF) Sensor Connector

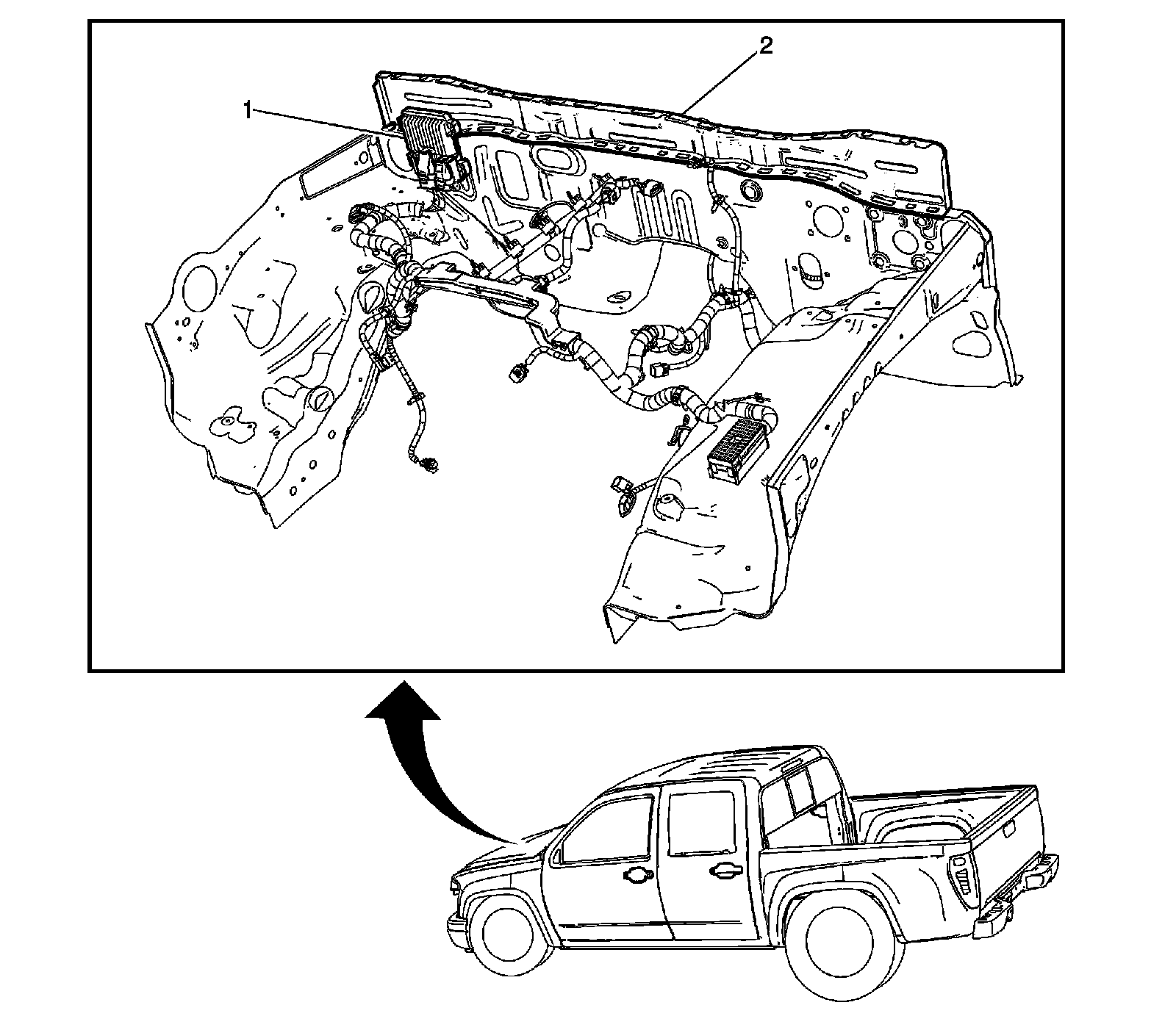

Engine Controls Components 4 of 5




1 - Powertrain Control Module (PCM)
2 - Front Plenum Panel

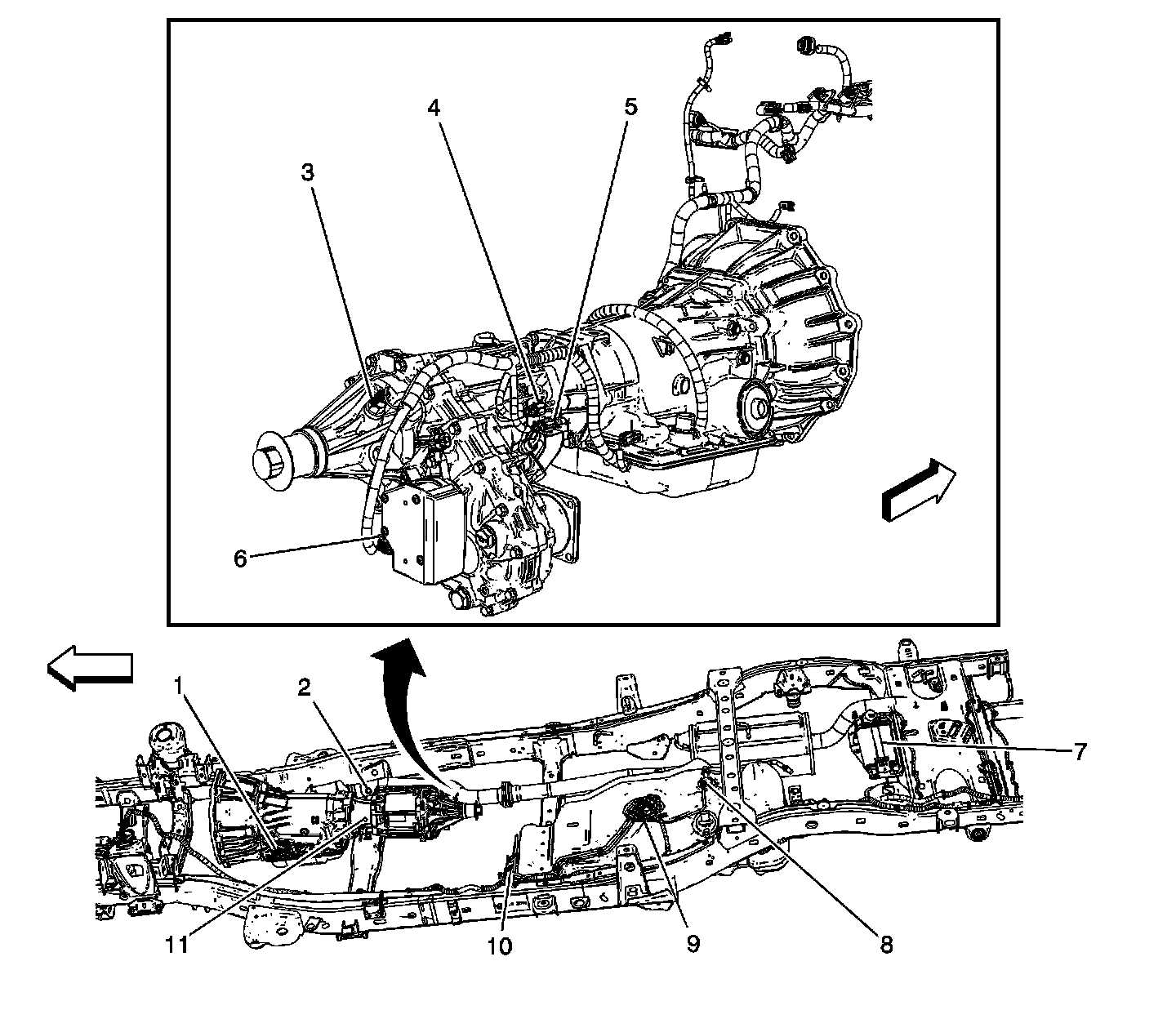

Engine Controls Components 5 of 5

Transfer Case Components:




1 - Park/Neutral Position (PNP) Switch (M30)
2 - Heated Oxygen Sensor (HO2S) 2
3 - Vehicle Speed Sensor (VSS)
4 - Transfer Case Neutral Switch (4WD)
5 - Transfer Case 2/4 Wheel Driver Indicator Switch (4WD)
6 - Transfer Case Encoder Motor (4WD)
7 - Evaporative Emission (EVAP) Canister Vent Solenoid
8 - Fuel Tank Pressure (FTP) Sensor
9 - Fuel Pump and Sender Assembly
10 - Fuel Pump
11 - Transfer Case

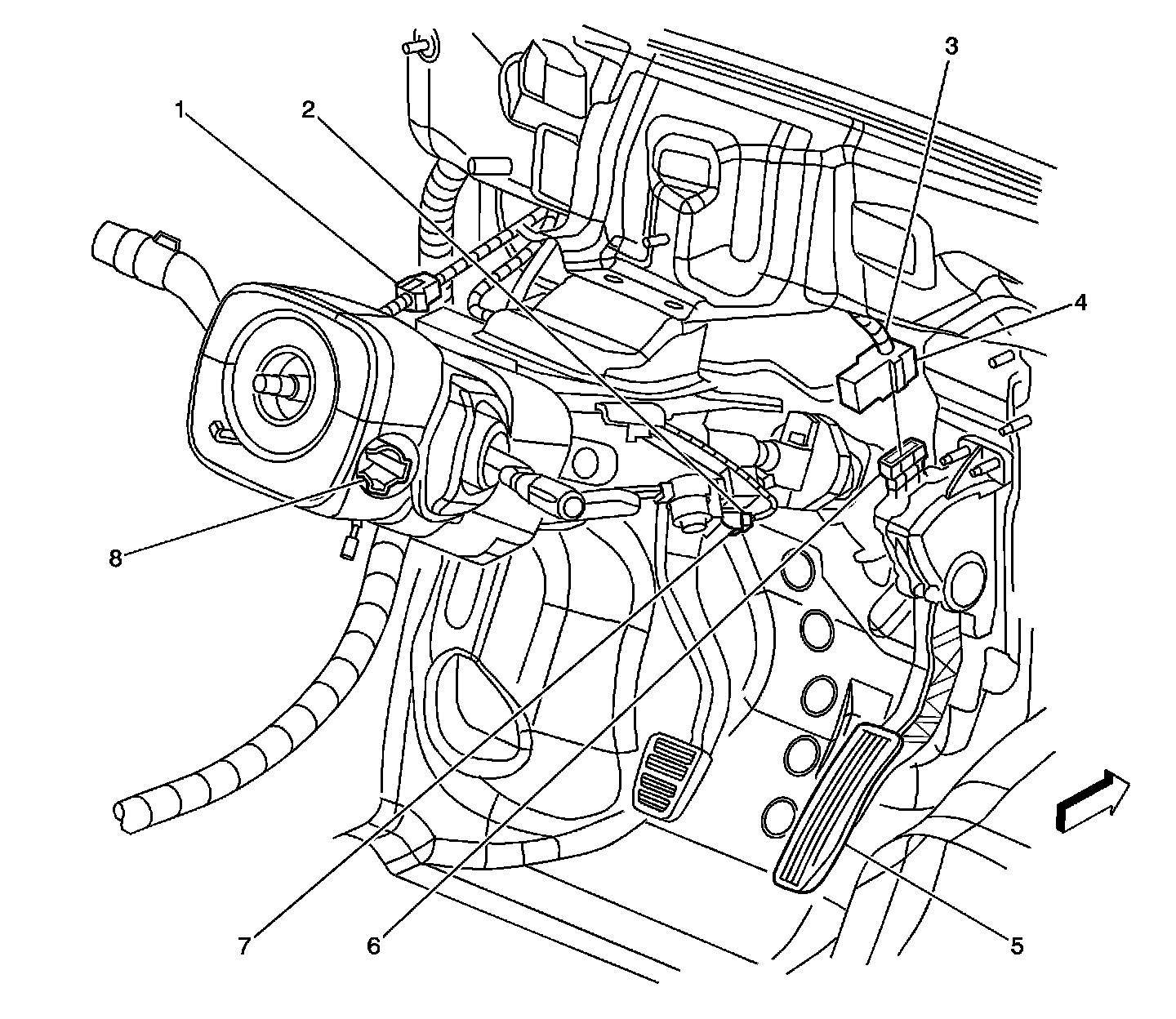

Left Side of I/P

Left Side of I/P:




1 - C275 (Body Harness to Steering Wheel Harness)
2 - A/T Shift Lock Control Solenoid Connector
3 - Body Harness
4 - Accelerator Pedal Position (APP) Sensor Connector
5 - Accelerator Pedal
6 - Accelerator Pedal Position (APP) Sensor
7 - A/T Shift Lock Control Solenoid
8 - Ignition Lock Cylinder Case (Ignition Switch Location)
