Lateral Accelerometer: Diagrams

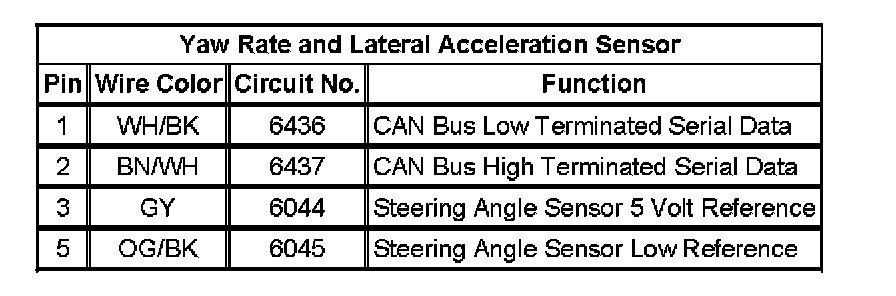

Yaw Rate and Lateral Acceleration Sensor

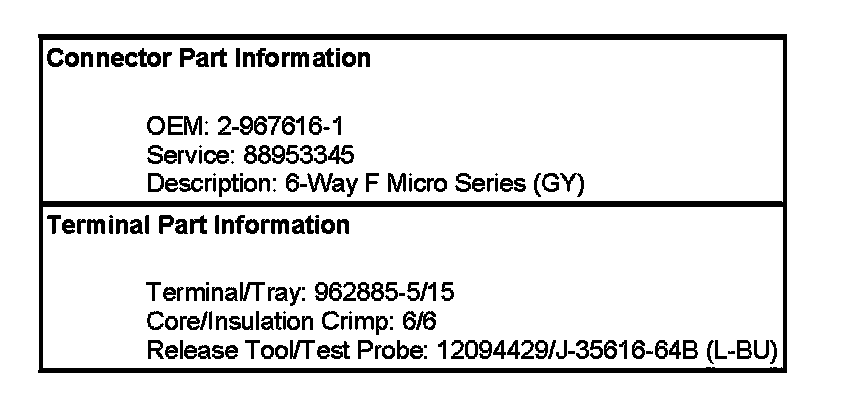

Yaw Rate and Lateral Acceleration Sensor:
